Brand new with high quality
Material: ceramic+metal
Model: A1322

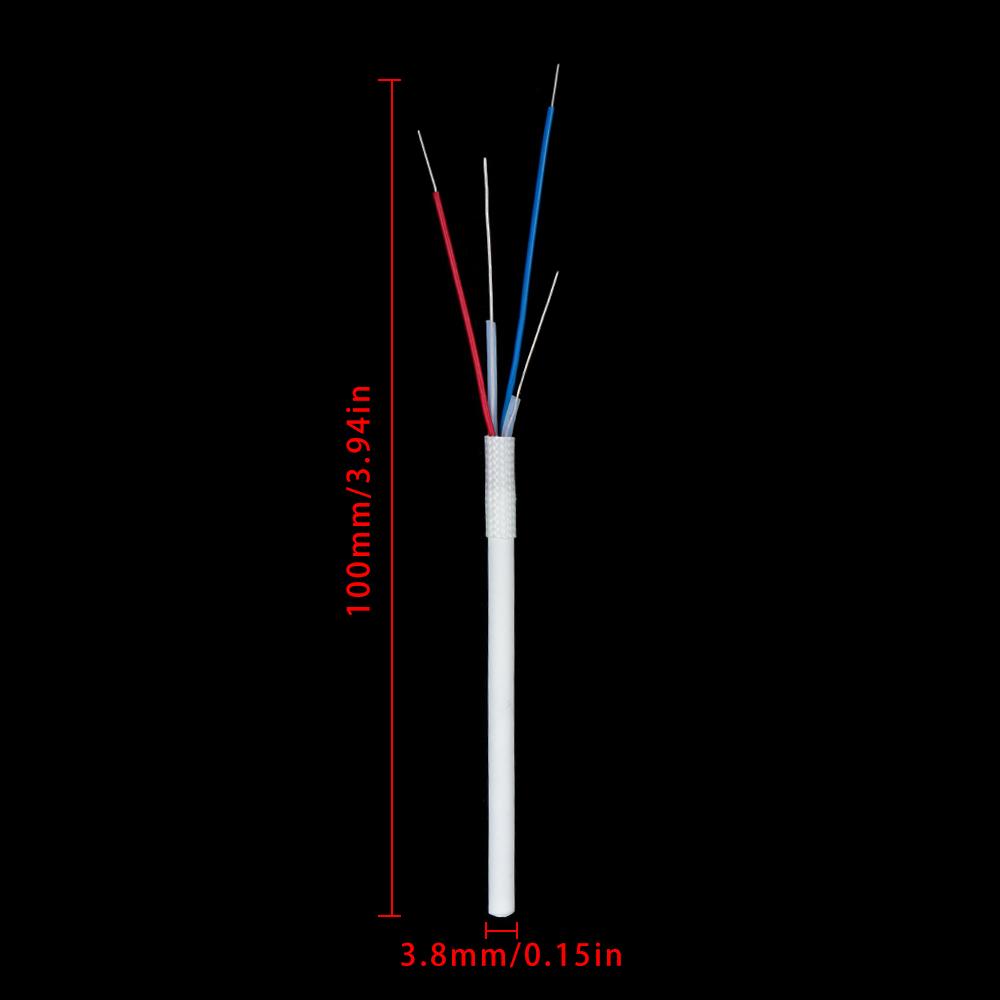

Size: About 100*3.8*3.8mm/3.94*0.15*0.15"
Length of soldering iron head: 39mm/1.54"
Maximum power: 50W/60W
Temperature adjustment range: 200-480(C)
Type: Ceramic heating
Weight: 3g/pc
Quantity: 1pcs
Features:
Wire adapter, with constant temperature function.
24V 50W/60W Four-core wire,the nickel-coated heating wire adopt heat treatment.
Heats the Lifespan Quickly, long.
Usage: applicable for HAKKO welds and soldering iron models: 936, 937, 938, 942, 953, 956, FM-202, 931, 933, 934, 455, 456, 373, 815, 816, 702B and so on.
Can be used for 900M, 900L, 907, 908, 913, 914 and the same Type of Soldering iron or Soldering Station.
Compatible with 1322 hot core welding table and soldering iron.
A1322 core is suitable for all kinds of 936 and the same type of soldering iron (except for A1321)
The nickel-chromium heating wire in the four-core wire is heat-treated. Generally, the heating element that has not been heat-treated on the market has a long life, and it does not work for 3 months continuously. Test OK.
Four leads, power 60W24V
Installation method:
1. The longest 2 wires are for the sensor, and the wires of the sensor are positive and negative, which are set on the circuit board
Then press the long and short connection to OK (the short one is connected to the nearest point, and the long one is connected to the far point)
2. The short 2 wires are heating wires, regardless of positive or negative, just press the long and short connection.
Package Include::
1pc Ceramic Heating core
Notice:
1.1cm=10mm=0.39inch.
2.Please allow 1-2mm error due to manual measurement and make sure you do not mind before ordering.
3.Please understand that colors may exist chromatic aberration as the different placement of pictures.
