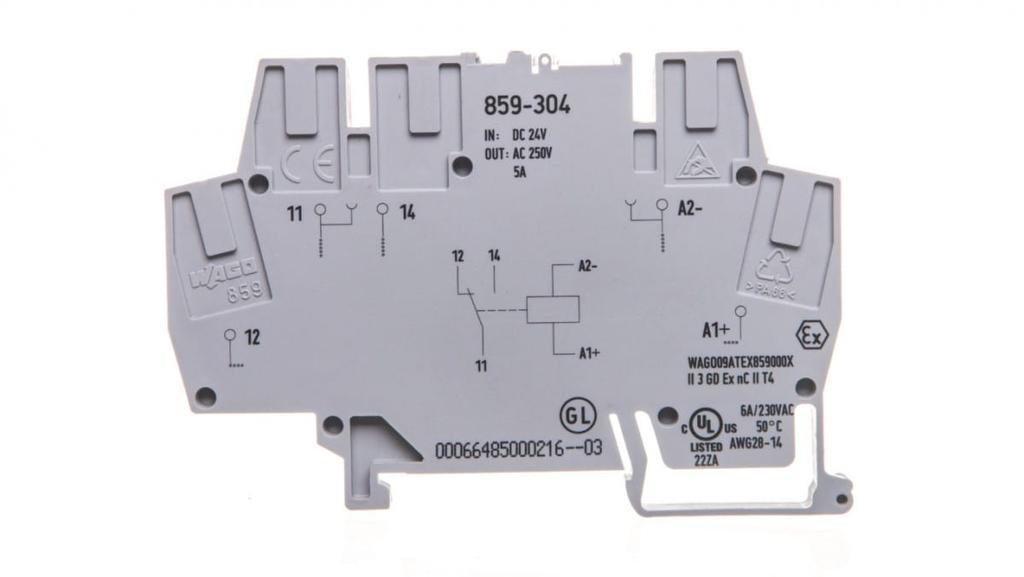

Rail Connector With Miniature Relay 24V DC 1P 859-304

CN: 85364900Length: 92Length [mm]: 91EAN: 4055143606769Manufacturer index: 859-304Color: GrayNumber of levels: 1Number of terminals per level: 5 Material of the insulating element: Thermoplastic materialRated voltage [V] 1: 250Connection position: From above / at the topRated current In [A]: 5Cross-section of the single-core cable to be connected [mm2] to: 2.5Cross-section of the single-core wire to be connected [mm2] from: 0.08Cross-section of the stranded wire to be connected without a ferrule end: 2.5Cross-section of the connected stranded wire with a ferrule terminal: 2.5Cross-section of the connected multi-core cable [mm2] to: 2.5Cross-section of the connected multi-core cable [mm2] from: 0.08Type of element: OtherType of electrical connection 1: Spring clampElectrical connection type 2: Spring clampseries: 859Assembly method: DIN 35 mm Mounting RailWidth: 65Width / grid size [mm]: 6Weight: 0.1600Height: 7Height at the lowest mounting method [mm]: 56Operating temperature range [°C] to: 50Operating temperature range [°C] from: -25
