[Product Description]
A medium-sized multi-purpose tripod head designed for super telephoto lenses and video use, applying video-oriented features such as slide-type quick shoe and counterbalance.
- Provides smooth operation even in low temperatures down to -20°C. Supports vertical shooting reliably, handling all genres of shooting with one unit.
*Please note that it is not compatible with existing quick shoes QB-F51/F51L or SPT-1/2.
〇 Achieves smooth, constant-speed movement essential for video shooting through special viscous grease. Supports super telephoto shooting.
〇 The quick shoe plate and camera screw also slide, allowing for front-back balance adjustment of various equipment.
〇 Equipped with a built-in special spring that works to counteract camera tilt, reducing load during tilting with a counterbalance mechanism.

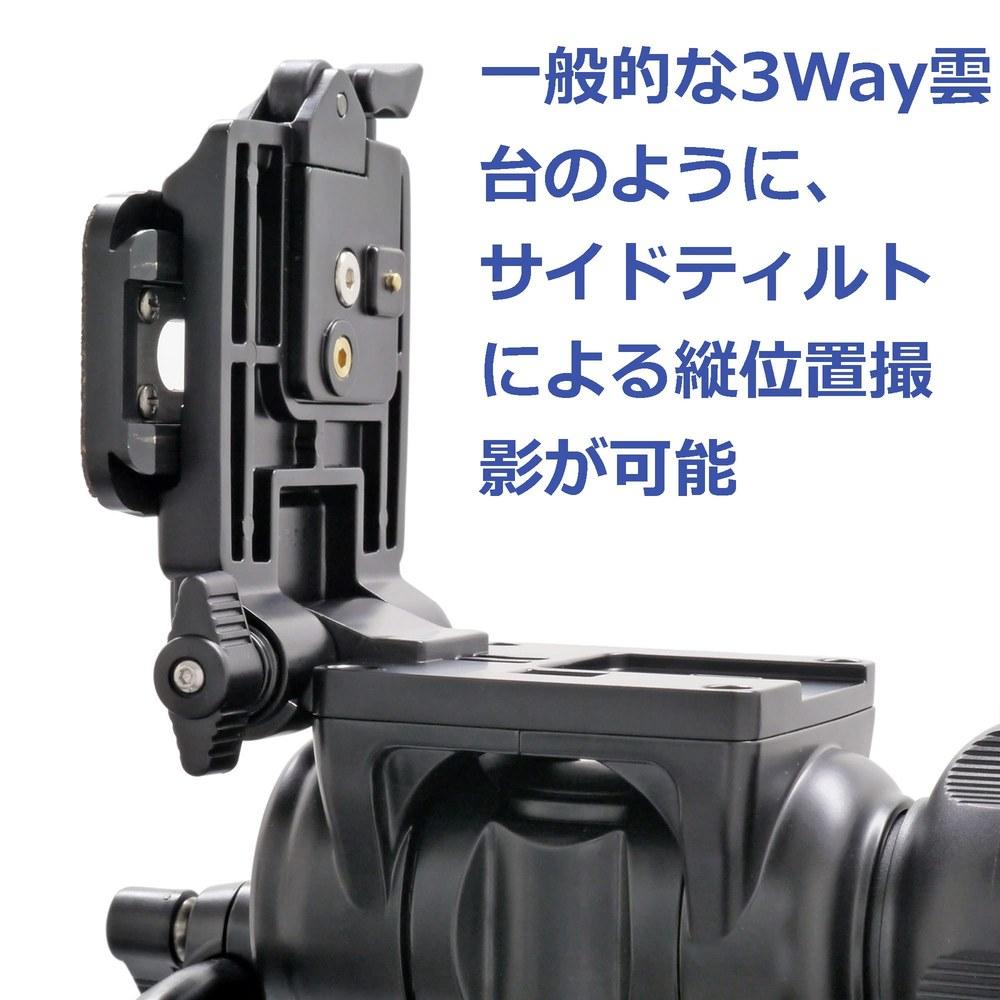

〇 Allows vertical shooting via side tilt, similar to a standard 3-way tripod head.
【Product Specifications】
■ Camera plate: 99×46mm
■ Height: 107mm
■ Bottom diameter: 51mm
■ Weight: 983g
■ Recommended load capacity: 5kg

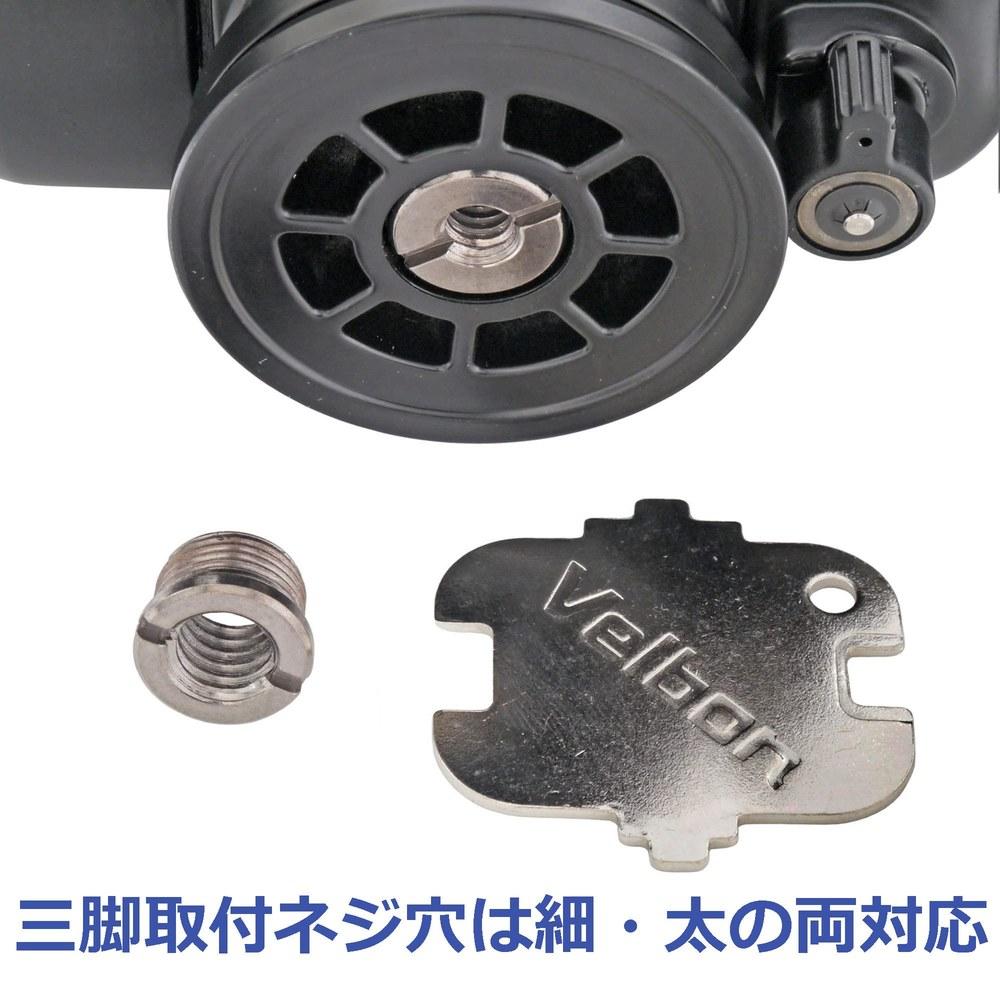

■ Tripod screw hole: Compatible with UNC1/4 and UNC3/8
■ Type: Oil-free tripod head
■ Camera screw: UNC1/4 (fine screw) (with video boss)
■ Quick shoe: QB-F51 N
■ Bubble level: Round type
■ Quick shoe slide: Yes (42mm)
■ Camera screw slide: 47mm (inside quick shoe)
■ Counterbalance mechanism: Yes (fixed at about 3kg) *Center of gravity height 55mm
■ Counterbalance switch: ON/OFF only
■ Operating temperature: -20°C to +40°C
■ Quick shoe slide: Yes (103mm)
■ Camera screw slide: 112mm (inside quick shoe)
A medium-sized multi-purpose tripod head utilizing video features such as slide-type quick shoe and counterbalance, suitable for super telephoto lenses and video use. Supports vertical shooting.
Achieves smooth, constant-speed movement with special viscous grease, essential for video shooting. Supports super telephoto shooting.
The quick shoe plate and camera screw slide, allowing for front-back balance adjustment of various equipment.
Built-in special spring counteracts camera tilt, reducing load during tilting with a counterbalance mechanism.
■ Camera plate: 99×46mm, ■ Height: 107mm, ■ Bottom diameter: 51mm, ■ Weight: 983g, ■ Recommended load: 5kg
