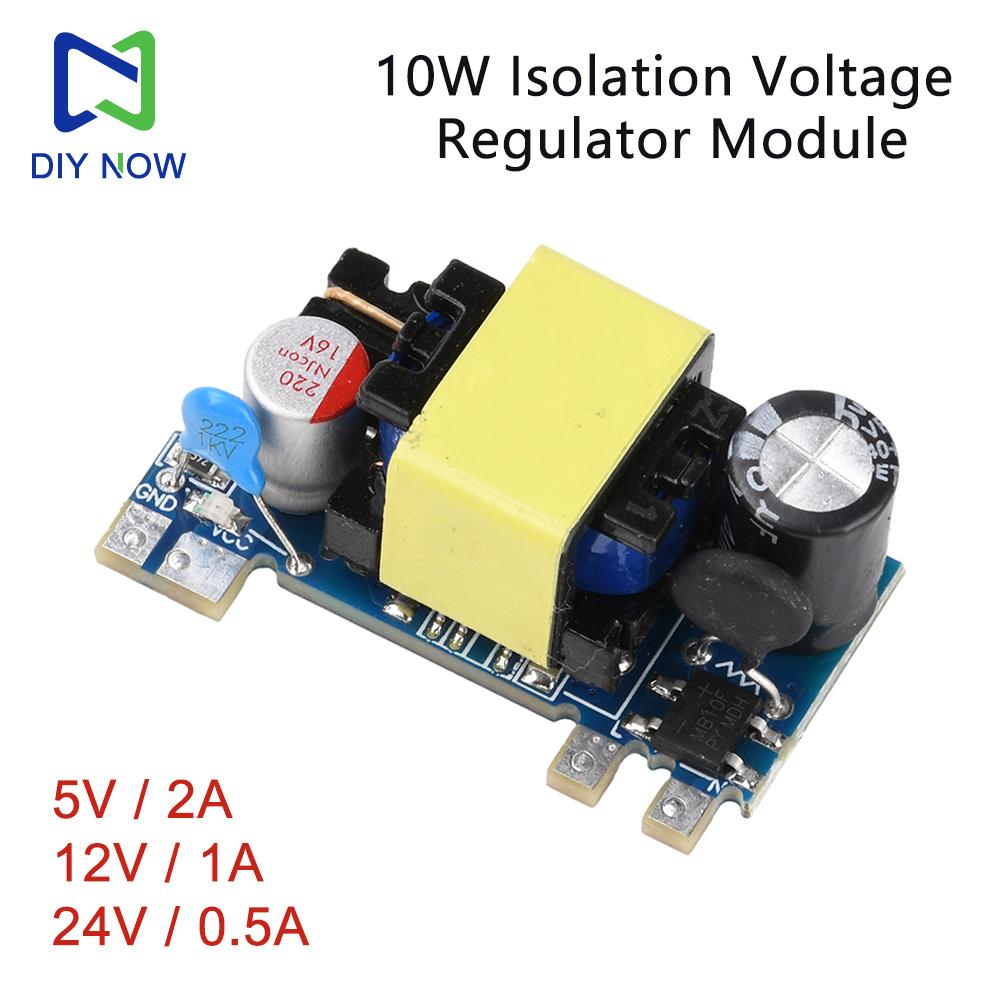

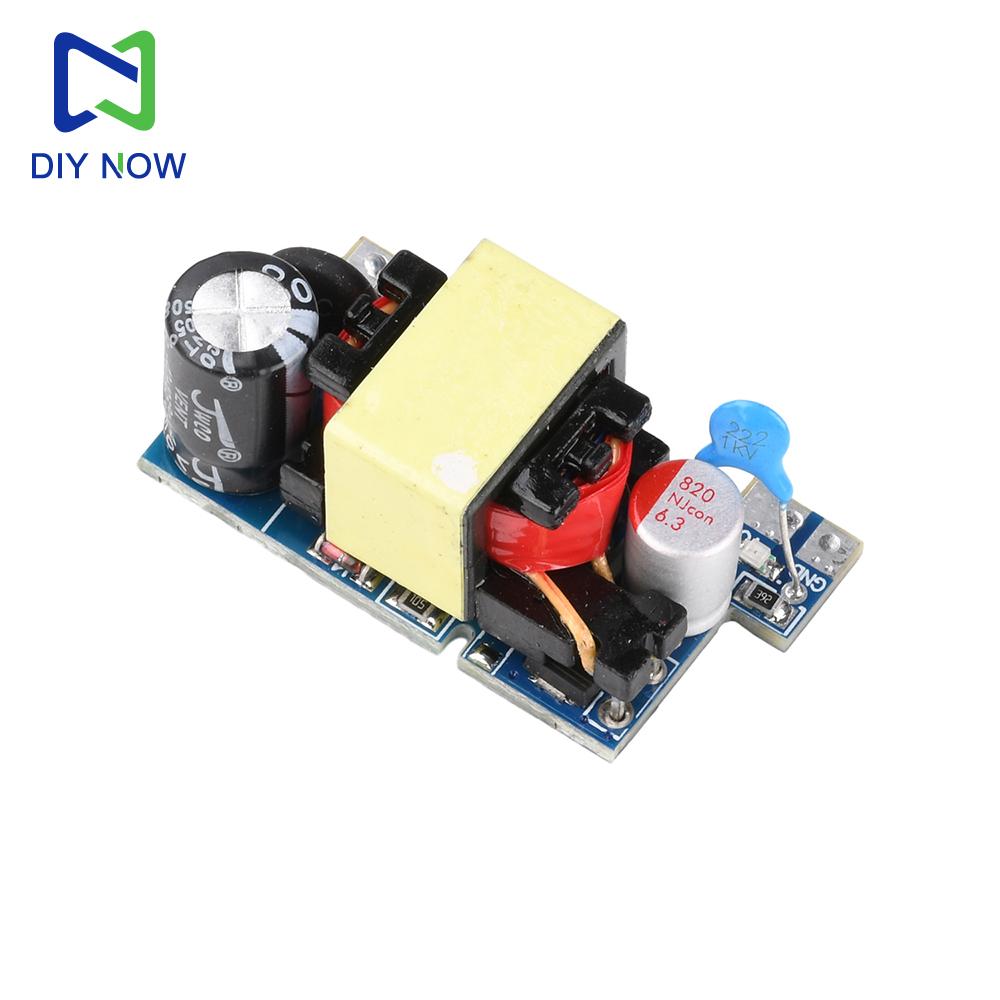

5V 12V 24V Voltage Regulator Modules Isolated Switching Power Supply Modules AC-DC Step-Down Modules Overvoltage Protection

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Dissipation Power : 0.05W Supply Voltage : AC85-265V/DC120-370V Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Operating Temperature : -20℃ to 70℃

Features 1. Wide Input Voltage Range: Supports AC 85-265V / DC 120-370V 2. Multiple Outputs: Selectable 5V/12V/24V precision regulated outputs 3. Output Protection: Overvoltage, overcurrent, overtemperature, short-circuit protection, etc. 4. Compact Size: Multiple modules of the same voltage can be used in parallel 5. Premium Materials: Moisture-proof, dust-proof, corrosion-resistant, operates at -20°C to 70°C Parameter Input Voltage Range: AC 85V-265V/DC 120V-370V (light load), AC 85V-265V/DC 120V-370V (heavy load) No-Load Power: <0.05W Output Characteristics: Enters constant current mode at full load Output Voltage: 5V 2A / 12V 1A / 24V 0.5A (Selectable) Test Resistor: 7Ω for 5V (7Ω*700mA=4.9V) Output Indicator: Red LED Output Protection: Overvoltage, overcurrent, overtemperature, overpower, short-circuit protection, etc. Output Feature: Multiple modules of the same voltage can be connected in parallel to meet high-current demands in compact spaces Package include Module*1 label:yes
