Feature:

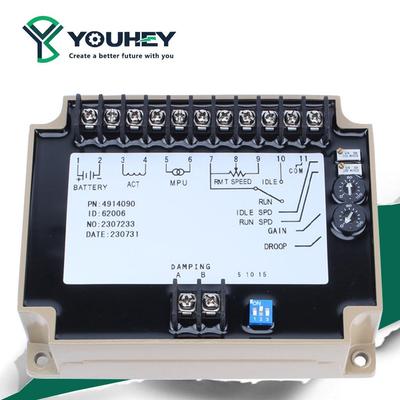

1. APPLICABLE MODEL: 3044196 generator speed controller, suitable for EFC3408324 DYNA2000 DYNA2500 generator models, with good compatibility.
2. CLOSE LOOP CONTROL: Fully electronic closed loop control design, to control engine speed with fast and accurate response to instantaneous load changes.
3. PARAMETER REGULATION: Separate circuit allows adjustment of proportional, integral, and differential value, acting together to provide control, with accurate adjustment.
4. PRE ADJUST DESIGN: The controller is pre adjusted, including speed regulation and working speed, with high power, can directly drive engines above 500KK.
5. GOOD PROTECTION: The governor board provides safe protection against reverse battery voltage, transient pulse voltage, and actuator short circuit faults.
Specification:
Item Type: Generator Speed Controller
Material: ABS
Input Power Supply:
Power Supply Voltage: 12V 24V
Ground Polarity: Negative Electrode
Power Consumption: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A (maximum current can reach 8A)
Speed Sensor Signal: 2120V RMS
Technical Specifications:
Rotational Speed Stability: Better than +0.25percent
Speed Range: 1KHz6.5KHz
Thermal Stability: Maximum +0.7percent
IDLE Regulation: 260+20Hz85percent of rated speed
DROOP Regulation: The minimum position is 15Hz + 6Hz per ampere load current change, and the maximum position is 400Hz + 75Hz per ampere load current change
External Speed Adjustment: + 200Hz (external 1K Ohm )
AUX Input Sensitivity: 148Hz1V, +10Hz, Impedance: 1M Ohm
Environmental Science:
Operating Temperature Range: 40 celsius 85 celsius
Operating Humidity Range: Maximum 95percent
Storage Temperature: 55 celsius 92 celsius
Vibration: 20100HZ, 500mm Per Sec.
Package List:
1 x Generator Speed ControllerAPPLICABLE MODEL: 3044196 generator speed controller, suitable for EFC3408324 DYNA2000 DYNA2500 generator models, with good compatibility.
CLOSE LOOP CONTROL: Fully electronic closed loop control design, to control engine speed with fast and accurate response to instantaneous load changes.
PARAMETER REGULATION: Separate circuit allows adjustment of proportional, integral, and differential value, acting together to provide control, with accurate adjustment.
PRE ADJUST DESIGN: The controller is pre adjusted, including speed regulation and working speed, with high power, can directly drive engines above 500KK.
GOOD PROTECTION: The governor board provides safe protection against reverse battery voltage, transient pulse voltage, and actuator short circuit faults.
