This Top post battery disconnect switch provides dependable control, is rated at 250 amps, and is compatible with DC 12-48V batteries for a variety of uses including cars, RVs, marines, and more.

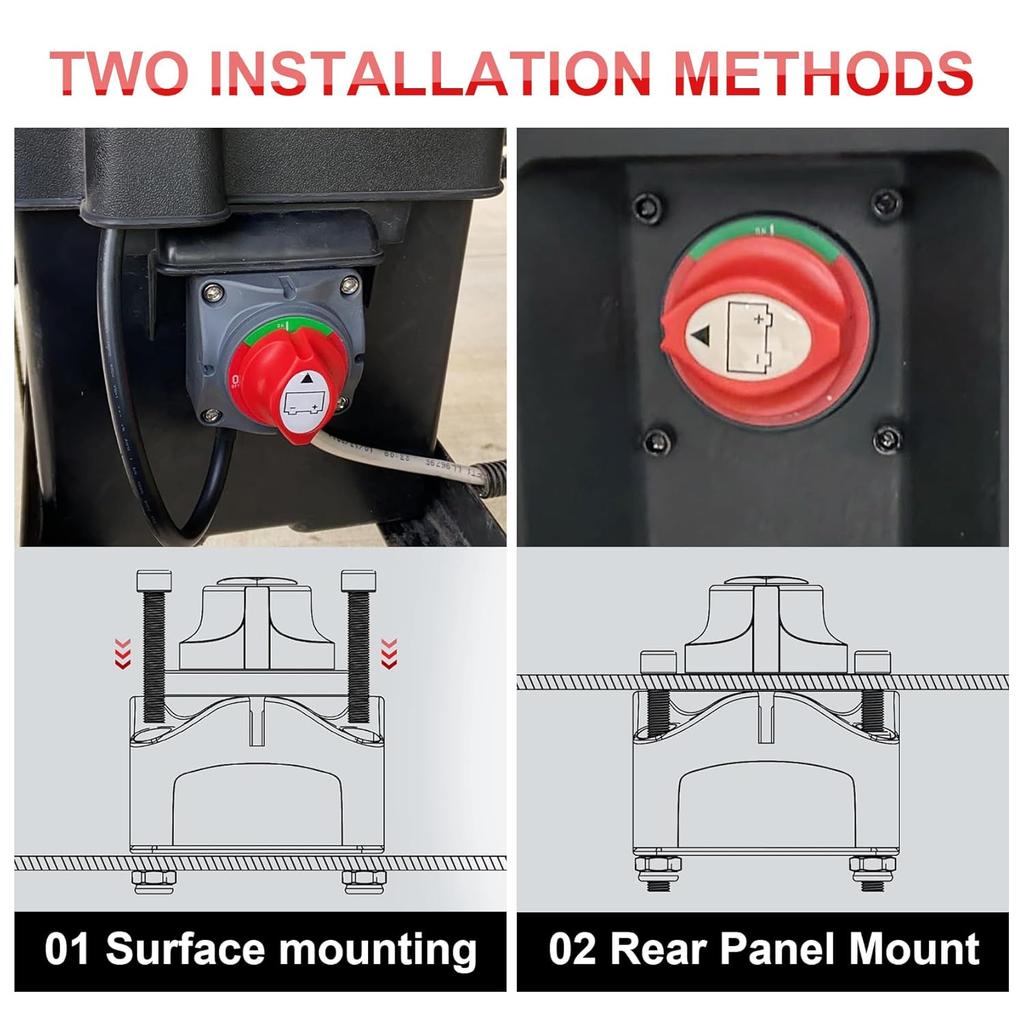

This RV battery disconnect switch comes with 2 copper conductive sheet mounting brackets, which can be directly installed on the positive pole of the battery without additional cables, in line with your operating habits. Compared with the limited design of other products, our unique design also makes your installation more flexible and easy.

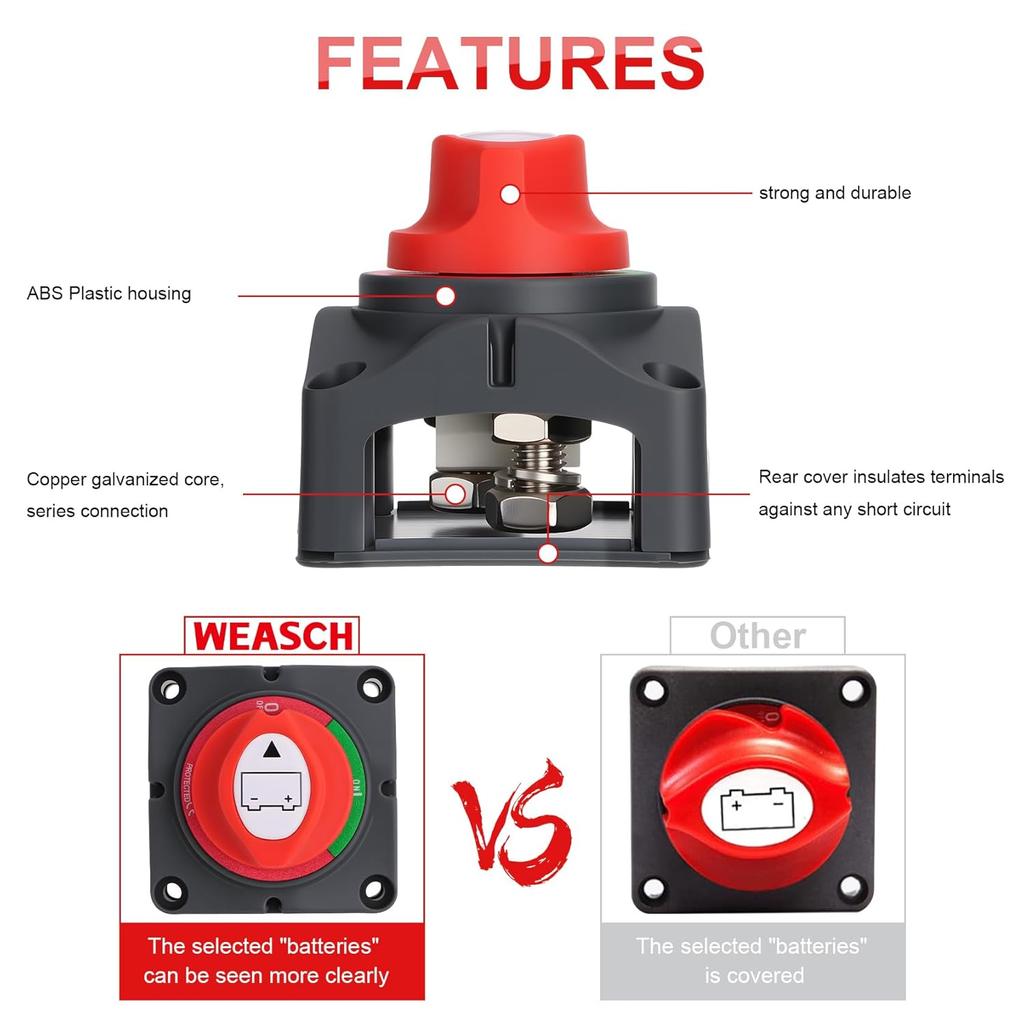

The battery switch is made of high-quality ABS plastic and copper connectors, which is durable and corrosion-resistant, helping to protect your battery from accidental short circuits. It uses M10 tinned copper studs and is equipped with 2 copper conductive sheets, which is safer and more reliable in conductivity
This battery disconnect switch is suitable for DC 12-48V system, used to isolate and protect the electrical system, can be used independently or locked together with other switches. Widely used as a switch for cars, ships, boats, RVs, campers, travel trailers, trucks, ATVs, utility vehicles, battery packs and other electrical equipment

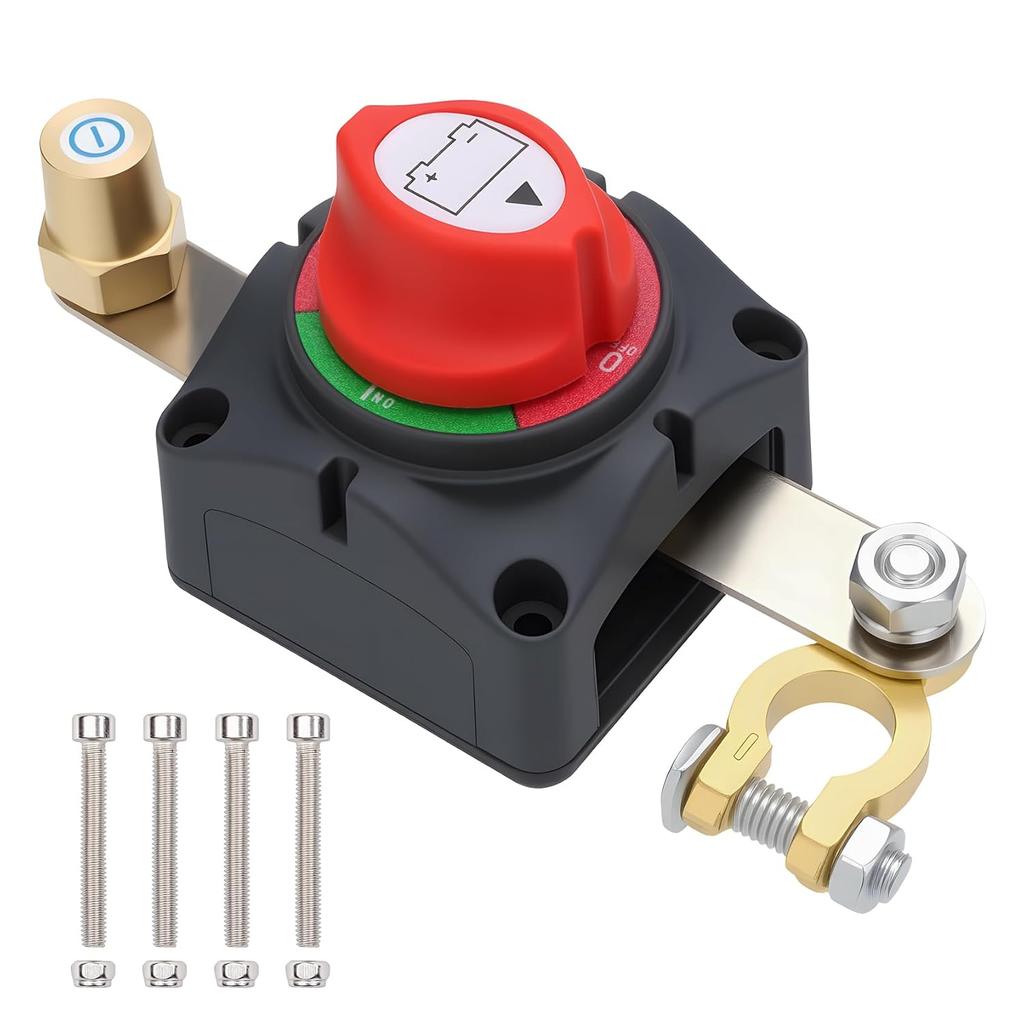

Package: 1 x battery switch, 2 x copper conductive sheets, 1 x positive and negative battery terminal connector, 4 x stainless steel mounting screws

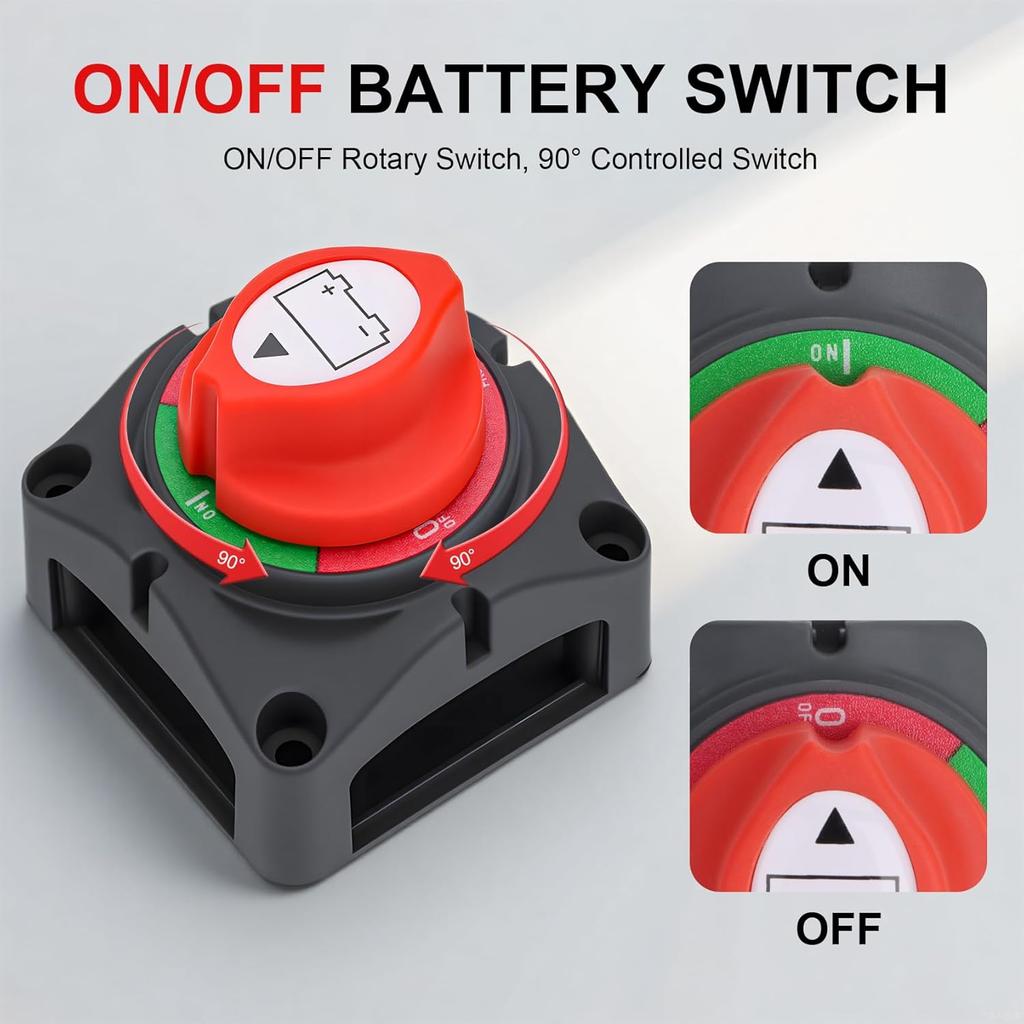

Operation Mode: ON-OFF

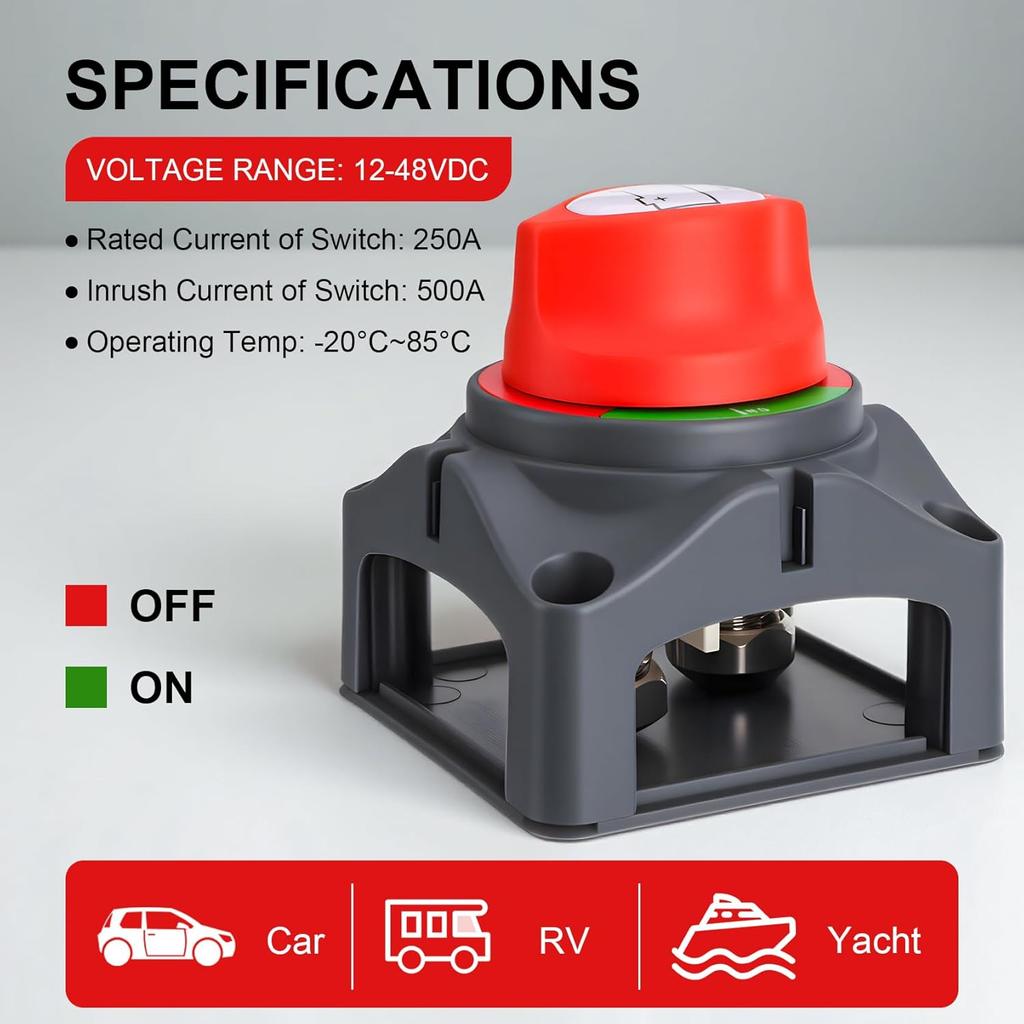

Current Rating: 250 Amps
Operating Voltage: 12 Volts (DC)
Contact Type: Normally Closed
Connector Type: Plug In
Brand: Weasch
Terminal: Screw

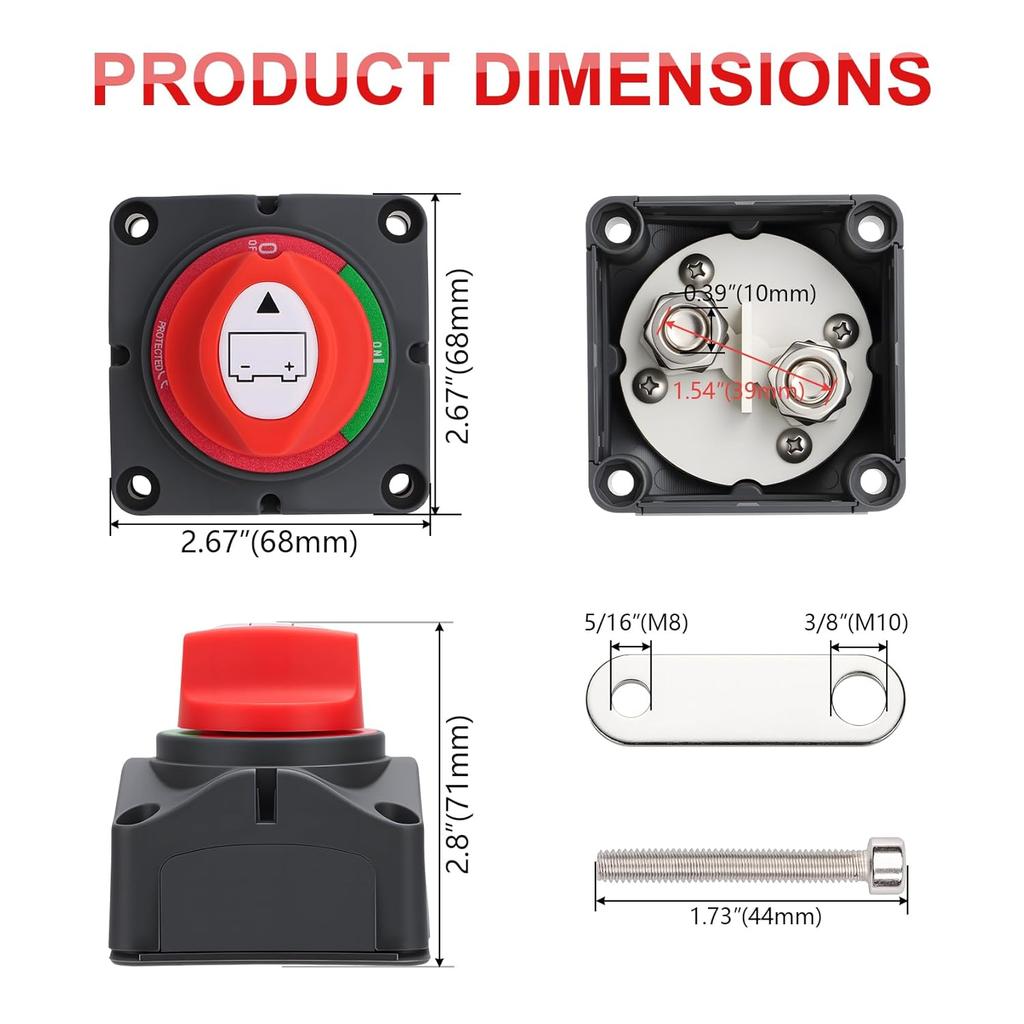

Item dimensions L x W x H: 3.94 x 3.15 x 3.78 inches
Circuit Type: 1-way
Contact Material: Copper
International Protection Rating: IP20
Number of Positions: 1
Upper Temperature Rating: 80 Degrees Celsius
Unit Count: 1.0 Count
Number of Items: 1
Manufacturer: Weasch
Product Dimensions: 3.94 x 3.15 x 3.78 inches
Item Weight: 14.5 ounces
ASIN: B0FH2BF75F
Item model number: 772 250A
Date First Available: July 8, 2025
