5,Low Static Power Consumption:The smaller the voltage difference, the smaller the equalizing current, and the static power consumption does not exceed 20uA, energy saving.
4,Outstanding Performance: Built in improved ultra low internal resistance MOS, balance current 0 to 1.2A, achieving smaller battery voltage difference.
3,Helps Maintain Battery Pack Health:Can correct voltage imbalances within the pack, which may help extend overall service life and reduce maintenance frequency.
2, Automatic Triggering with Defined Thresholds:This module is the balance of adjacent voltage difference, the voltage difference between adjacent batteries reaches more than 0.1V, the chip will trigger the balance work, and stop working until the voltage difference between adjacent batteries is within 0.03V.

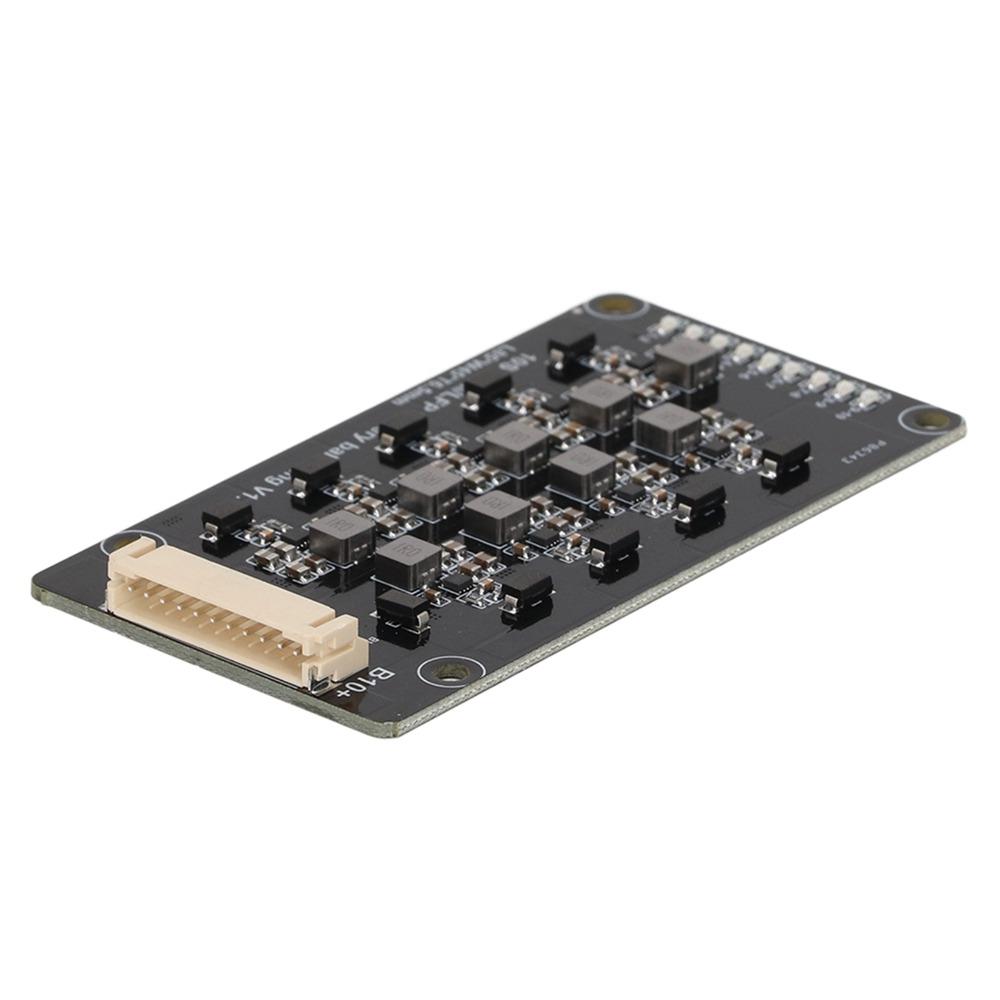

1,Adjacent-Cell Voltage Balancing:This inductive battery balancer helps equalize voltage between adjacent cells in a series-connected battery pack, supporting more consistent performance across the pack.
Specifications:
Item Type: Battery Balancer
Material: PCB
Harness Specification: 22AWG
Color: Black

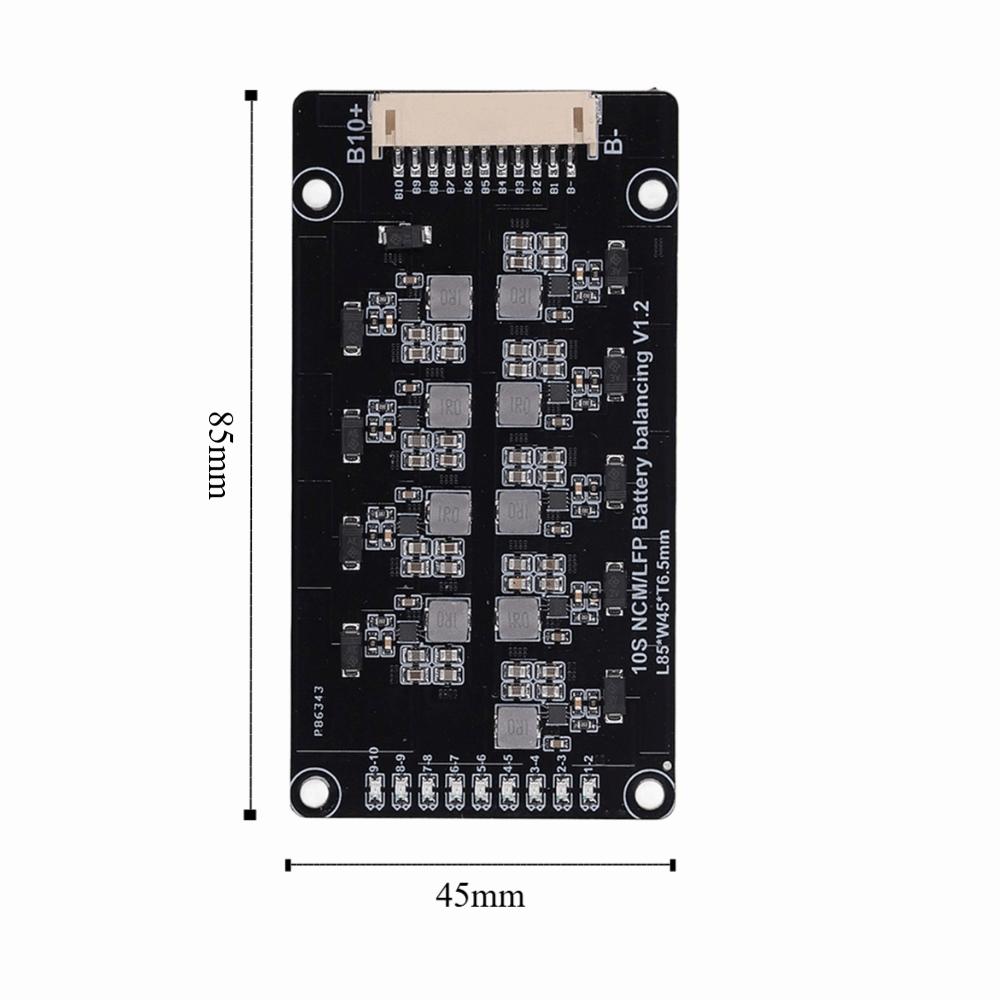

Size: 85 * 45 * 6.5mm(3.35 * 1.77 * 0.26in)
Technical Parameter:
The Working Voltage is 2.0V-4.5V, the Ternary Iron Lithium Battery is Common, and the LTO Lithium Titanate Battery is not Suitable.
Balance current:
The Adjacent Voltage Difference is More Than 0.1V (the Current is About 0.5-0.7A);
The Adjacent Voltage Difference is More Than 0.2V (the Maximum Equilibrium Current is 1.2A);

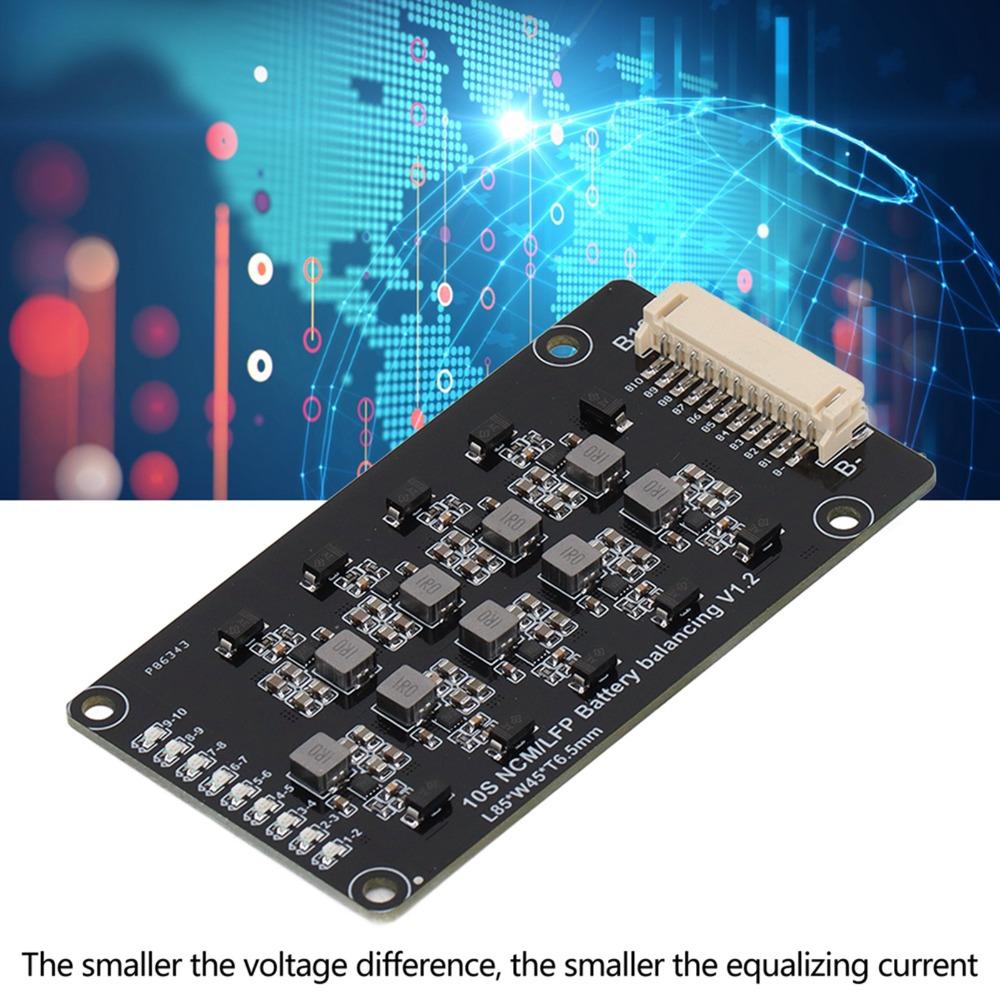

The Smaller the Voltage Difference, the Smaller the Equalizing Current.

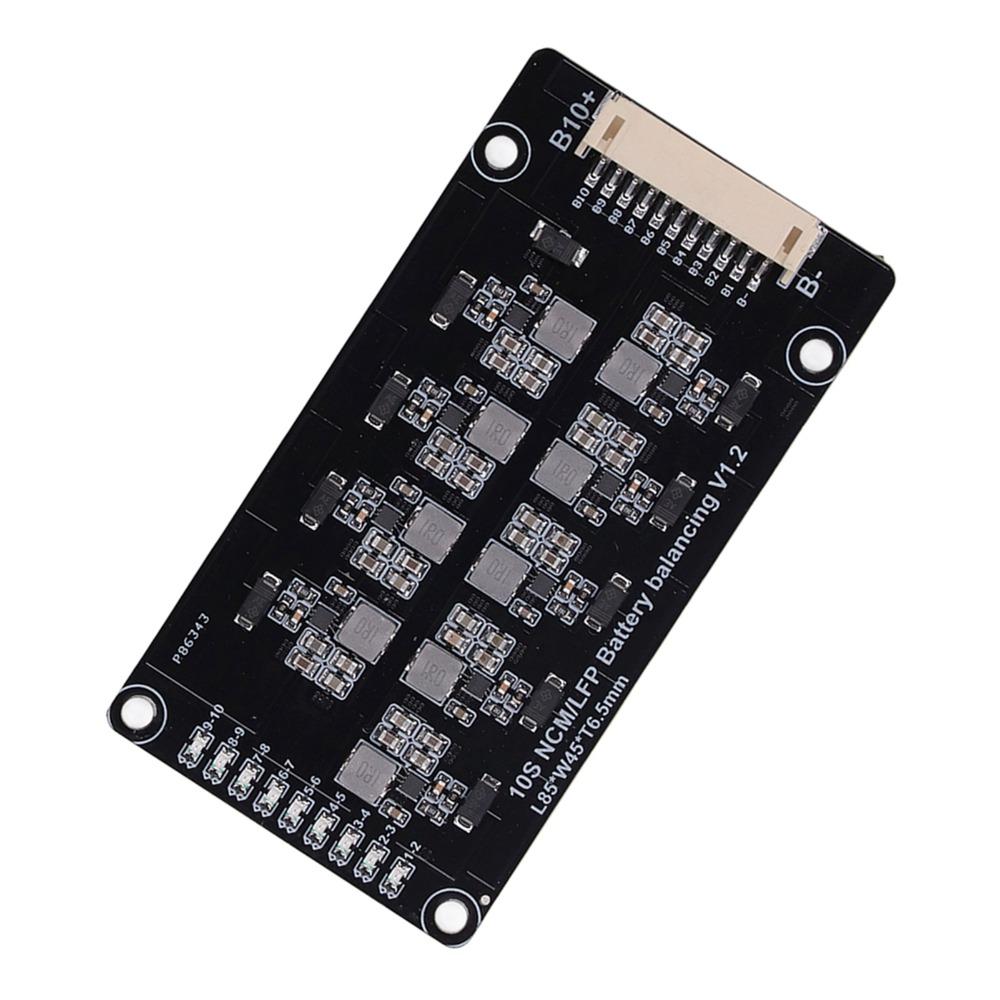

Wiring Definition:
B-, the Total Negative Pole of the Battery Pack (the Negative Pole of the First Battery)
B1, the Positive Pole of the First Battery
B2, the Positive Pole of the Second Battery
B3, the Positive Pole of the Third Battery
B4, the Positive Pole of the Fourth Battery
B5, the Positive Pole of the Fifth Battery
B6, the Positive Pole of the Sixth Battery
B7, the Positive Pole of the Seventh Battery
B8, the Positive Pole of the Eighth Battery

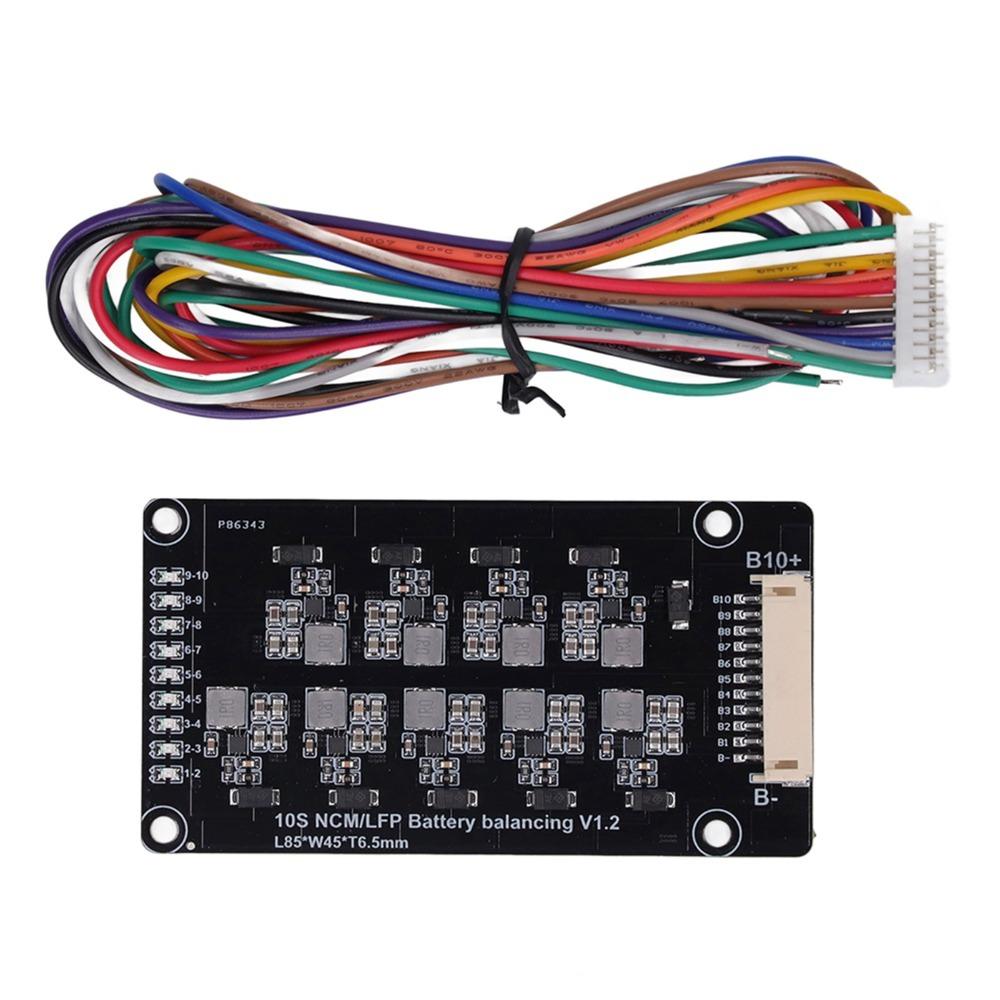

Package List:
1 x Battery Balancer
1 x Cable
Note:
1. Adjacent equalization works and cannot be used as a maintenance tool.
2. To connect to the battery, use it together with the lithium battery protection.
3. The voltage difference generated by charging and discharging will trigger the work of the equalizing plate to achieve energy transfer equalization.
