Features
The product supports four-channel capacity and internal resistance measurement
Supports separate charging and discharging, and supports up to 9 charge and discharge cycles in automatic mode
Each channel is independent of each , set separately, and runs independently without interfering with each
18650 battery holder uses a compact battery holder, suitable for flat-head battery measurement
Fan active heat dissipation Supports overheating protection
Uses DC two-wire method to test internal resistance
Note: does not support lithium iron phosphate battery charging
Basic parameters
Working voltage: DC5V
Applicable batteries: meet the stop discharge voltage of 2.5~3.5V, 2.8V start~4.2V fully charged batteries are applicable

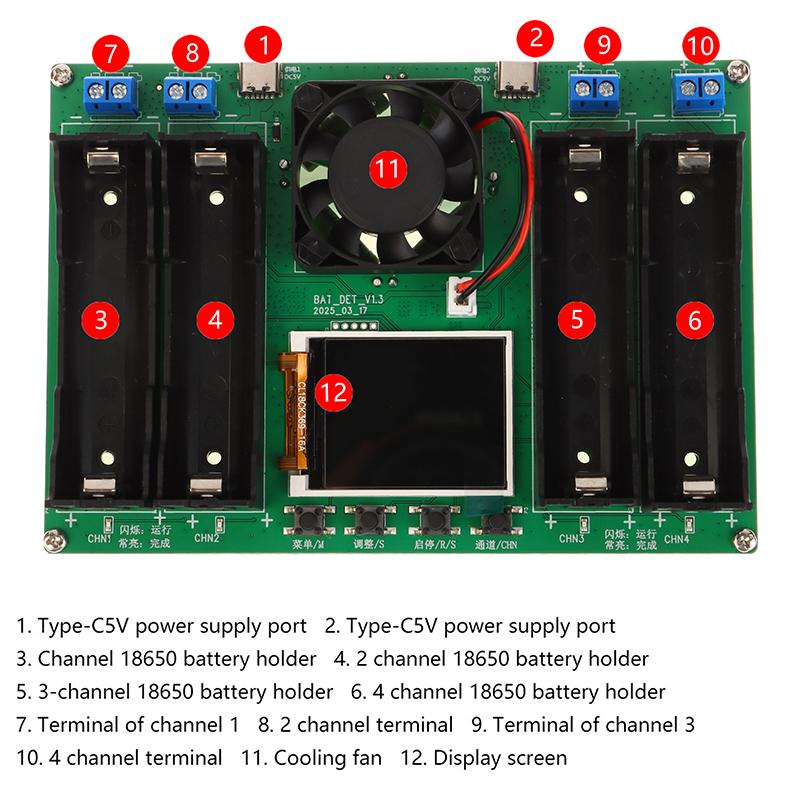

Power supply interface: two-way Type-C power supply interface (power supply and power cord are provided by yourself)

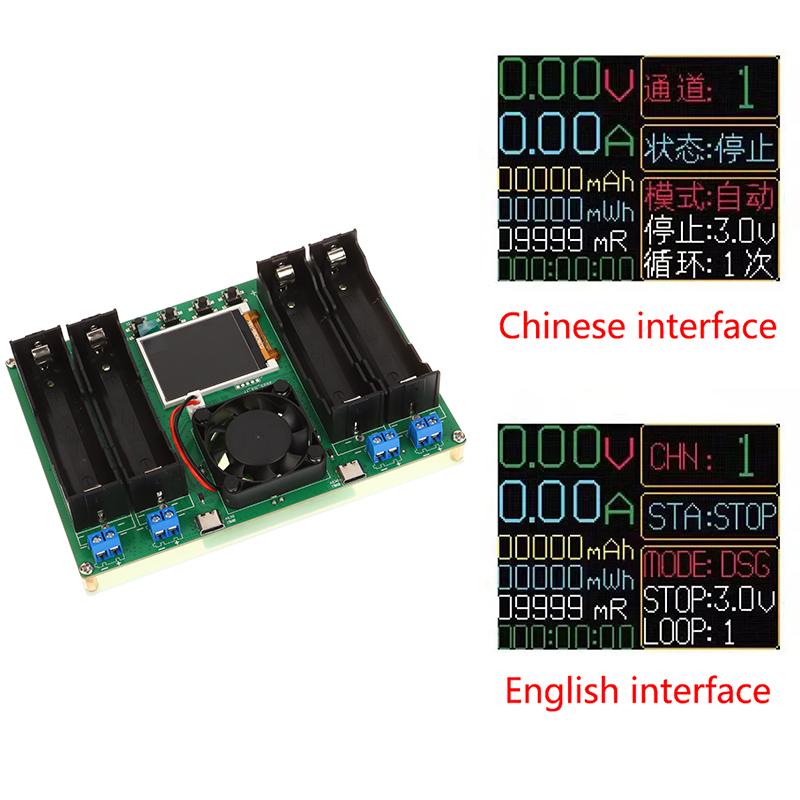

System language: English/Chinese switchable
Test quantity: 4-way charge and discharge measurement
Internal resistance measurement: Supported, DC two-wire method is used to test internal resistance
Charging function: Supported, charging is automatically cut off when full (does not support charging of lithium iron phosphate batteries)
Discharging function: Supported, automatically stops when conditions are met, discharge current is not adjustable
Automatic charge and discharge: Supported, the battery is fully charged at the end of automatic mode
Cyclic charge and discharge: Supported, 1~9 cycles are adjustable (only supported in automatic mode)

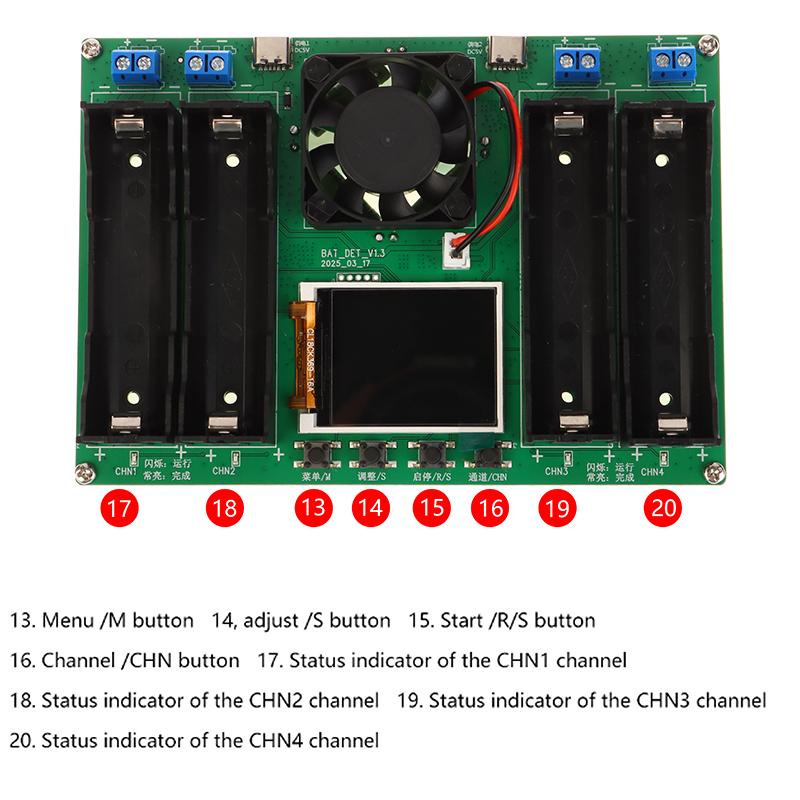

Status prompt: Supported
Cooling method: fan active cooling
Overheat protection: Supported
Discharge stop voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1 V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 levels are adjustable
Discharge current: maximum current of about 1A, cannot be adjusted, does not support self-modification
Charging voltage: controlled by a dedicated battery charging chip, maximum charging of about 1A, full power voltage 4.2V
Power-off save: only save the setting parameters, not the metering data

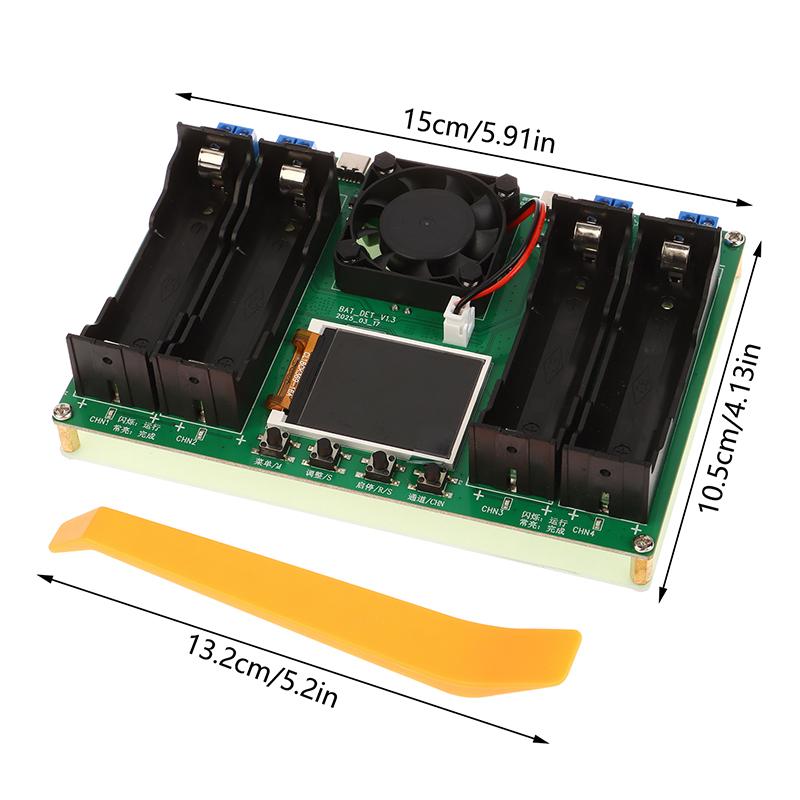

Product size: 150×103×36mm
Packaging size: 182×112×50mm
Package list:
18650 battery capacity internal resistance tester X1
