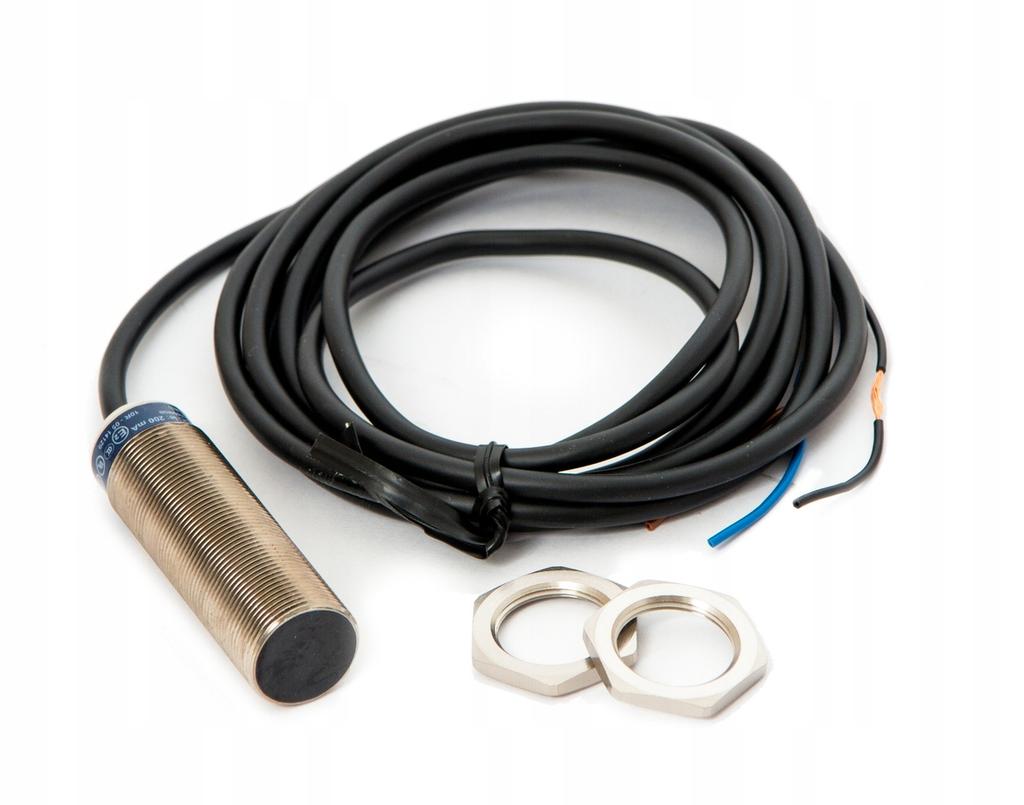

OsiSense XS M18 Inductive Sensor with PNP 1NO Output, 12/48V DC, 2m Cable

M18 inductive sensor with PNP 1NO output, 12..48V DC, cable 2m XS618B1PAL2Basic parametersProduct range :OsiSense XSsensor type : Inductive proximity sensorsensor name : XS6sensor design :  Cylindrical version M18Size : 62 mmindoor detector mounting possible : Face enclosedwiring method : 3-wire[Sn] rated detection distance : 8 mmdiscrete output function : 1 NO output circuit type : DCdiscrete output type : PNPElectrical connections : Cablelength : 2 mRated supply voltage [Us] : 12...48 V DC with reverse polarityprotection Switching capacity in mA  : IP protection :  IP68 double insulation according to IEC 60529IP69K according to DIN 40050Supplementary parameters thread type : M18 x 1detection face : Frontfront material :  PPShousing material : Brass nickel platedmeasuring range : > 4...8 mmworking zone : 0... 6.4 mmhysteresis : 1...15% Srcable core cross-sections : 3 x 0.34 mm2wire insulation material : PvRLED light informing about the status of the connector : Output state: 1 LED light (yellow)Limit supply voltage : 10... 58V DCConnection Frequency: Threaded Length: 52mm Length: 62mm
