[Product Description]

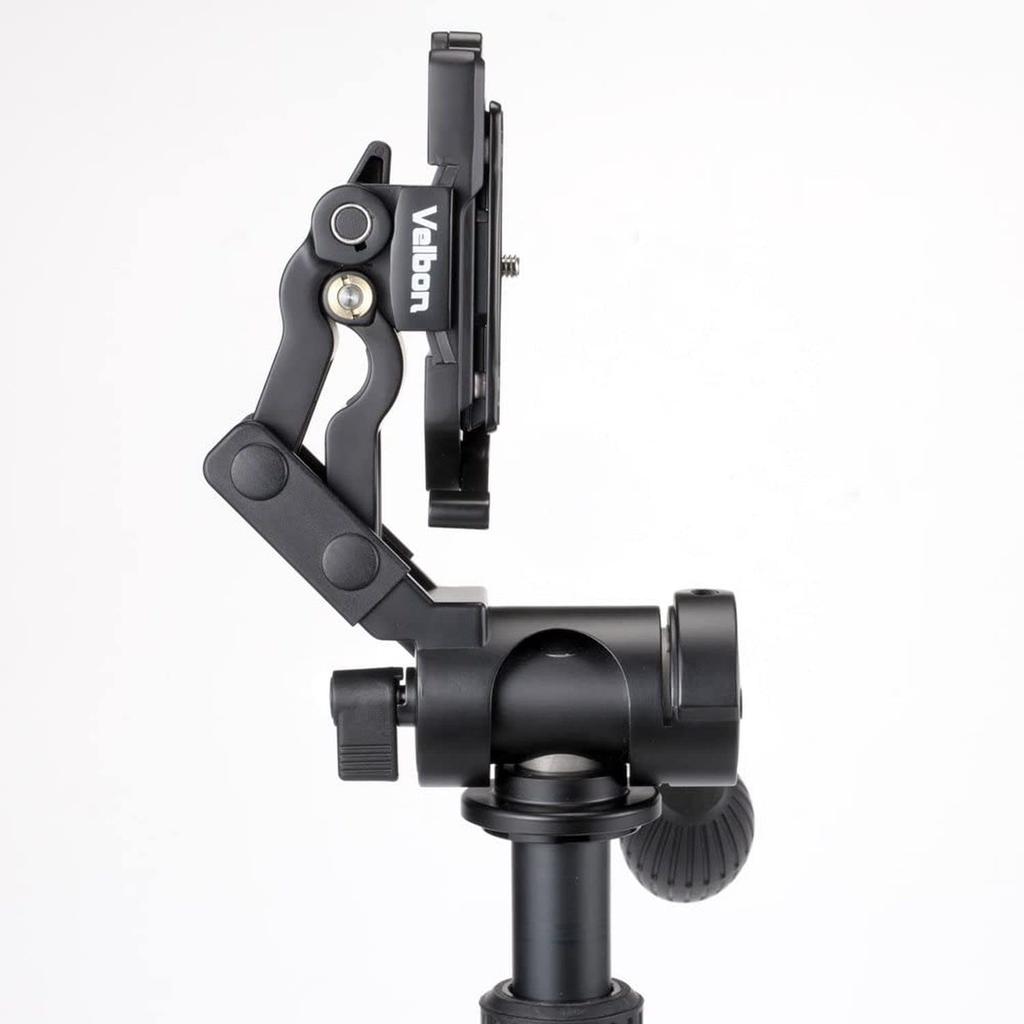

This is a new type of head equipped with a revolving mechanism that allows quick conversion to vertical composition while minimizing optical axis deviation. When shooting vertically with a lens that has no tripod mount, the camera's center of gravity remains close to the tripod's center, ensuring stability.
*Optical axis deviation varies depending on the camera shape.
● This innovative mechanism minimizes optical axis deviation and enables quick vertical composition adjustment. During vertical shooting, the camera's center of gravity stays near the tripod center, maintaining stability and reducing significant composition corrections.

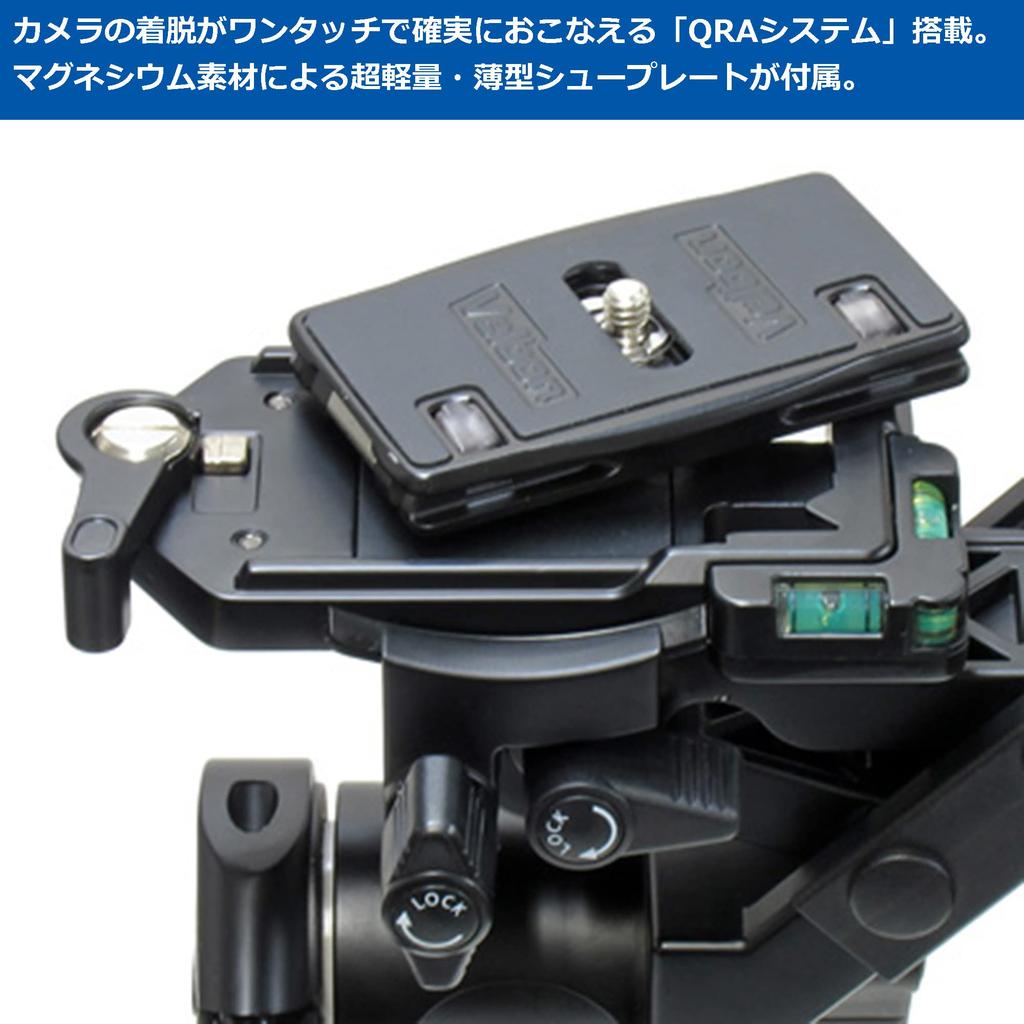

● The 'QRA System' allows one-touch, secure attachment and detachment of the camera. The ultra-lightweight, slim quick-release plate can be left attached to the camera at all times without inconvenience.
● Equipped with a 2-Way level that indicates not only horizontal position in the left-right direction but also vertical position.
● Made from magnesium, a lightweight metal used in the main body and quick-release plate, with a specific gravity of 1.7—about two-thirds that of aluminum and less than one-quarter that of iron—making it the lightest among practical metals. It also offers excellent strength-to-weight ratio, dimensional stability, and vibration absorption.
【Product Specifications】
■ Camera Plate: 77×39mm
■ Height: 125mm
■ Bottom Diameter: 50mm
■ Weight: 650g
■ Recommended Load Capacity: 3kg
■ Tripod Mounting Screw: Compatible with UNC1/4 and UNC3/8
■ Type: Revolving Head
■ Camera Screw: UNC1/4 (Fine Thread)
■ Quick Release Shoe: QRA-35L Black
■ Level: 2-Way Level
This head features a revolving mechanism that minimizes optical axis deviation and allows quick vertical composition adjustment. The 'QRA System' ensures secure, one-touch camera attachment and detachment. The ultra-lightweight, slim quick-release plate can be left attached to the camera at all times. It is equipped with a 2-Way level indicating both horizontal and vertical positions. Made from magnesium, a lightweight and durable metal, it offers excellent strength, stability, and vibration absorption. Specifications include a camera plate of 77×39mm, height of 125mm, bottom diameter of 50mm, weight of 650g, and a recommended load capacity of 3kg, with both UNC1/4 and UNC3/8 screw compatibility.
[Important Notice - For Overseas Customers]
Thank you for purchasing this product. Before using it overseas, please carefully read the following important notices.
1. Laws, Regulations, and Safety Standards
This product complies with Japanese safety standards. Before use in your country, please check its compliance with local laws, regulations, and safety standards.
Certain product categories (electronics, cosmetics, food, etc.) may require certification in the importing country.
2. Regarding Electrical Products
【Voltage Compatibility】
When using electrical products, please note that they are designed to match Japanese voltage specifications (90-110V). Using them with a different voltage may cause malfunction.
【Plug Type】
Our products use Japanese plug types (Type A or Type B).
Please use a conversion adapter as needed.
【Important Notes Regarding Transformers and Adapters】
Transformers adjust the voltage to match the requirements of the equipment.
Conversion adapters only change the plug shape and do not adjust the voltage.
Using only a conversion adapter without a transformer may damage the product.
[Regarding Liability]
We are not responsible for any malfunctions or damage caused by improper use, such as operating the product without a transformer.
3. Language and Manual
Product instructions and displays may be in Japanese only.
An English version of the manual can be downloaded from our website.
4. Regarding Product Returns and Exchanges
Please note that if you wish to return or exchange a product, you will be required to submit a video of the unpacking process.
