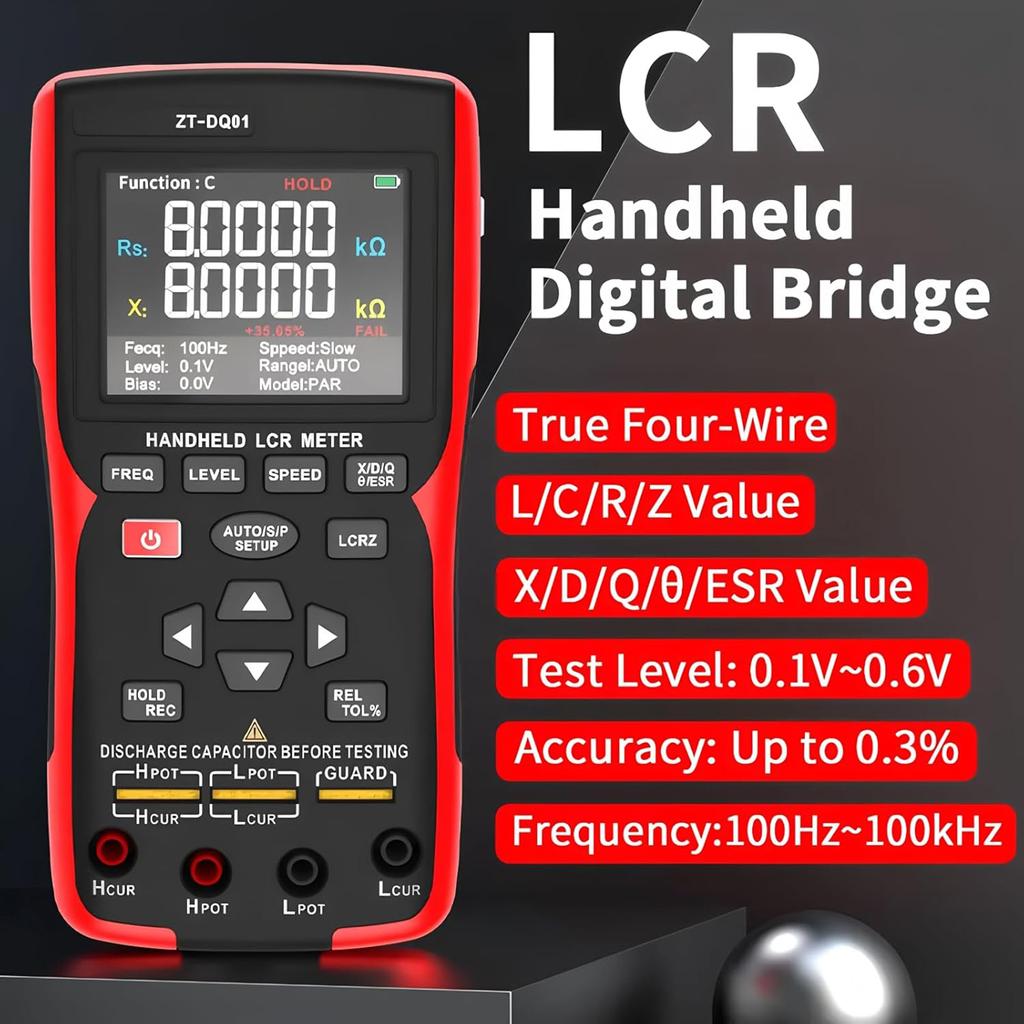

Feature:
1. True 4 wire LCR battery tester: can be measured using a 4 wire Kelvin clip (not included). Measurement parameters: Main parameters: L C R Z, Sub parameters: X D Q Angle of plane ESR
2. Versatile Frequency Modes: 5 automatic frequency modes from 100Hz to 100kHz, adjustable test voltage (0.1V 0.6V), suitable for capacitors and inductors.

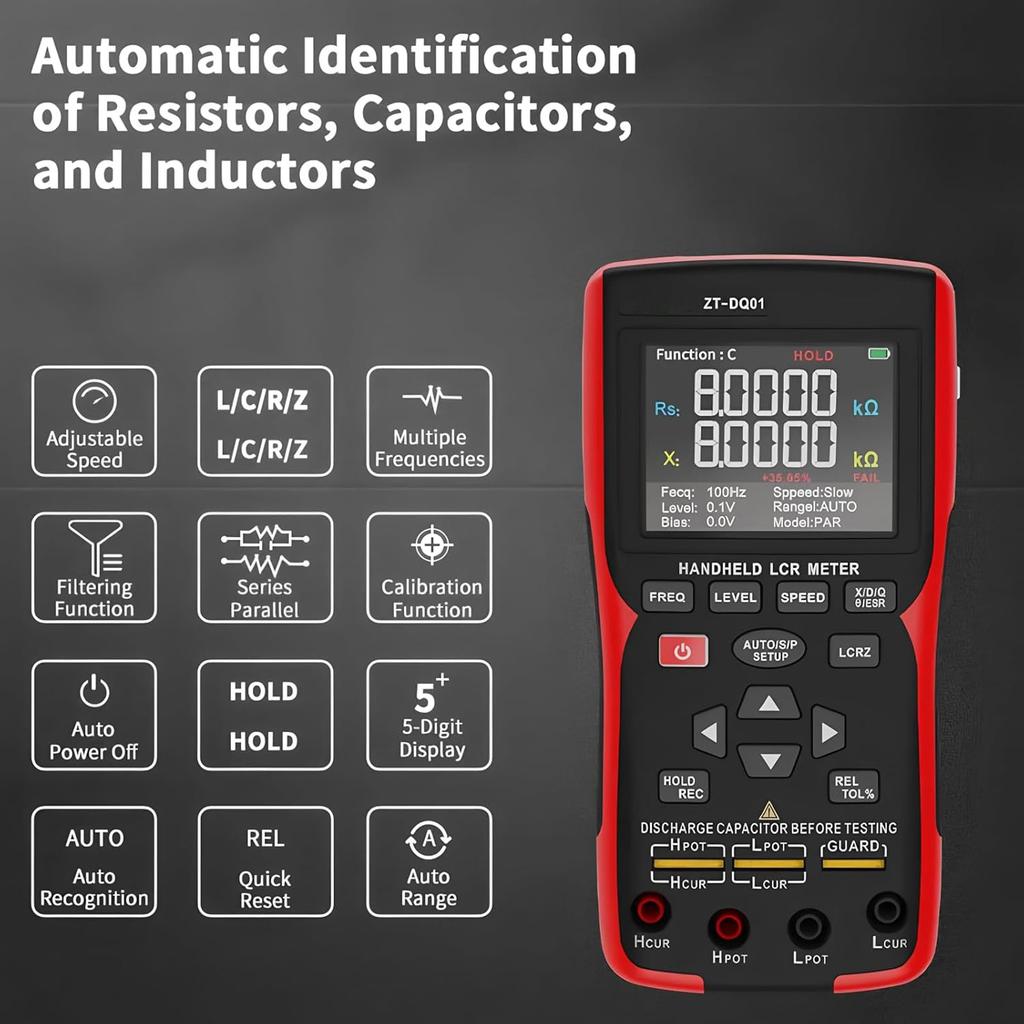

3. Automatic Indentification: Automatically recognizes resistor, capacitance, and inductance, improving work efficiency. Equipped with a 2.8 inch full view color screen, adjustable backlight brightness, and easy data reading for multiple parameters. Sound and light alarm for quick judgment of component compliance with design specifications.
4. Long lasting Rechargeable Battery: 2000mAh large capacity battery for up to 13 hours of continuous use. Set auto power off time to save energy.
5. Application: Widely used in power, instrumentation manufacturing, automotive industry, metallurgy, railways, etc.
Specification:
Main Parameters: Inductance (L), Capacitance (C), Resistance (R), Impedance (Z)
Sub Parameters: X, D, Q, Angle of plane, ESR
Equivalent Modes: Series, Parallel
Inductance Range: 0 100H
Capacitance Range: 0 100000uF
Resistance Range: 0 10 m Ohm
Test Frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz
Test Level: 0.1V, 0.3V, 0.6V
Highest Accuracy: 0.30percent
Measurement Speed: 1 time s, 2 times s, 4 times s
Output Impedance: 100 Ohm
Language: Chinese, English
Brightness: 25percent , 50percent , 75percent , 100percent adjustable
Auto Shutdown: 15 minutes, 30 minutes, 45 minutes, 60 minutes off
Buzzer: On, Off
Bridge Calibration: Short Circuit, Open Circuit
Battery Life: 13 hours
Battery: Rechargeable Battery 2000mAh x1 (shipped with built in battery).

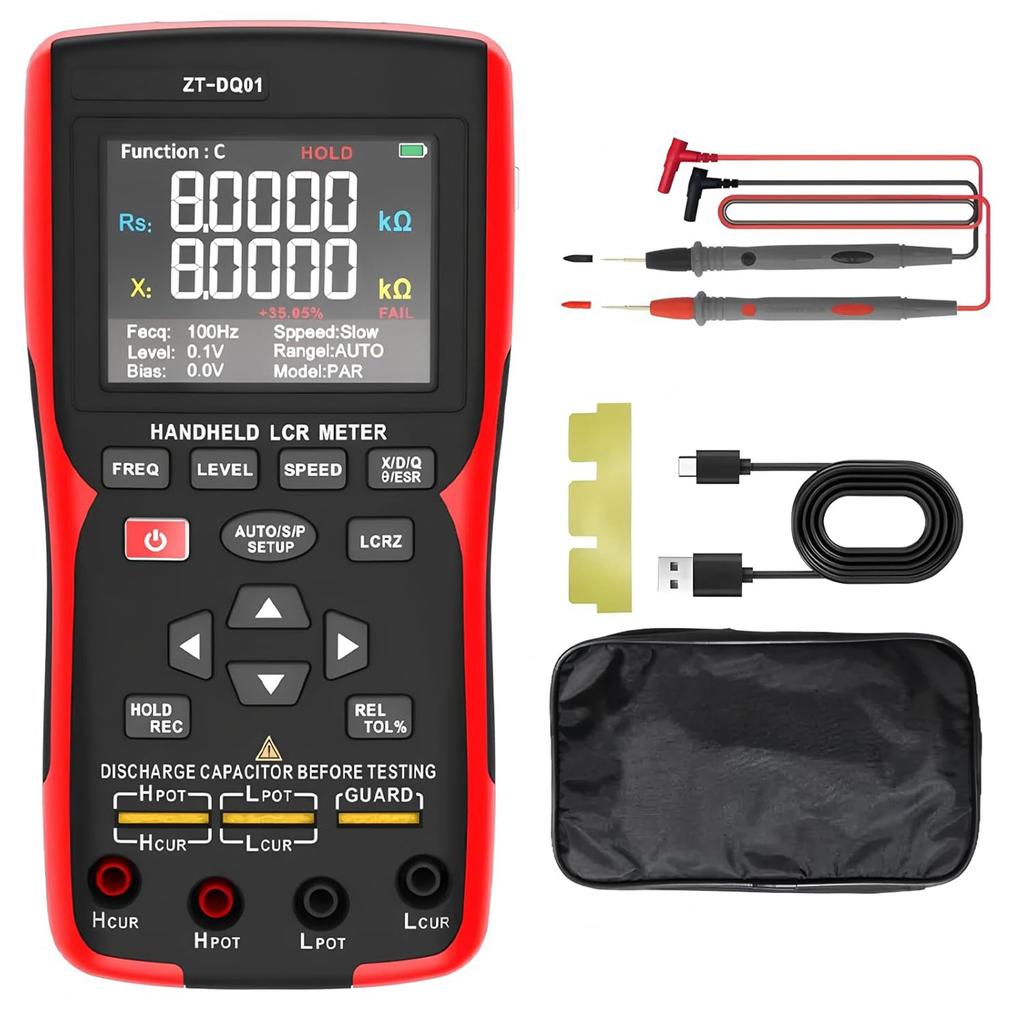

Package List:
1 x Digital Bridge
1 x Metal Plate

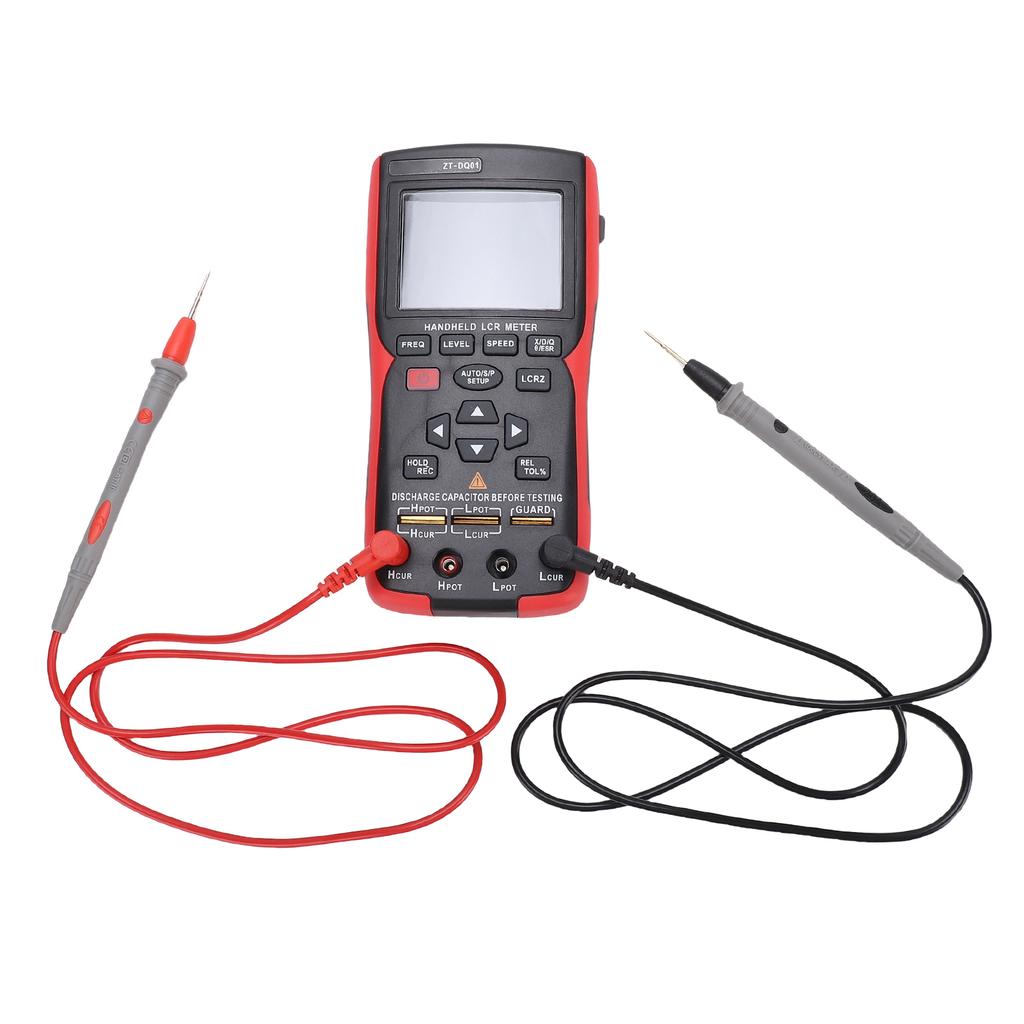

1 Pair x Test Pen
1 x Storage Bag
1 x Charging Cable
1 x User Manual
Note:
