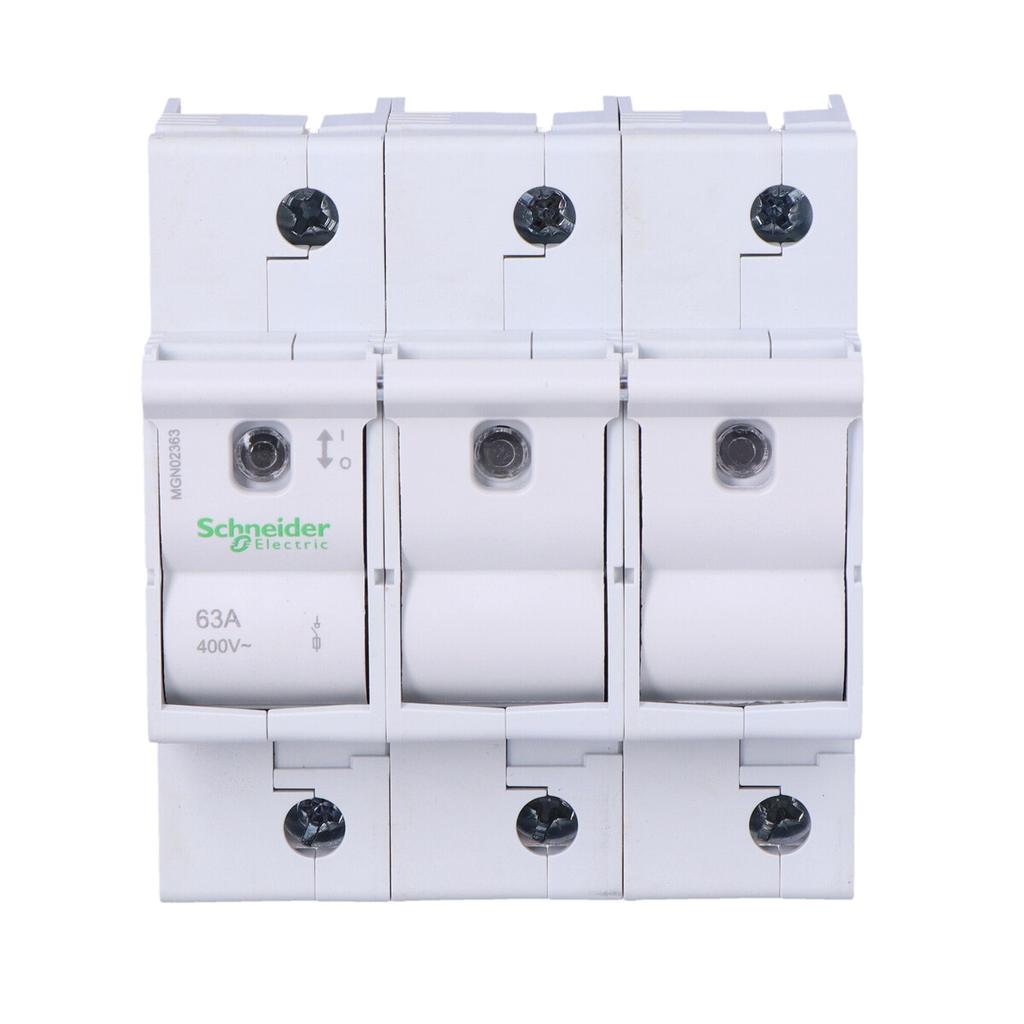

• What is this product? This Acti9 D02 product is a low voltage plug-in fuse switch disconnector.
• It is a 3P device with 3 protected poles and a rated current of 63A.
• It is used in the tertiary and industrial sectors.
• The electrical durability is up to 1500 cycles.
• The mechanical durability is up to 8500 cycles.
• The rated operating voltage Ue is 230VAC or 400VAC.
• Rated insulation voltage Ui is 400VAC.
• Can be mounted on DIN rail for modular installation.
• Dimensions are (W) 81mm x (H) 88mm x (D) 68mm.
• Degree of protection at the terminals is IP20, and when mounted in a modular housing IP40.
• Operating temperature is -5°C to +40°C.
• Storage temperature is -25°C to +55°C.
• This product complies with IEC/EN 60947-3, IEC/EN 60947-1 and IEC/EN 60269-1.
