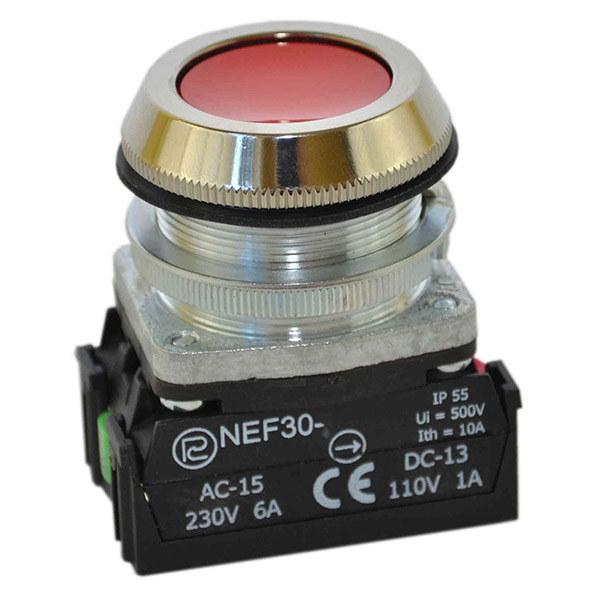

• The NEF30 emergency button is designed for installation in panels, control and signal boards, or directly into the bodies of machines and devices with a mounting hole of 30 mm in diameter.
• The product has a sectional design and consists of a drive element, also known as the button drive, and a connecting element, which may include 1, 2, or 3 connectors attached to the drive.
• The drive head is available in red.
• The button is mounted using mounting nuts; there is no need to separate the drive and connectors.
• The product has an IP56 protection rating and can be successfully installed in places with a higher degree of humidity - in production halls or outdoors, provided that additional protection is provided.
• Furthermore, the button contains 1 normally open contact and 1 normally closed contact and is unlocked by turning.
• Rated insulation voltage: 500 V AC
• Degree of protection part
• above desk.: IP56
• Degree of protection part
• sub-panel: IP20
• Connecting current
• for AC15 230/400 V: 6/4 A
