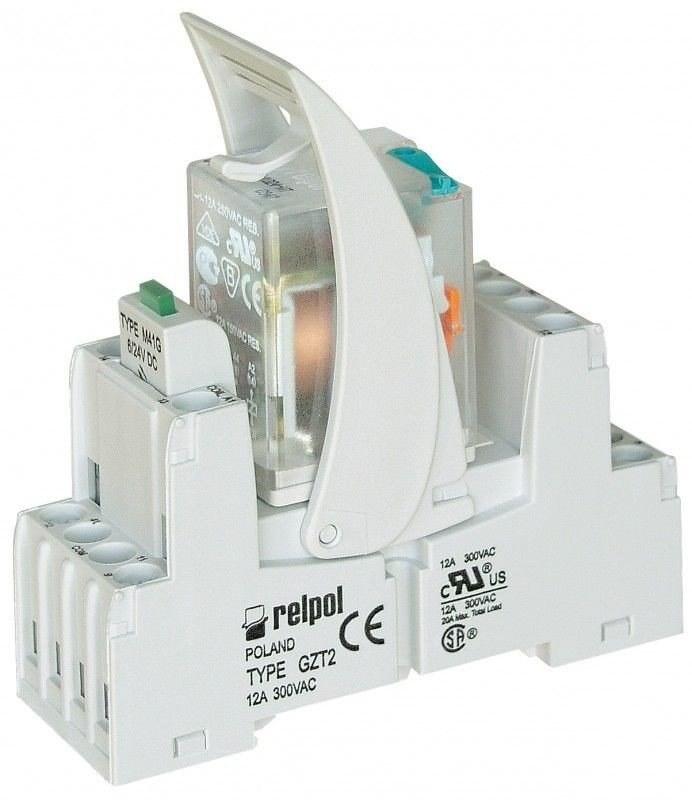

GZT2-GRAY plug socket for Relay R2

• GZT2-GRAY Plug-in socket, for relay R2 - width 27 mm.

• Without circuit separation.

• Input / coil - terminals: (+)A1(13) - (-)A2(14).

• Output / contacts - terminals: 11(9)-12(1)-14(5), 41(12)-42(4)-44(8).

• Track load capacity: 6 A / 300 V AC.

• Mounting on a 35 mm rail or on a mounting plate with two M3 screws.

• Dimensions of the GZT2 + R2 + GZT4-0040 set: 76.3 x 27 x 80 mm, GZT2 + R2N + G4 1052 set: 76.3 x 27 x 66.6 mm.

• Note: for the socket, a GZT4-0040 type clamp, so-called

• retaining and retracting device, made of plastic or spring clip G4 1052.

• The socket can accommodate signaling / surge protection modules type M..., Set - IP 20.
