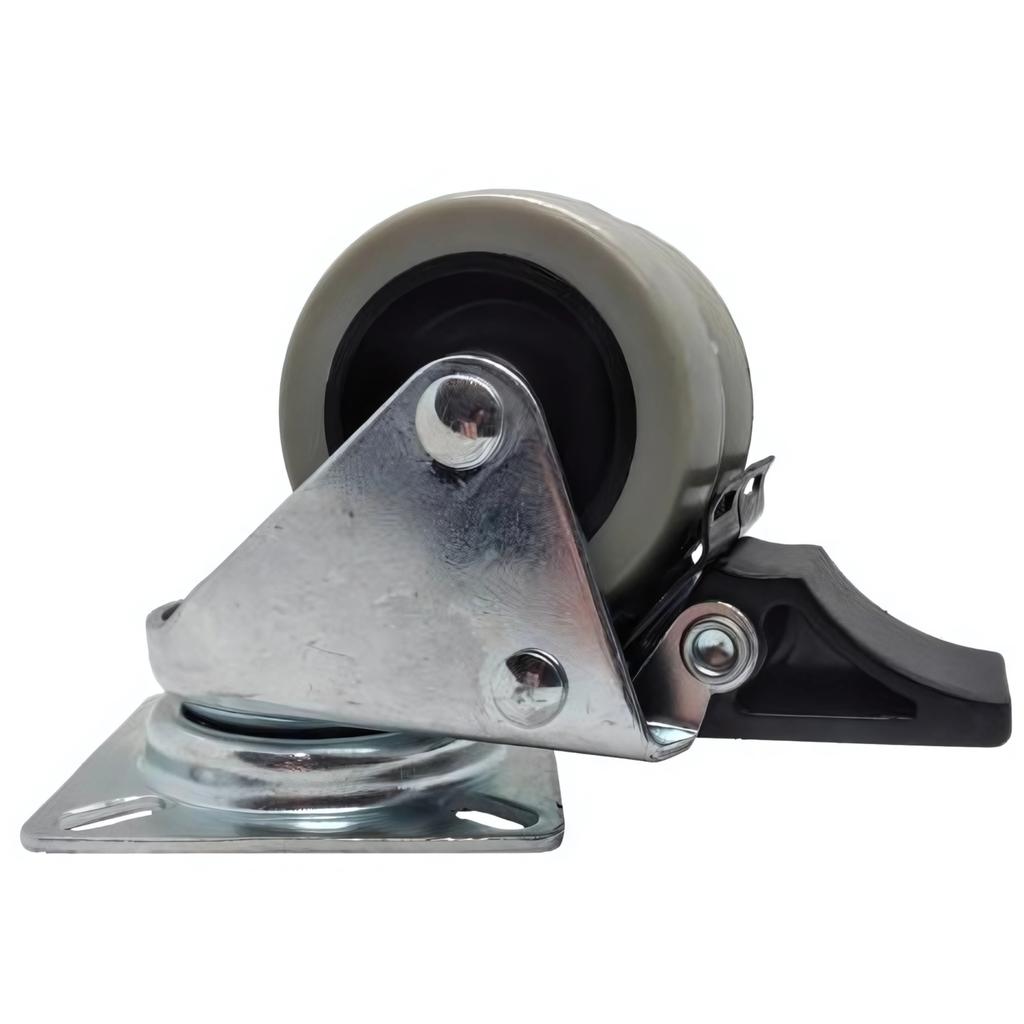

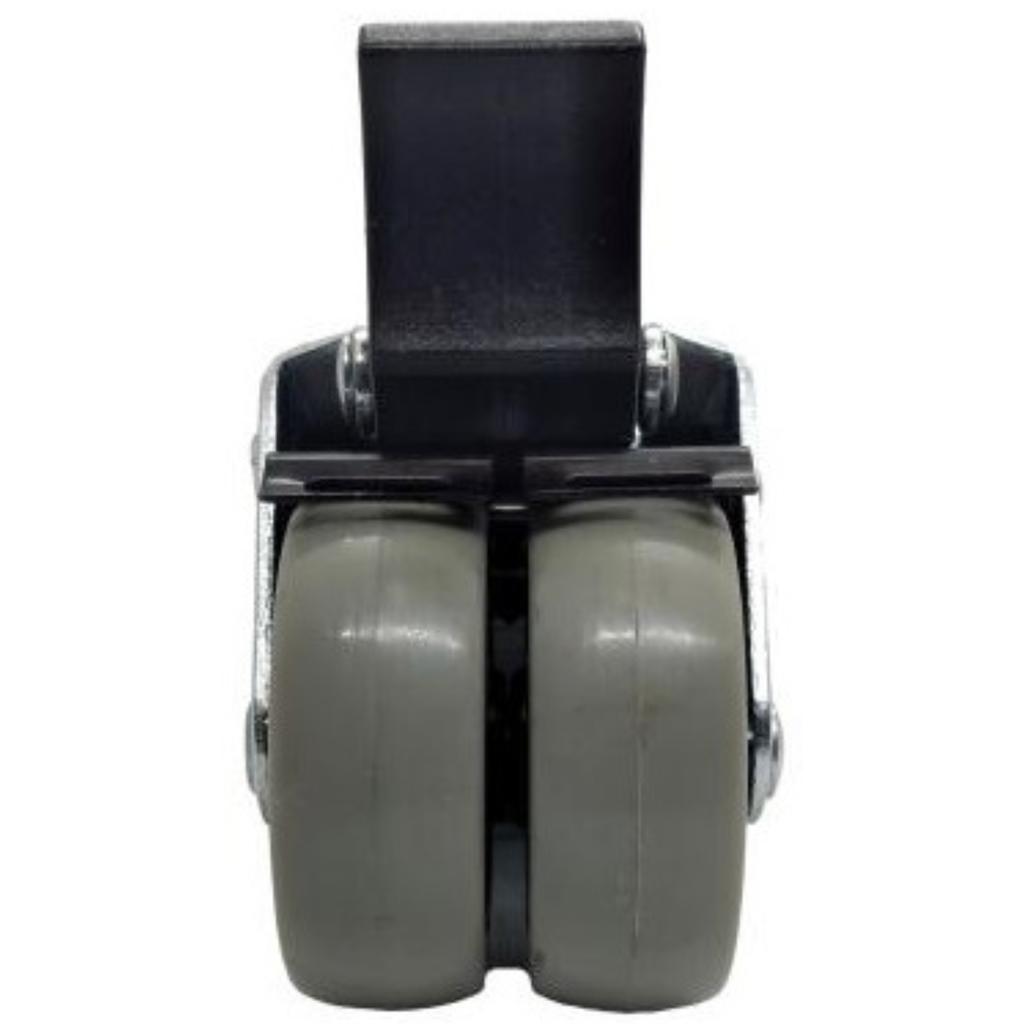

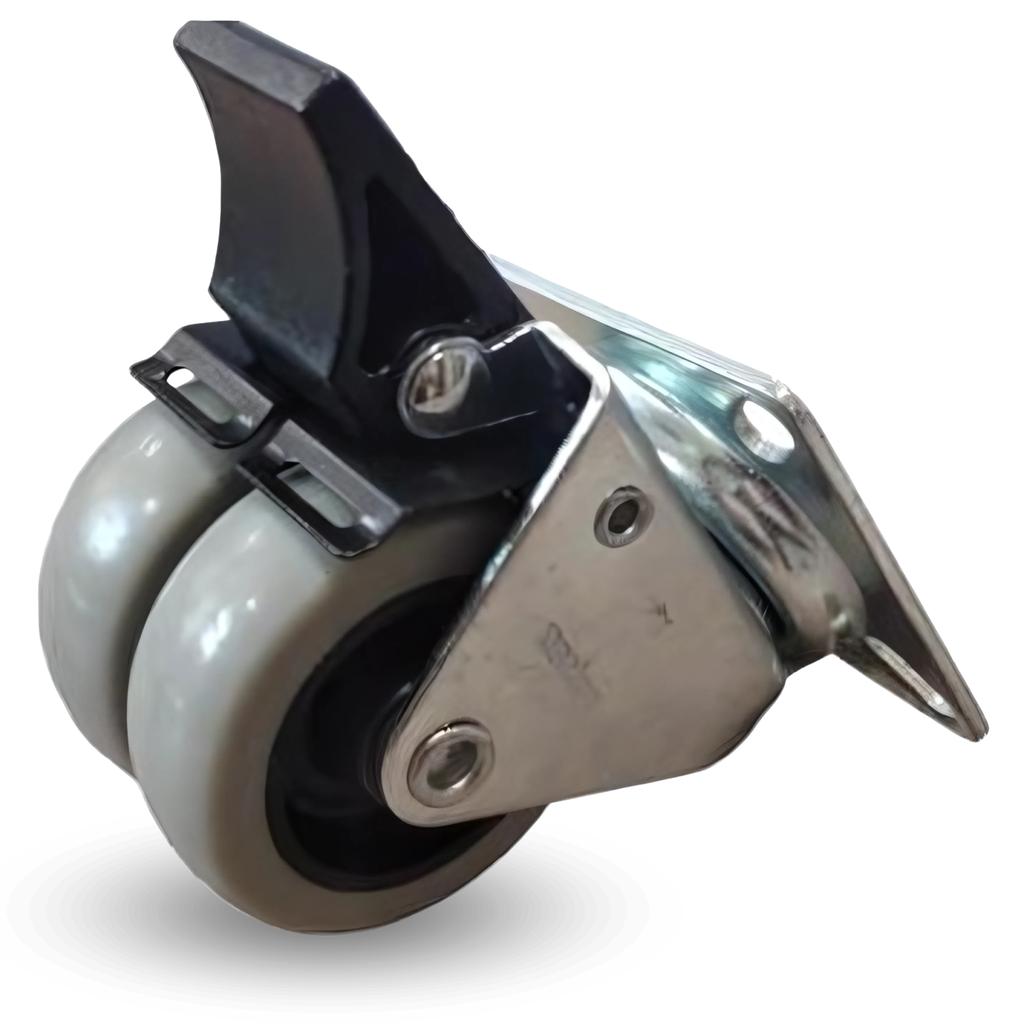

Caster set 4 pcs double wheels brake 50mm 300kg polyurethane

Caster set 4 pcs double wheels with brake 50mm 300kg polyurethane

The auction applies to 4 pcs

2x swivel wheel

2x swivel wheel with brake

At other auctions we sell single pieces

1️⃣ The most important information:

✅ Wheel swivel 50mm

✅ Load capacity up to 1 00kg (when assembling 4 pcs, load capacity 300kg )

✅ Tread polyurethane,* very durable

✅ Does not scratch or stain surfaces

✅ Mounting on plate

✅ Bearing slide**

✅ Tread hardness 70° Shore A

✅ Tongue brake (plastic)

2️⃣ Application:

• all types of display and refrigerated counters

• catering and hotel trolleys

• goods baskets, advertising displays

• wardrobes, armchairs, shelves, tables

3️⃣ Which wheel should I choose?

Apart from ground conditions, load capacity is one of the most important criteria for selecting wheels. To determine the required load capacity, the following variables must be known:

• the equipment's own weight

• the maximum load weight or load capacity

• the number of wheels that will be used

The wheel must always be in contact with the ground. In practice, this rarely occurs due to thresholds or unevenness in the ground. As a result, the total load often ends up on three wheels, and the load per wheel increases.

Therefore, the total load must be divided by three wheels instead of four, to achieve a safe load capacity.

When determining the safe total load capacity for a 4-wheeled device, we take into account the weight of the device plus its maximum load. Divide the sum by 3 to obtain the safe load capacity that should be assumed for 1 wheel.

In other cases, the load capacities are distributed as follows:

1) 1 swivel caster + 2 fixed casters

System suitable for small loads. Easily maneuverable, but unstable.

2) 4 swivel casters

Easy to maneuver in all directions, but difficult to operate in a straight line.

3) 2 swivel casters + 2 fixed casters

easy to operate in a straight line, but more difficult when changing direction.

4) 4 fixed sets (2 central upper)

Easy to operate in a straight line, easy to maneuver, but unstable.

5) 2 fixed sets + 4 swivel sets

Recommended setup for heavy loads and long vehicles. Easy to maneuver in all directions and good operation in a straight line.

* Tread polyurethane

• high load capacity

• quiet operation

• high wear resistance

• low rolling resistance

• resistant to oils, fats, detergents

• not resistant to humid working environment

** Bearing plain

Demonstrates good rolling properties. The bearings are used in wheels made of plastic. Under normal conditions, the plain bearings require no maintenance, are insensitive to shocks, and are corrosion-resistant.
