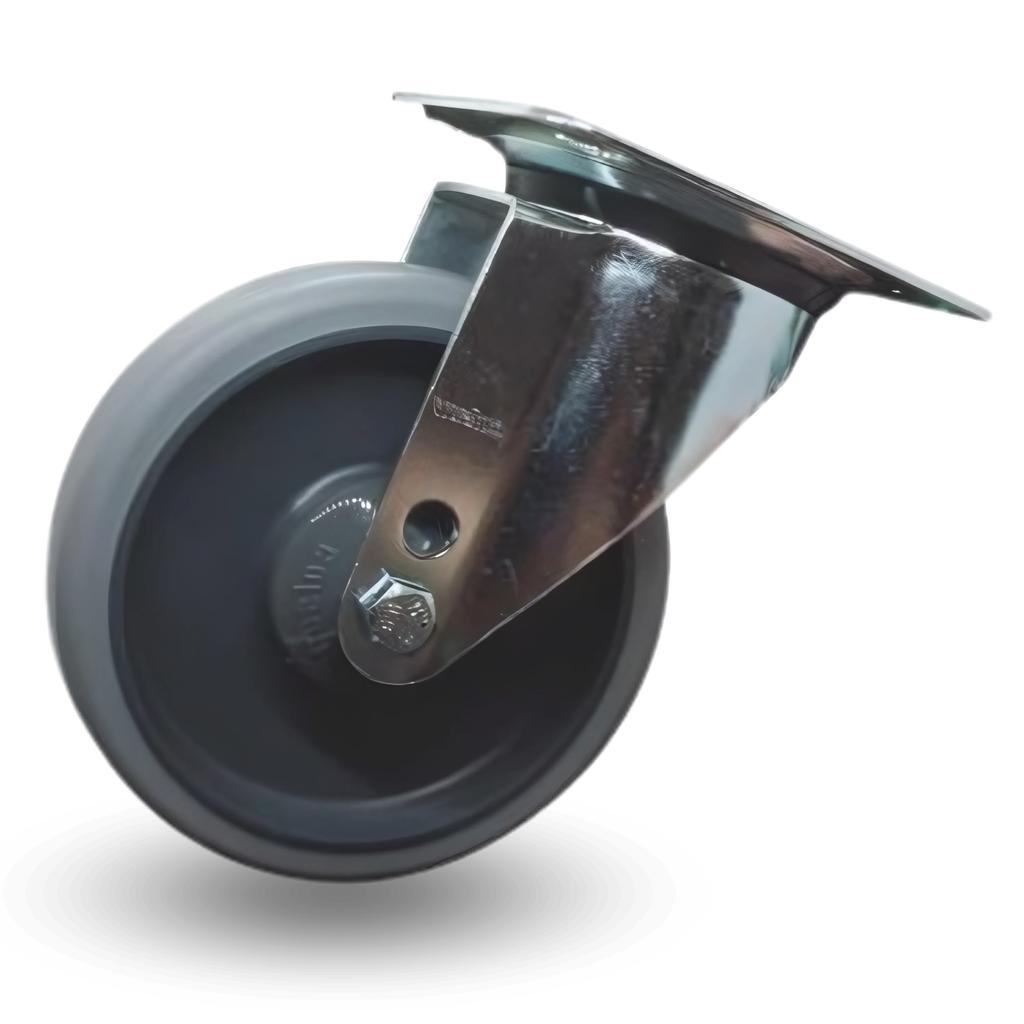

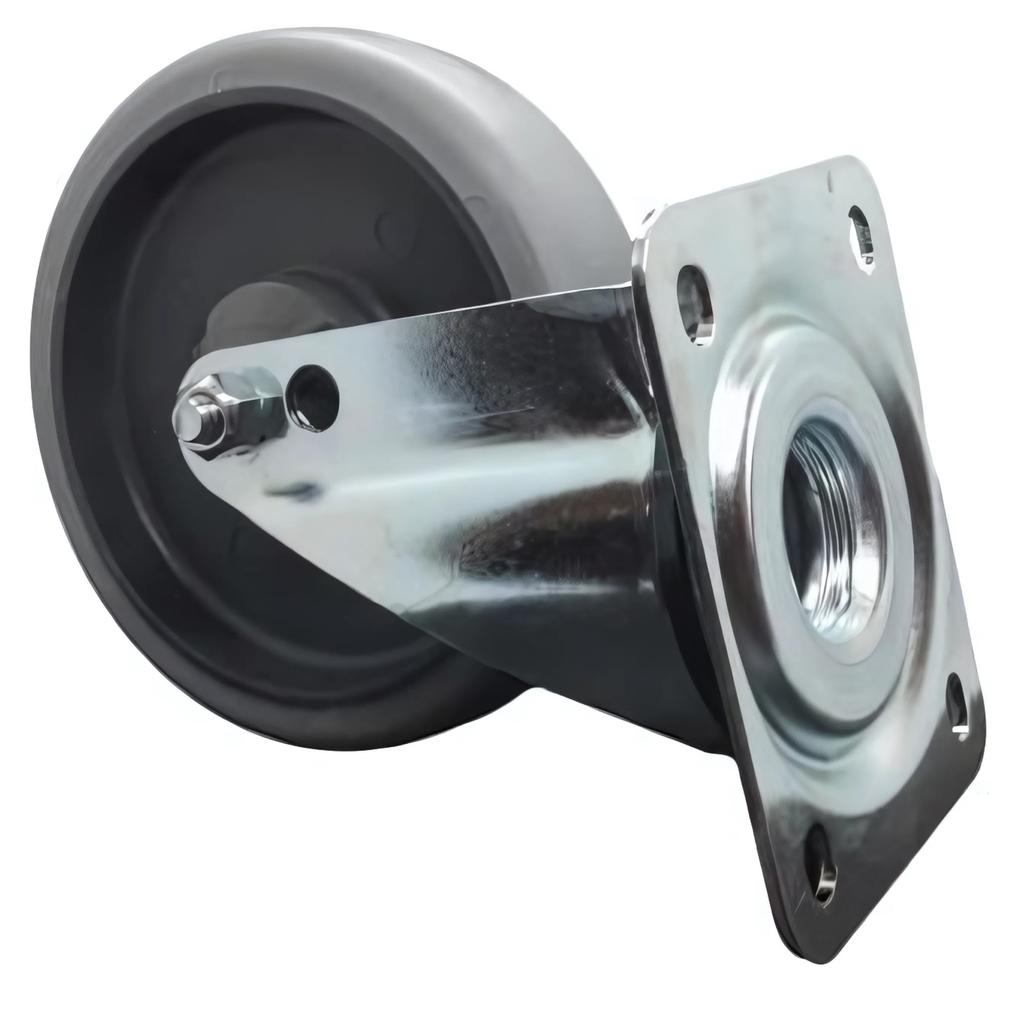

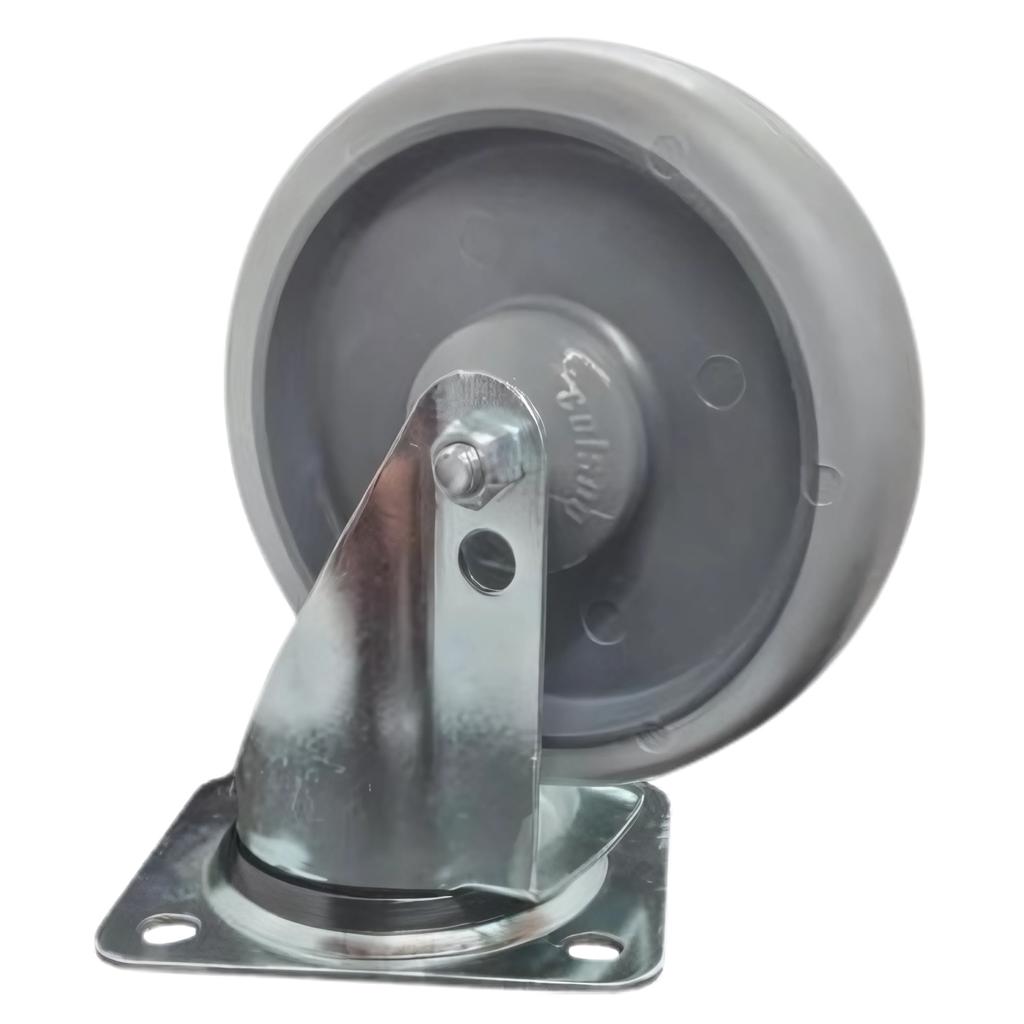

Swivel wheel rolling set 200mm 225kg JPPE 2003 Ecoforma
The auction applies to 1 piece

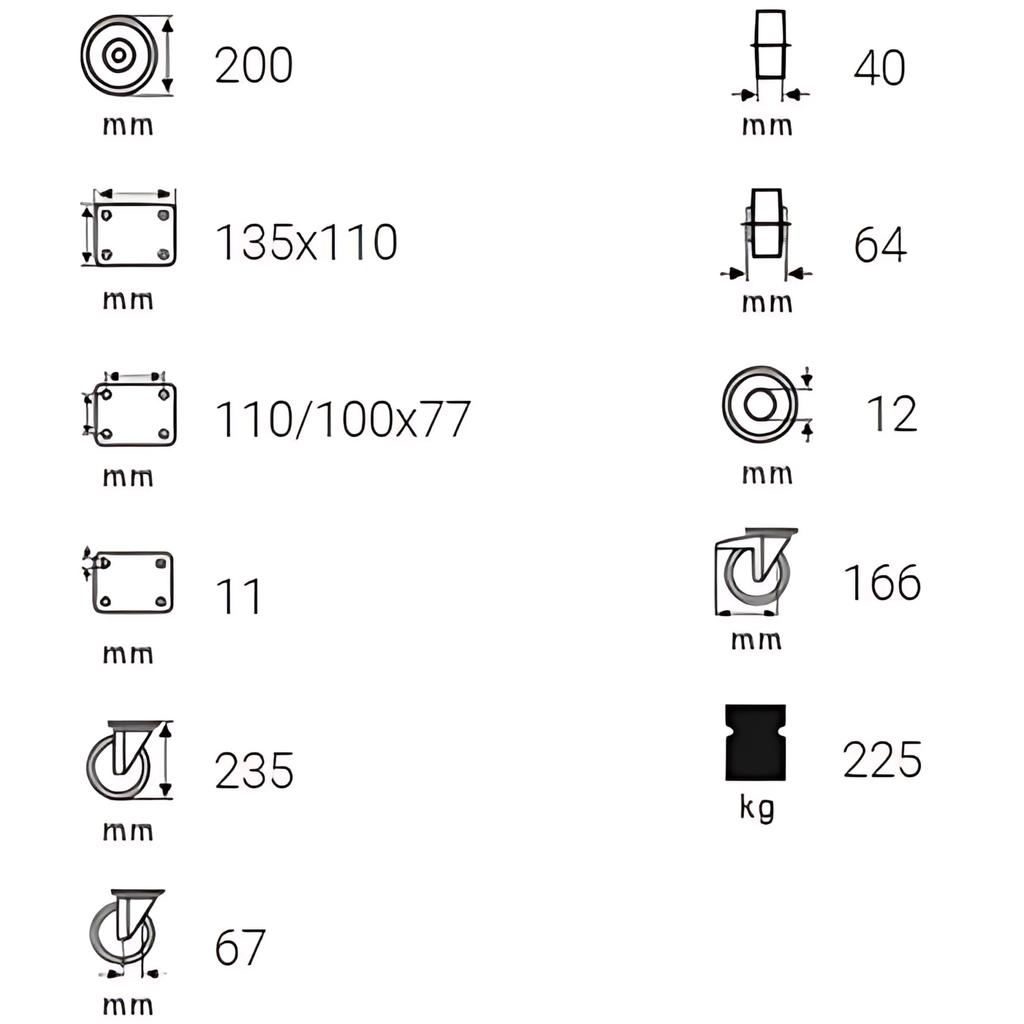

1️⃣ The most important information:
✅ Wheel 200mm
✅ Load capacity up to 225kg (when mounting 4 pcs, the load capacity is 100kg) 675kg )
✅ Tread made of thermoplastic rubber (Ecoforma) *
✅ Rubber resistant to weather conditions, dirt does not adhere to it
✅ Does not scratch the surface
✅ Does not make noise when rolling
✅ Bearing ball **
✅ Mounting on plate
✅ Tread hardness 70° (-/+5) Shore A
✅ Operating temperature from -30°C/+80 °C
2️⃣ Application:
• all types of transport and warehouse trolleys
• catering and hotel trolleys
• goods baskets, advertising displays
• wardrobes, armchairs, shelves, tables
3️⃣ Which wheel should I choose?
Besides ground conditions, load capacity is one of the most important criteria for wheel selection. To determine the required load capacity, the following variables must be known:
• the equipment's own weight
• the maximum load weight or load capacity
• the number of wheels to be used
The wheel must always be in contact with the ground. In practice, this rarely occurs due to thresholds or uneven ground. As a result, the total load often ends up on three wheels, and the load per wheel increases.
Therefore, the total load must divided by three wheels instead of four, to achieve a safe load capacity.
When determining the safe total load capacity for a 4-wheeled device, we take into account the weight of the device plus its maximum load. Divide the sum by 3 to obtain the safe load capacity that should be assumed for 1 wheel.
In other cases, the load capacities are distributed as follows:
1) 1 swivel caster + 2 fixed casters
System suitable for small loads. Easily maneuverable, but unstable.
2) 4 swivel casters
Easy to maneuver in all directions, but difficult to operate in a straight line.
3) 2 swivel casters + 2 fixed casters
easy to operate in a straight line, but more difficult when changing direction.
4) 4 fixed sets (2 central upper)
Easy to operate in a straight line, easy to maneuver, but unstable.
5) 2 fixed sets + 4 swivel sets
Recommended setup for heavy loads and long vehicles. Easy to maneuver in all directions and good operation in a straight line.
* Thermoplastic rubber Ecoforma
• easy handling on uneven ground
• quiet operation
• low rolling resistance
• resistance to oils, fats, detergents
• less suitable for long-term static use
• limited load capacity
** Bearing ball (also called precision)
Consists of metal balls that rotate between two rings: an inner and an outer. The bearing's design, its double RS seal, and plastic labyrinth shields guarantee resistance to environmental influences and ease of movement. They provide very good rolling properties at the maximum permissible wheel load and higher speeds. Ball bearings are the standard in the field of technically demanding devices and heavily loaded wheels.
