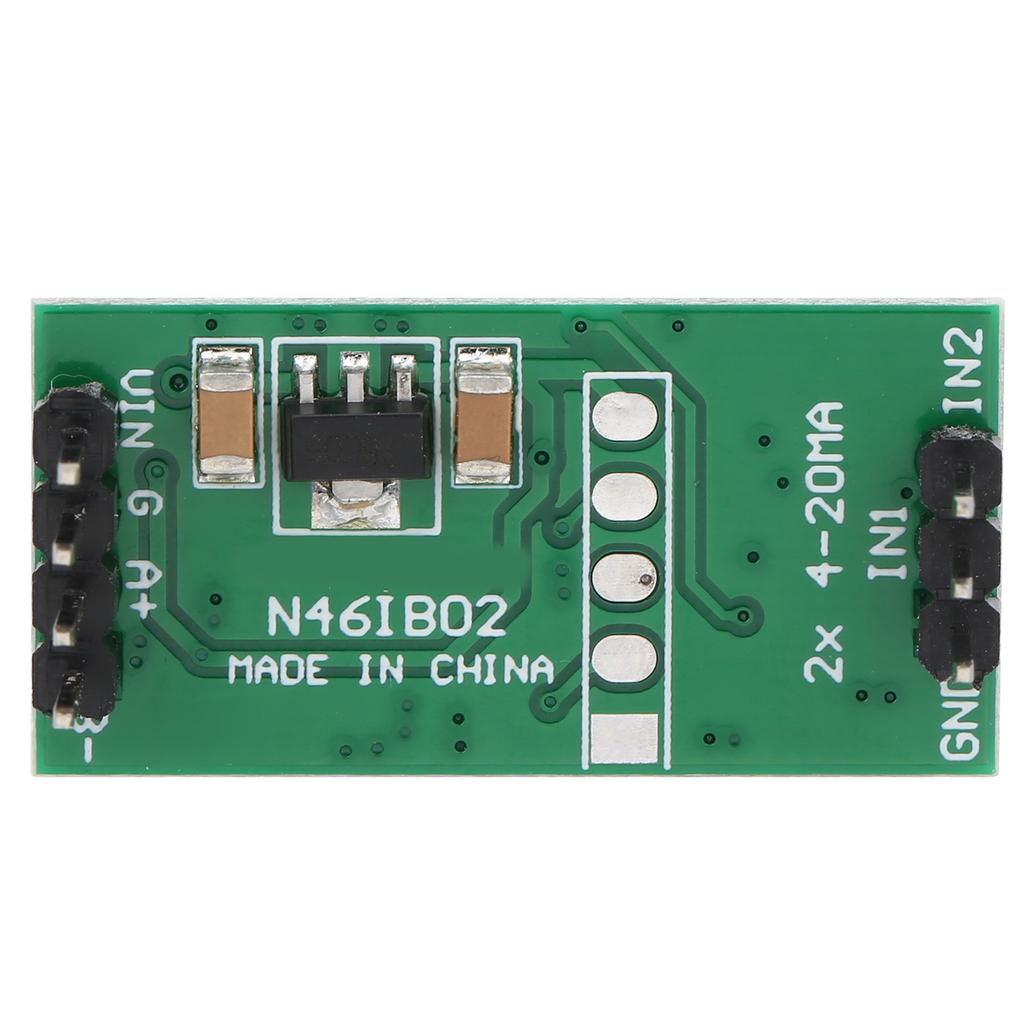

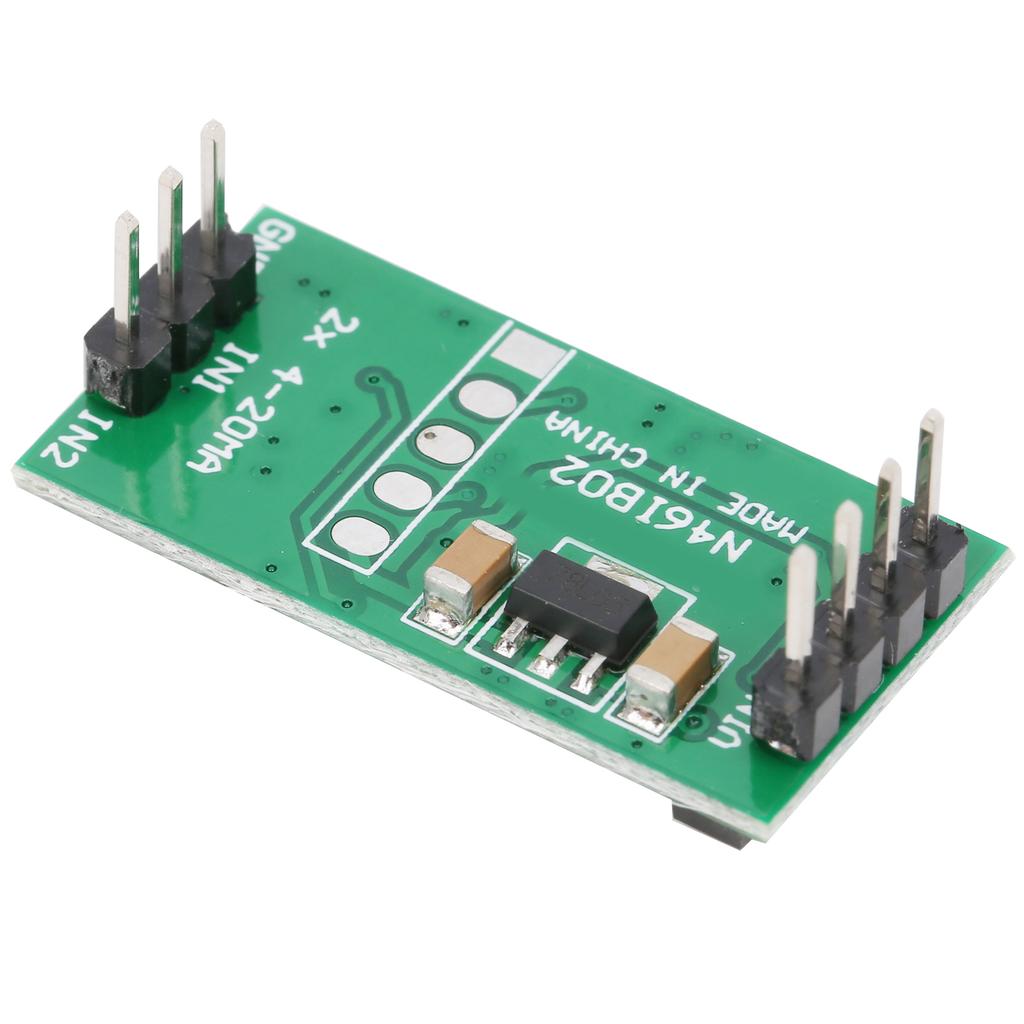

N46IB02 4‑20MA RS485 Current Analog Acquisition ADC RTU 03 06 Function Codes (with Pin)

Feature: 1. Automatic industrial PLC. Smart home, home automation. RS485 remote monitoring. 2. RTU instruction supports function codes 03 06. 2‑Channel Current Acquisition Module (4‑20mA). 3. IN1 IN2 channel current measurement range is 0‑25mA, working voltage 8‑25V. 4. RTU instruction can be input with PLC in addition to computer serial terminal input. 5. Under RTU instruction mode, it can support up to 247 devices in parallel. Specification: Condition: 100percent Brand New Item Type: Current Analog Acquisition Module Material: ABS 2 Channel Current Acquisition Module (4 20mA) 1 Working Voltage 8 25V 2. Operating Current: 9 13mA 3. RTU instruction supports function codes 03 06 4. IN1 IN2 channel current measurement range is 0 25mA 5. Current resolution: 0.1mA, measurement accuracy: 1percent ;It can be calibrated if the error is greater than 1percent 6. RTU instruction can be input with PLC in addition to computer serial terminal input 7. Under RTU instruction mode, it can support up to 247 devices in parallel. Package List: 1 x Module
