Feature:
1. HIGH EFFICIENCY: With a high power of 40W, this laser engraver module can cut a 8mm thick plywood cleanly in one go. With the engraving speed up to 100mm per second, practical and efficient.

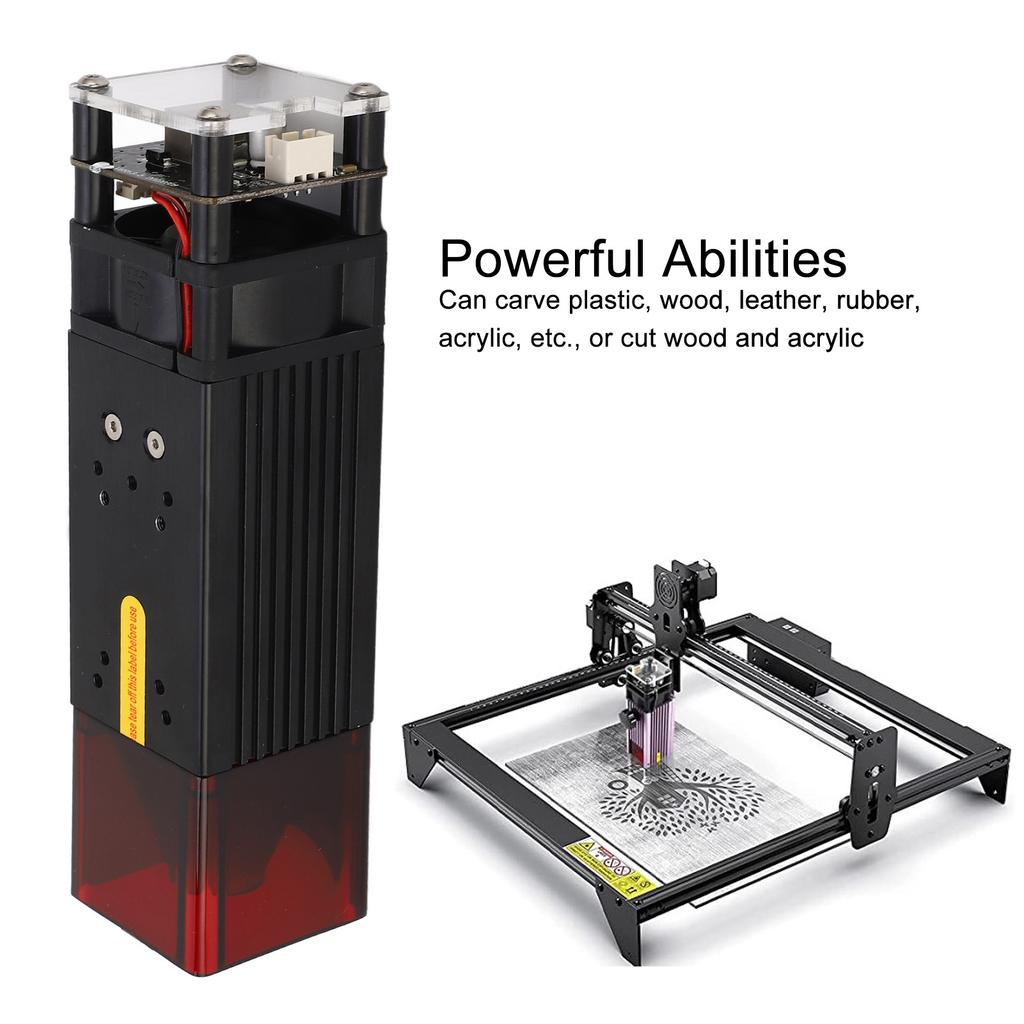

2. WIDE COMPATIBILITY: This CNC laser module can carve plastic, wood, leather, rubber, acrylic, etc., or cut wood and acrylic, has a wide range of applications.
3. SAFETY PROTECTION: The cutting module has built in protective glass to preserve the eyes, making it more comfortable and safe without the need to wear protective goggles.
4. HIGH PERFORMANCE: The engraving module consists of two high performance diodes using FAC technology, the minimum focal point is 0.12 x 0.12 mm, providing the best clear engraved pattern.

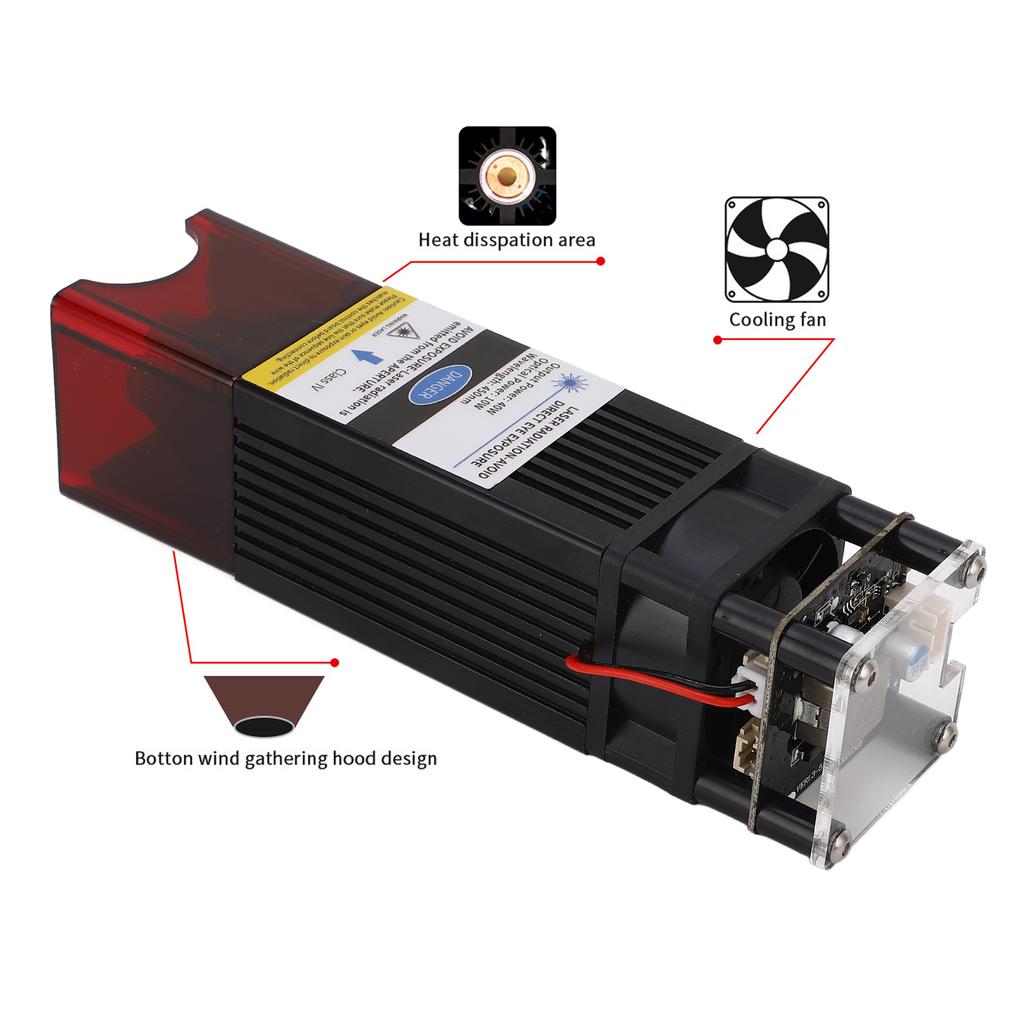

5. QUIET COOLING: Built in fast intelligent drive, temperature can be checked in time, fan intelligent setting reduces noise, carving job is safe and quiet.
Specification:
Item Type: Laser Engraver Module
Material: Aluminum alloy, ABS
Wavelength: 450nm±5nm
Power: 40W
Accuracy: 0.01mm
Input Voltage: 12V 3A
Fan Voltage: 12V
Cutting Speed: 100mm per minute
Working Temperature: 0℃ to 70℃
Service Life: 10000H
Engraveable Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non reflective electroplated coating and painted metal, blacked art knives
Cutable Materials: Cardboard, non woven fabric, veneer, acrylic, and some thin plastic sheets
Interface Parameters: 3Pin (12V, GND, PWM)
Color: Black
How to Use:
Directly install and use.

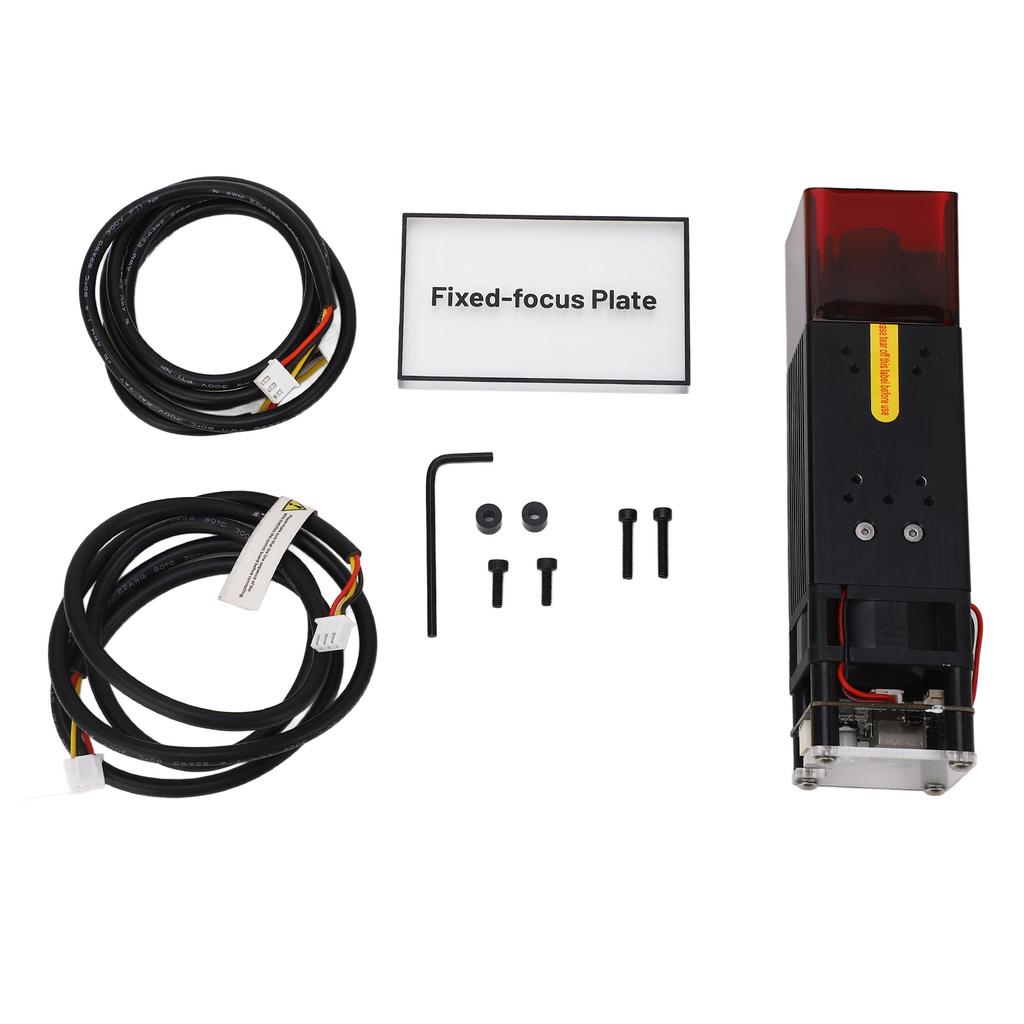

Package List:
1 x Laser Engraver Module
2 x Connection Cable
1 x User Manual
1 x Focusing Plate
1 x Hex Wrench
4 x Screw
2 x Gasket
