Feature:
1. This instrument has stable performance, high precision, high reliability, clear reading function, which can test AC & DC current, AC & DC voltage, resistance, capacitance, etc.
2. This is a portable multimeter with high reliability, high safety and automatic measurement.
3. An excellent tool for instruments and laboratories, factories, radio enthusiasts and families.

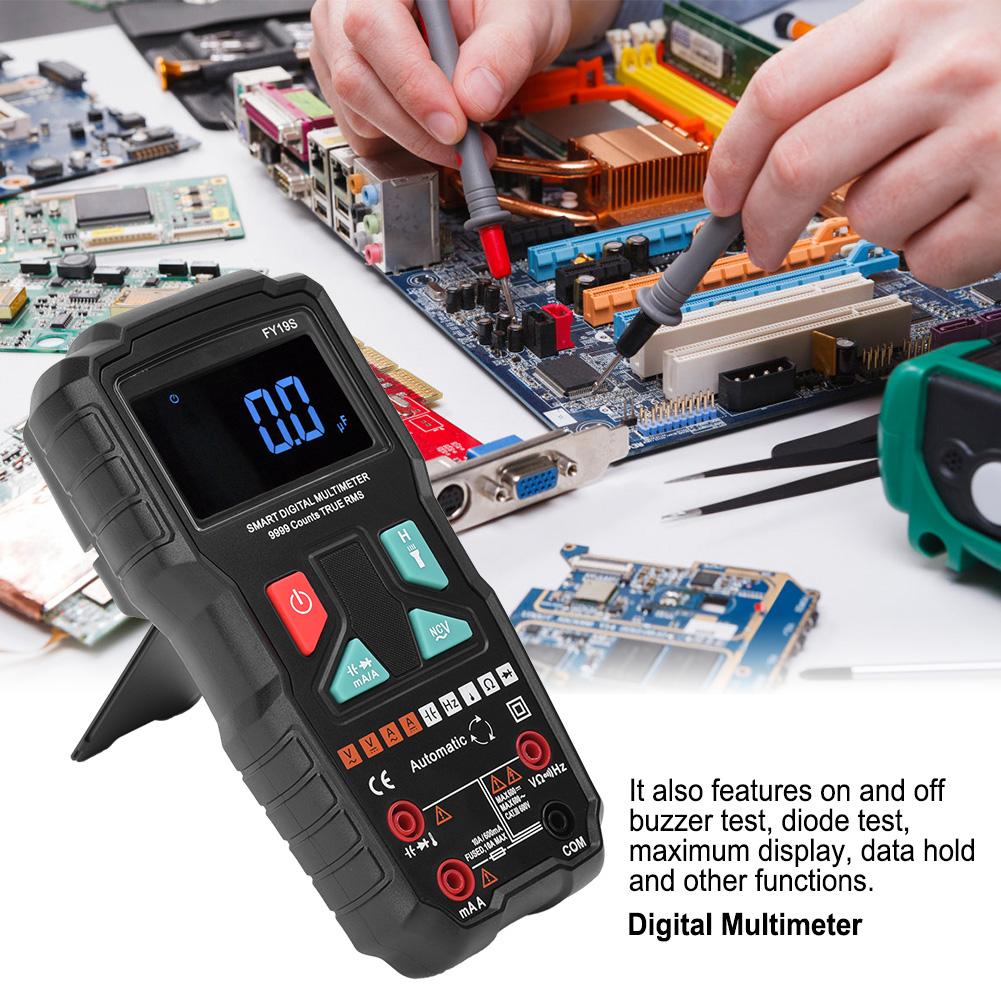

4. It also features on and off buzzer test, diode test, maximum display, data hold and other functions.
5. It is an ideal tool for electronic maintenance, manufacturing and on site maintenance of hvac equipment.
6. When the battery power is not sufficient, there would be a sign to indicate and ensure the long service life.
Specification:
Condition: 100percent Brand New
Item Type: Multimeter
Material: ABS
Model
Range
Resolution
Accuracy
DC Voltage
10V 100V 600V
0.1mV 0.001V 0.01V
+ (0.5percent reading +3 words)
AC Voltage
10V 100V 600V
0.1mV 1mV 10mV
+ (0.8percent reading +3 words)
AC Current
999.9mA
0.1mA
+ (1.5percent reading +5 words)
10A
10mA
+ (2percent reading +10 words)
DC Current
999.9mA
0.1mA
+ (1percent reading +5 words)
10A
10mA
+ (1.5percent reading +10 words)
Resistance
999.9 Ohm 9.999M Ohm
0.1 Ohm 1K Ohm
+ (0.8percent reading +3 words)
Capacitance
999microfarad
100nF
+ (3.5percent reading +10 words)
9999microfarad
1microfarad
+ (4.5percent reading +10 words)
Environment Temperature
degrees C
1 degrees C
0 degrees C 40 degrees C + 3 degrees C
degrees F
1 degrees F
32 degrees F 104 degrees F + 6 degrees C
Temperature
20 degrees C 0 degrees C
1 degrees C
+ (5percent reading +4 words)
1 degrees C 400 degrees C
+ (1percent reading +3 words)
401 degrees C 1000 degrees C
+ (2percent reading)
Continuity Buzzer
100 Ohm
1 Ohm
No more than 50 built in buzzer continuous sound
Diode
0.001V
Forward DC current: about 1mA Open circuit voltage: about 3.2V display shows the diode
approximation of positive pressure bee
Other Specification
One Button Start
√
Automatic Measurement
√
Three display in a screen
√
Auto Power Off
√
High definition color screen
√
Maximum Display
√
Low Voltage Prompt
√
Battery
1.5V AAA x 3(not included)
Data Hold
√
Size
183 x 90 x 51mm 7.2 x 3.5 x 2in
.
Package List:
1 x Multimeter1 x Instruction1 Pair Test s1 x Thermocouple Cable1 x Black Bag
Note:
Please allow 1 3cm error due to manual measurement. Thanks for your understanding.
