How to choose A and B?
if your original radio has "rockford " like below picture, please choose "B" version, which come with canbus,Pay additionally Contacts us; if no, please choose "A" version;
Special Attention: A wire harness is standard, please contact us if you need B wire harness！！
Specifications
General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 9.7 inch- Front panel Size: As picture show
Fitment

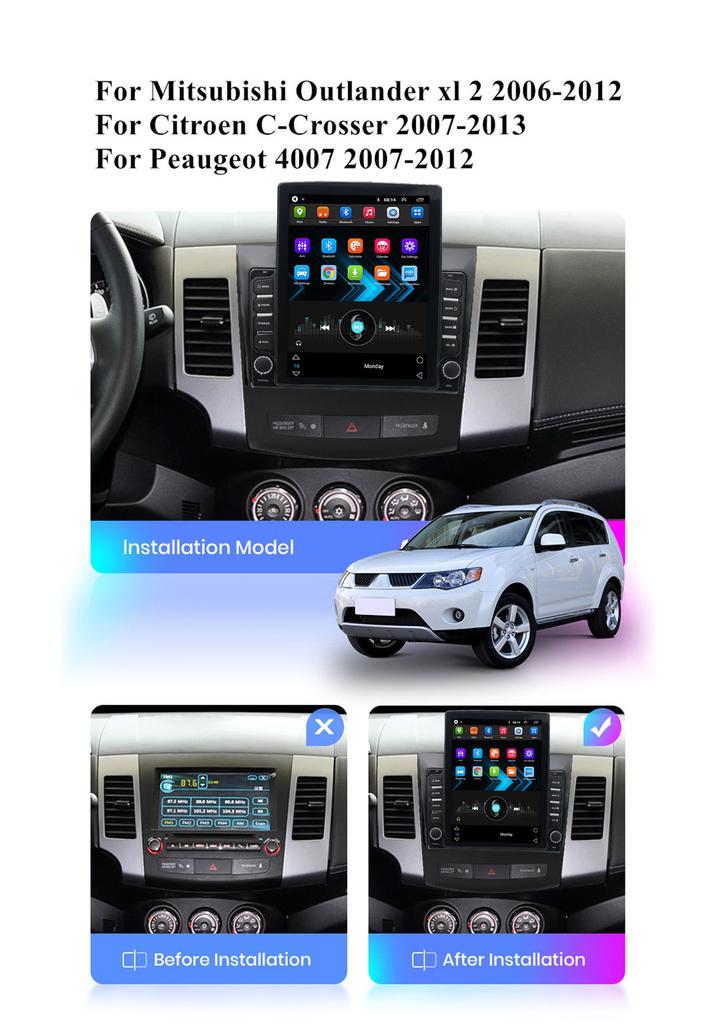

Applicable Models & Years: For Mitsubishi Outlander xl 2 2006-2012
For Citroen C-Crosser 2007-2013;
For Peaugeot 4007 2007-2012
System
- Operation System: Android 10.1
- CPU: Quad Core AC8227L A7- ROM: 32GB- RAM: 2GB
- Extended USB: Support USB Disk up to 32GB
Display
- Touch Screen: Yes
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Apps-Icon Position: Yes
WiFi/3G/4G
- Connector: On the Back
- WiFi: Built-in WiFi Modem, support 802.11b/g/n
- Supports 4G & 3G Internet Hotspot (4G Dongle and 3G Dongle are not included)
Internet
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: WeChat, Twitter, Facebook, Skype, Gmail, Whatsapp etc.
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT
Audio
- Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB
Video
- Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
GPS
- Support Maps: IGO, Sygic, Google Map etc.
- Voice Guidance: Yes
- Support 2D/3D Map Views: Yes
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support google maps online navigating
Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- Bluetooth Music Control: Yes, play/pause/previous/next
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Setup: Auto Answer, Auto connect, Device name- Built-in Microphone: Yes, on the front panel- External Microphone Jack：Yes on the RCA cable
Radio
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- Preset Stations: 30(FM 3*6)
USB
- Position: 2 USB Port, can be connected with Media/Camera/DAB+ Box/Smartphone
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
- Touch Music Title to play directly: Yes
DVR
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes
- Play recorded Video directly: Yes
- Storing Position: Nand Flash/GPS Card/SD Card/USB Storage can be changed
DAB(+)-IN
- Support（DAB+ BOX NEED TO BUY SEPARATELY）
DTV-IN
- Built-in Digital TV Tuner: No
- External Port for TV Box: Yes, Support DVB-T/DVB-T2/ATSC/ISDB Box
- Power Supply to TV Box directly: Yes, you can connect our TV Box to achieve this function
- Touch Control the TV Box on unit: Yes, you can connect our TV Box to achieve this function
Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- Wallpapers: 5 live wallpapers, 17 standard wallpapers, support DIY wallpaper from Gallery
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support Mirror Link function: Yes, support screen mirroring from iPhone and android smartphone
- Support TPMS: YES (Not Included)
Setup
- WiFi/Hotspot/Bluetooth: Yes
- Brightness level adjustable: Yes
- Wallpaper: Wallpapers/Live Wallpapers/Gallery
- Sound: Key Tone & Volume - Storage: Display Internal Storage/Nand Flash/Connected Device Storage
- Apps: Running Apps display/force stop/uninstall
- Security: Yes
- Accounts: Yes
- Languages and Input: more than 70 Languages and choose input method
- Backup and Reset: Yes
- Date and Time: Setting Date&Time by yourself or choose GPS/network-provided time
- Accessibility: Yes
- GPS: Yes, GPS application options/monitoring/sound mode/mixing ratio
- Driving safety: Watching Video, Reversing X-mirror/Volume, Reversing Trajectory/radar Display, Rear view ruler
- Amplifier: Rock/Pop/Jazz/Classic/Flat/Voice/Custom
- Steering Wheel Control: Yes
- About Device: Display Parameter Info.
Input
- AUX Video In
- Rear-View Camera Video In
- DTV Box In
- DAB+ Box In
- Car DVR In
- GPS Antenna In
Output
- Video Out
- Audio Out: LF, LR, RR, RF
- Surround Stereo Out: 4*45W
Accessories
Package Included:
-1 x Car Radio Stereo -1 x GPS Cable-2 x USB Cable
-1 x Universal Power Cable-1 x RCA Cable-1 x Camera Input Cable
