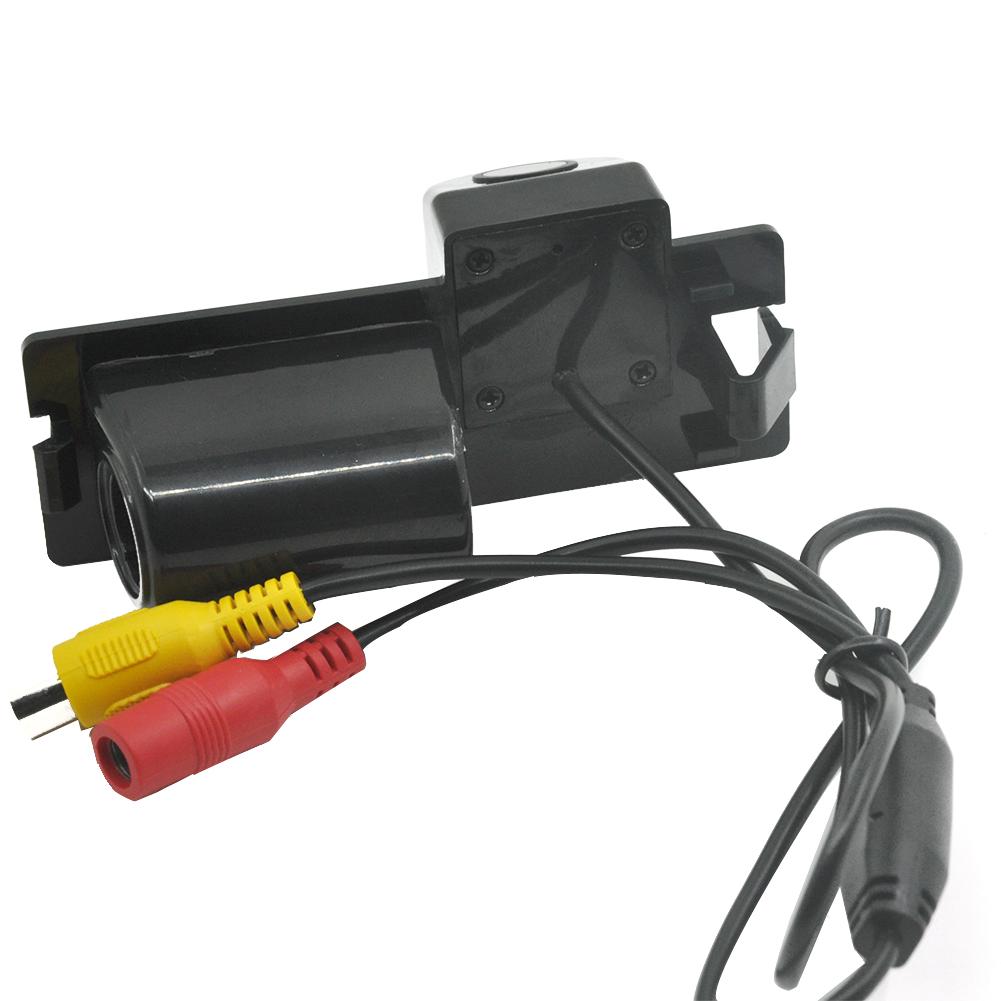

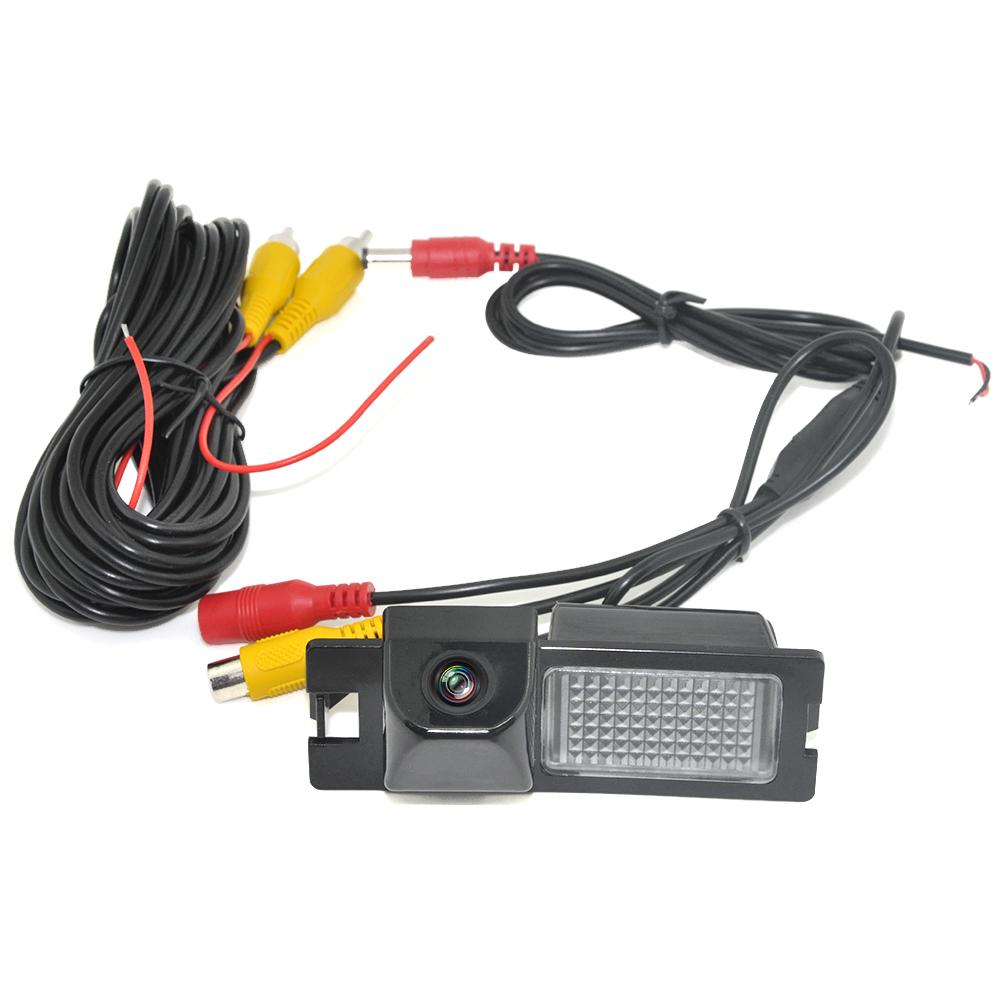

Wire Wireless CCD Car Rear parking Camera for sony CCD Fiat Viaggio fiat Bravo night camera

-Applicable models:Fiat Viaggio fiat Bravo. -Size:100*30mm. -Length of Video Cable:6M. -Image Sensors: 1/4 " color CCD. -TV system: NTSC and PAL. -Effective pixels: 728 x 512. -Resolution: 520 TV lines. -Waterproof Class: IPX 68. -Operating power (DCV): 12V. -Current consumption: 90 mA max. -Video output: 1.0Vp-p, 75. -Electronic shutter: 1/60 (NTSC) -1 / 10000s, 1/50 (PAL) -1 / 10000s. -Operating temperature: -20 ° C ~ + 80 ° C RH95%.

Installation: 1. Install the camera in the license area of the plate of your car 2. Adjust the camera lens to its best position. 3. Connect the power cord (red and black) to the headlight of the power wires of your car. 4. Connect the video output (yellow wire) to the display.

About the TV system of the car rear view camera: Usually, most monitors support both NTSC and PAL TV systems. So it does not matter that the camera is PAL or NTSC system. However, if you are not sure, please check that your monitor supports NTSC or PAL System. If your monitor only supports PAL, please note within one working day after making a payment. Or we will send an NTSC camera by default.

packing list: 1 * CCD Car Rear View Camera 1 * 6m video cable 1 * power supply cable 1 * User's Manual
