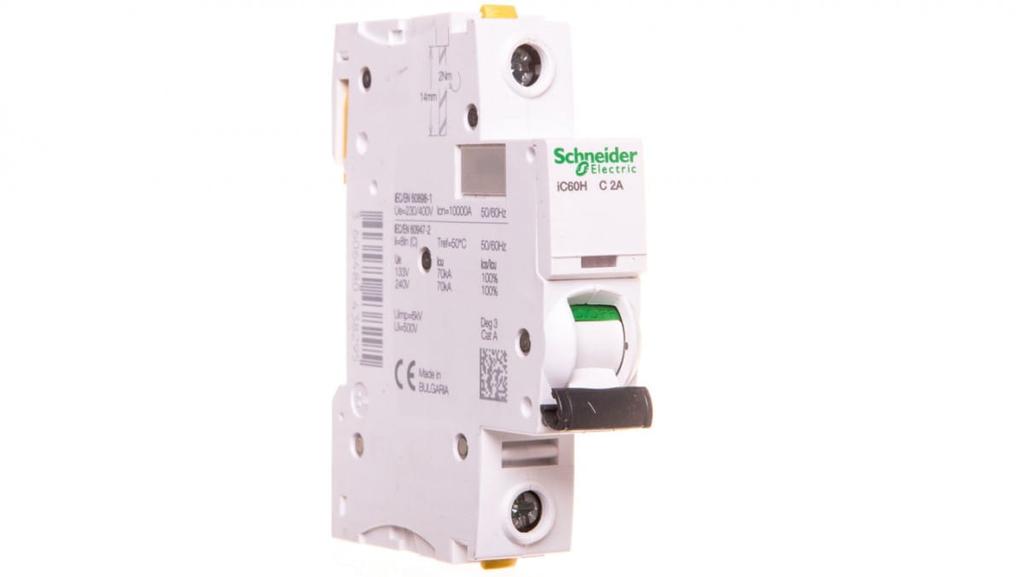

Circuit Breaker 1P C 2A 10Ka Ac Ic60H-C2 Acti9 A9F07102

Frequency [Hz]: 50

Installation depth [mm]: 78.5000

Rated voltage [V]: 500

Rated current [A]: 2

series: Acti9

Protection degree (IP): IP20

Rated short-circuit breaking capacity according to EN 60898 [kA]: 10

Rated short-circuit breaking capacity according to IEC 60947-2 [kA]: 15

Tripping characteristic: C CN: 85362010 Length: 90 EAN: 3606480438295 Manufacturer index: A9F07102 Simultaneously disconnected N pole: No Overvoltage category: 4 Number of poles: 1 Possibility of additional equipment: No PKWiU: 27.12.22.0 Voltage type: AC Pollution degree: 3 Width: 75 Width expressed in number of modules: 1 Weight: 0.2000 Height: 18
