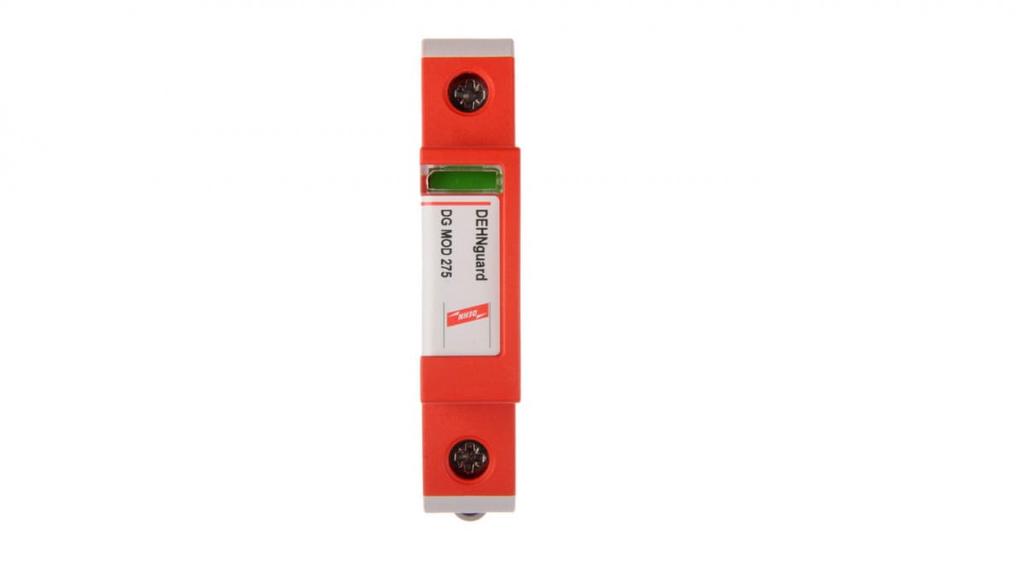

Surge Arrester Type T2 1P 20Ka 1.5Kv Dehnguard 275 952070

Manufacturer's index: 952070

Maximum continuous operating voltage AC [V]: 275

Maximum continuous operating voltage DC [V]: 350

Protection level [kV]: 1.25

Cross-section of the connected cable (flexible, multi-wire) [m: 1.5

Cable cross-section Rigid (single-wire, stranded) [mm2]: 1.5

Type 2: Yes

Rated discharge current - peak value (8/20) [kA]: 20

Poles: 1 CN: 85363030 Length: 110 EAN: 4013364108493 PKWiU: 27.12.23.0 Size: 1 module Series: DEHNguard Mounting method: DIN mounting rail 35 mm Trigger indication on the device: Optical Width: 80 Network configuration: TN Weight: 0.1300 Height: 20 With remote signaling contact: No
