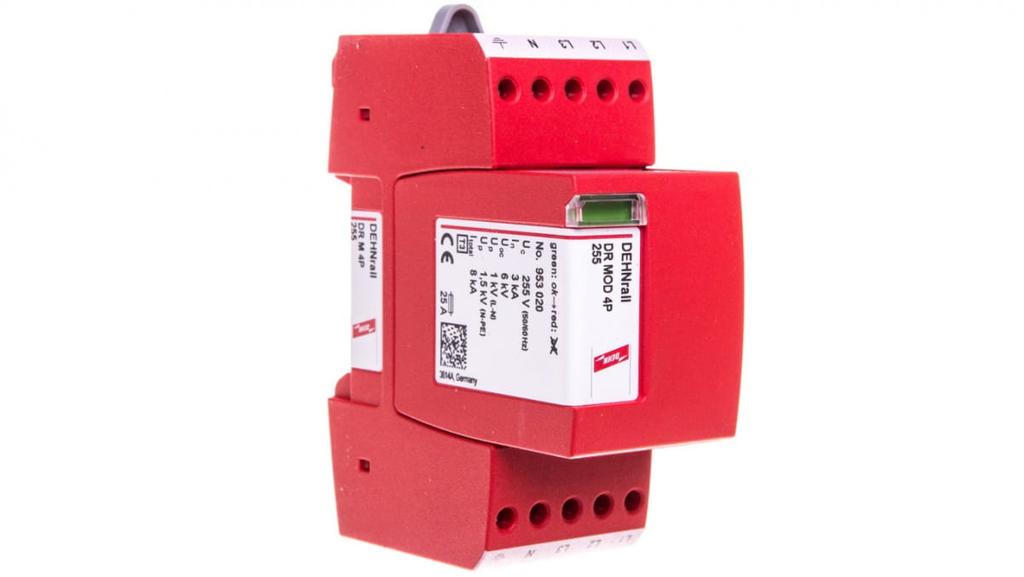

Surge Arrester Type T3 4P 8Ka 1.5Kv Dehnrail 4P 255 953400

Manufacturer's index: 953400

Maximum continuous operating voltage AC [V]: 255

L-N protection level [kV]: 1

L-PE/N-PE protection level [kV]: 1.5000

Rated current [A]: 25

Cross-section of the connected cable (flexible, stranded) [m: 0.5

Rigid wire cross-section (single-wire, stranded) [mm2]: 0.5

Type 3: Yes

With anti-interference filter: No

Rated AC voltage [V]: 230

Nominal discharge current (8/20) (L+N-PE) [kA]: 8

Nominal discharge current (8/20) (L-N) [kA]: 3

CN: 85363030 Length: 100 EAN: 4013364115767 Number of poles: 4 PKWiU: 27.12.23.0 Series: DENHrail Mounting method: DIN mounting rail 35 mm Indication of operation on the device: Optical Width: 75 Weight: 0.1600 Height: 40 With remote signaling contact: No Size: M
