5 Pairs Universal Remote Control Module Receiver Transmitting Tubes

Description:

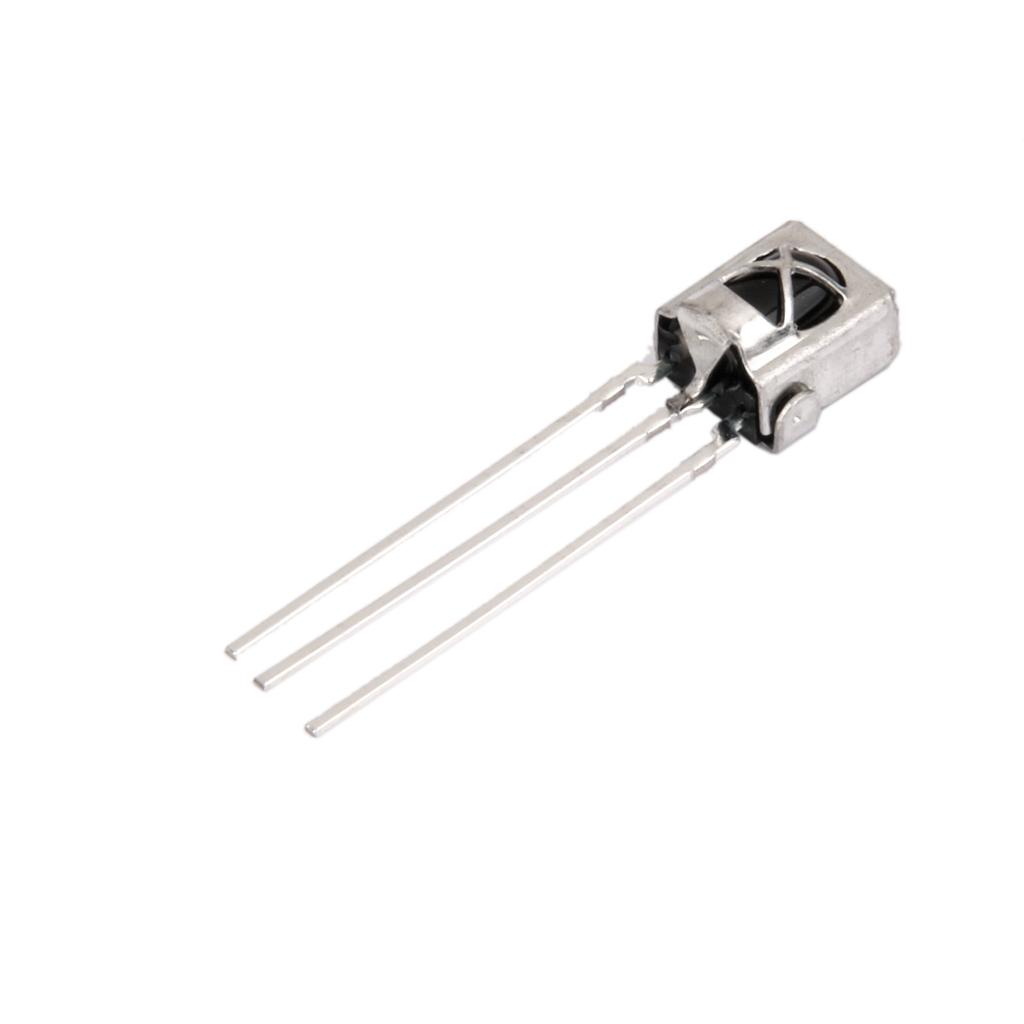

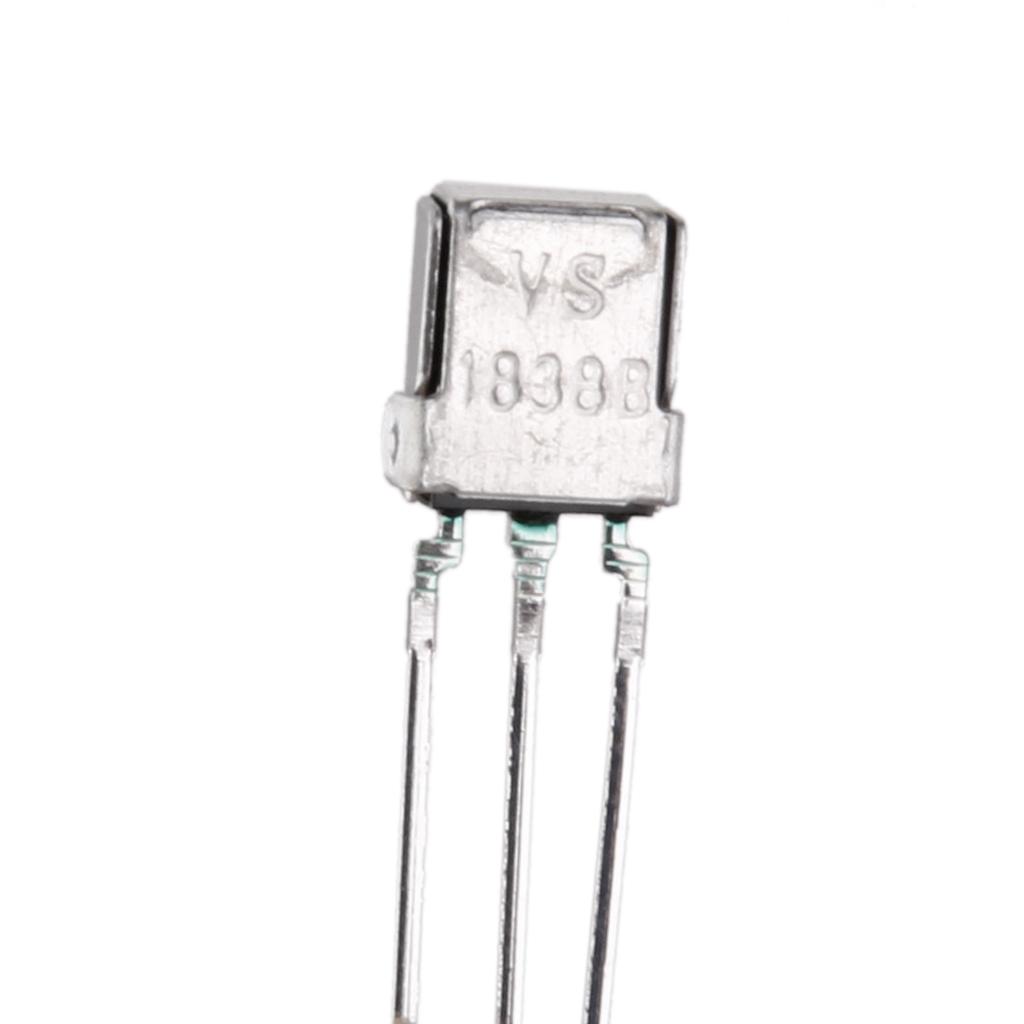

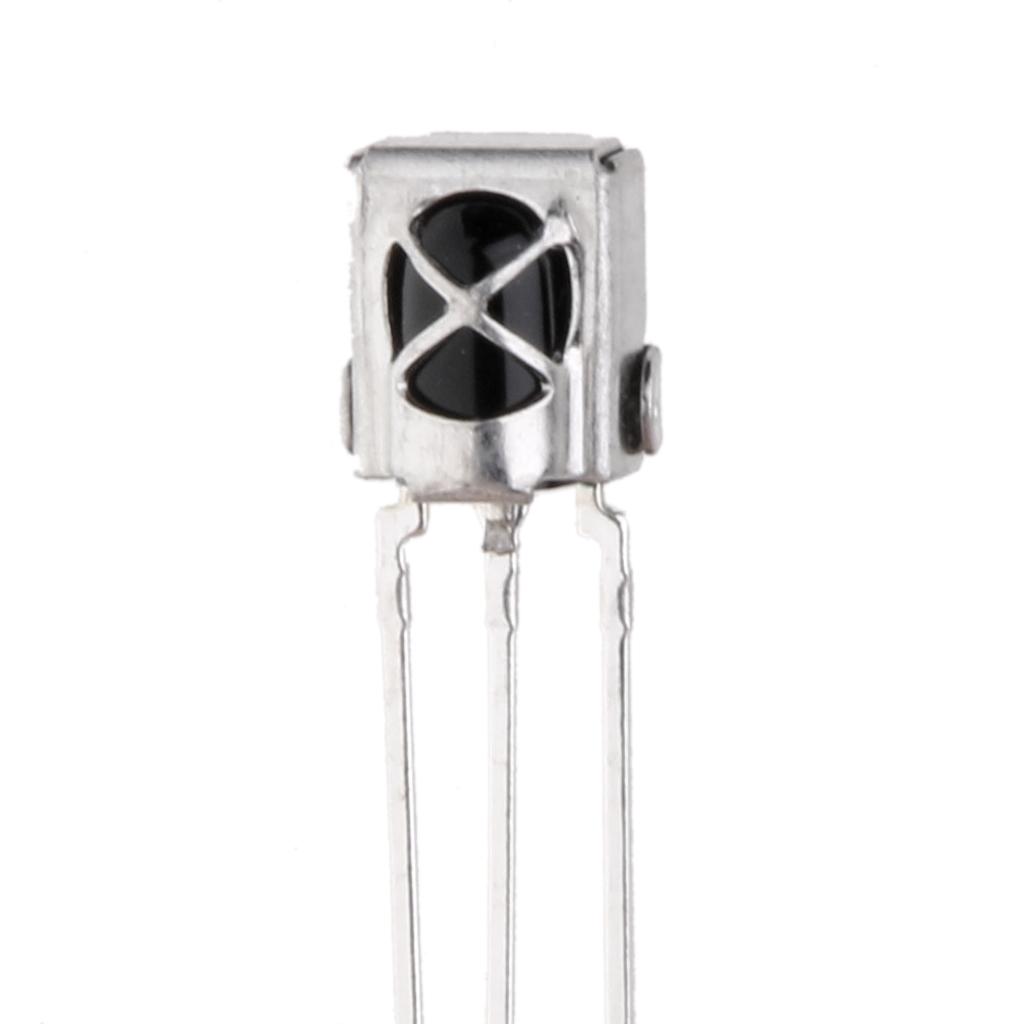

Infrared Receiver:

Model: CHQ1838

Operating Voltage: 2.7-5.5V

Receiving Range: 15-18M

Pin Pitch: 2.53mm

Power: 180mW

Pin Length: 22mm

Size: Approx. 6.7*7.6*4.5mm

Use of environmentally friendly -free materials enclosed internal display, built-in infrared receiver dedicated IC, strong anti-interference, can work under 500LUX light intensity

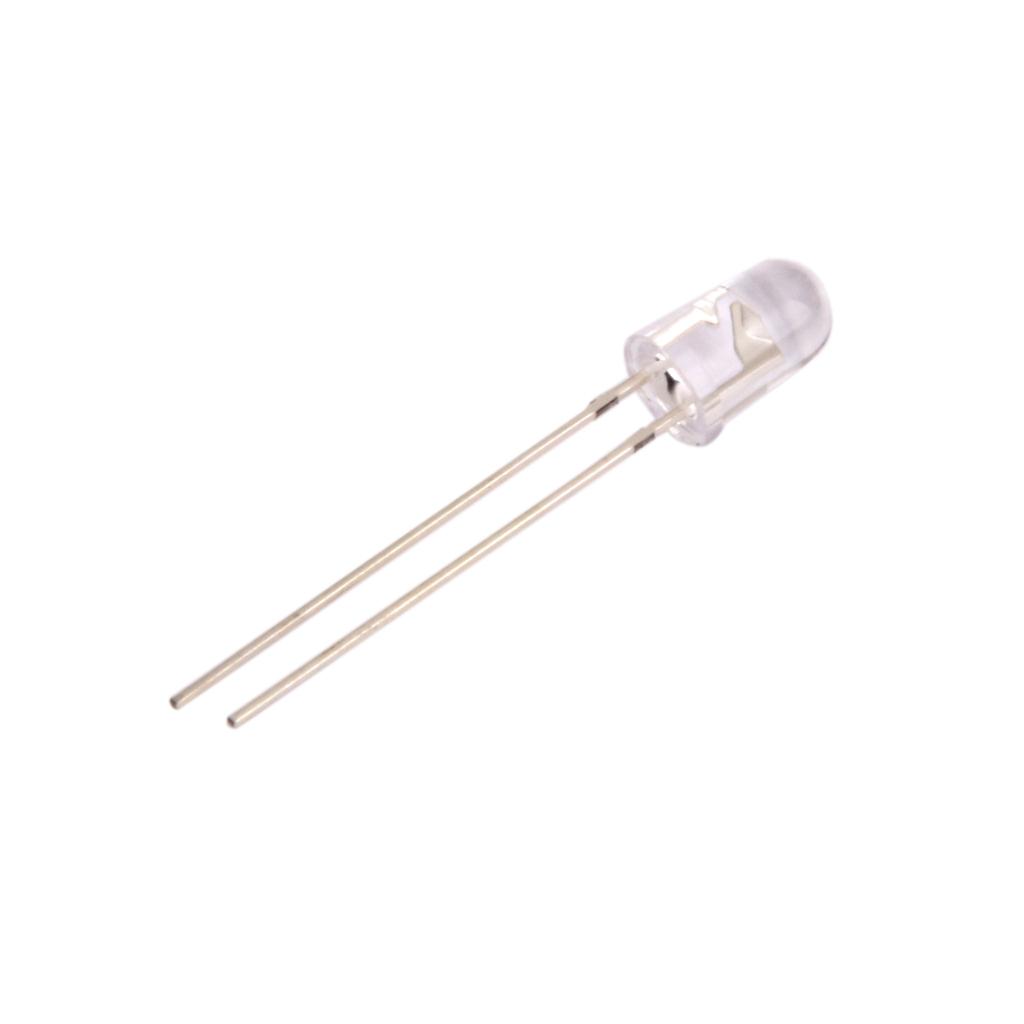

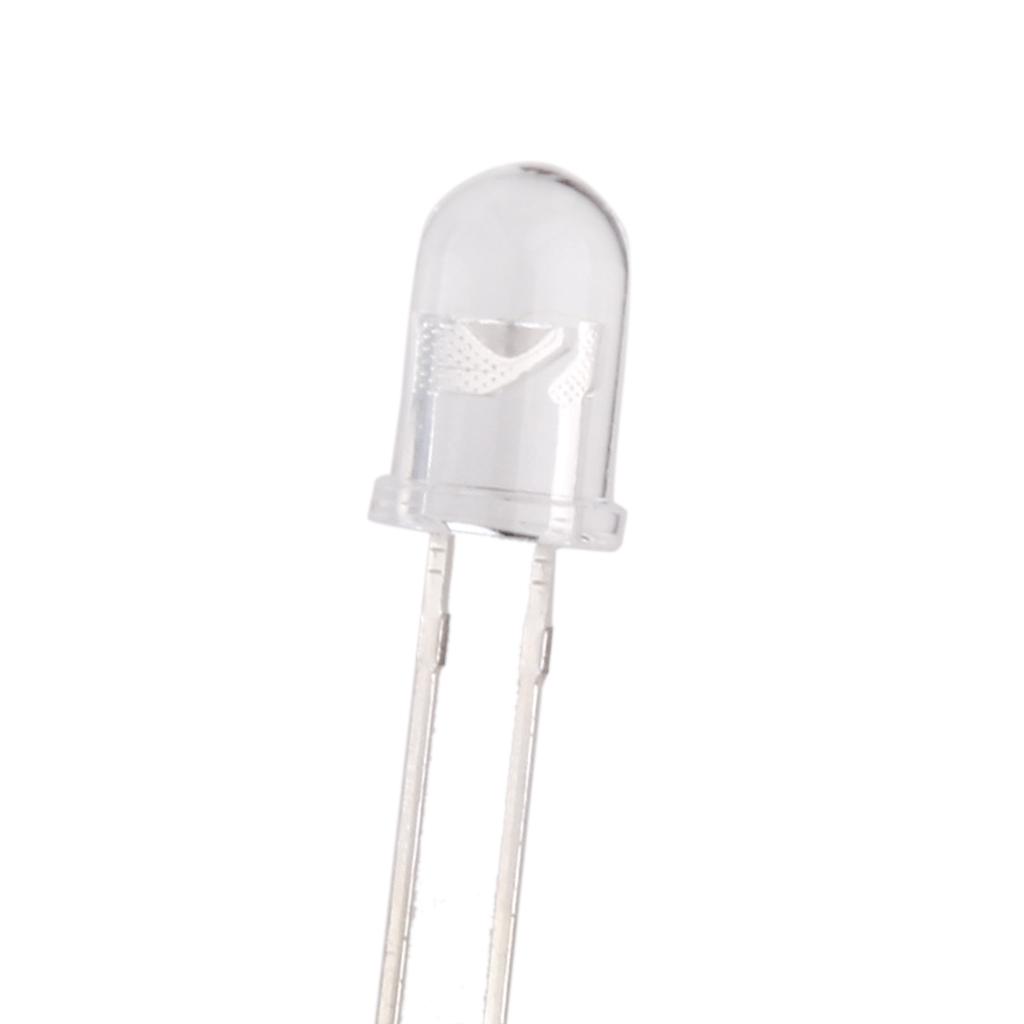

Transmitting Tubes:

Current: 20mA (constant current)

Emission Angle: 20°/45°/60°

Voltage(VF): 1.1-1.4V

length (WD): 940nm

Transmitting Distance: 12--15M

Reverse leakage value: less than 5uA

Span of use: 80,000-100,000 hours

Widely used in Household electrical appliances, TV, audio, air conditionor, toys and infrared remote control receiver.



Package Includes:

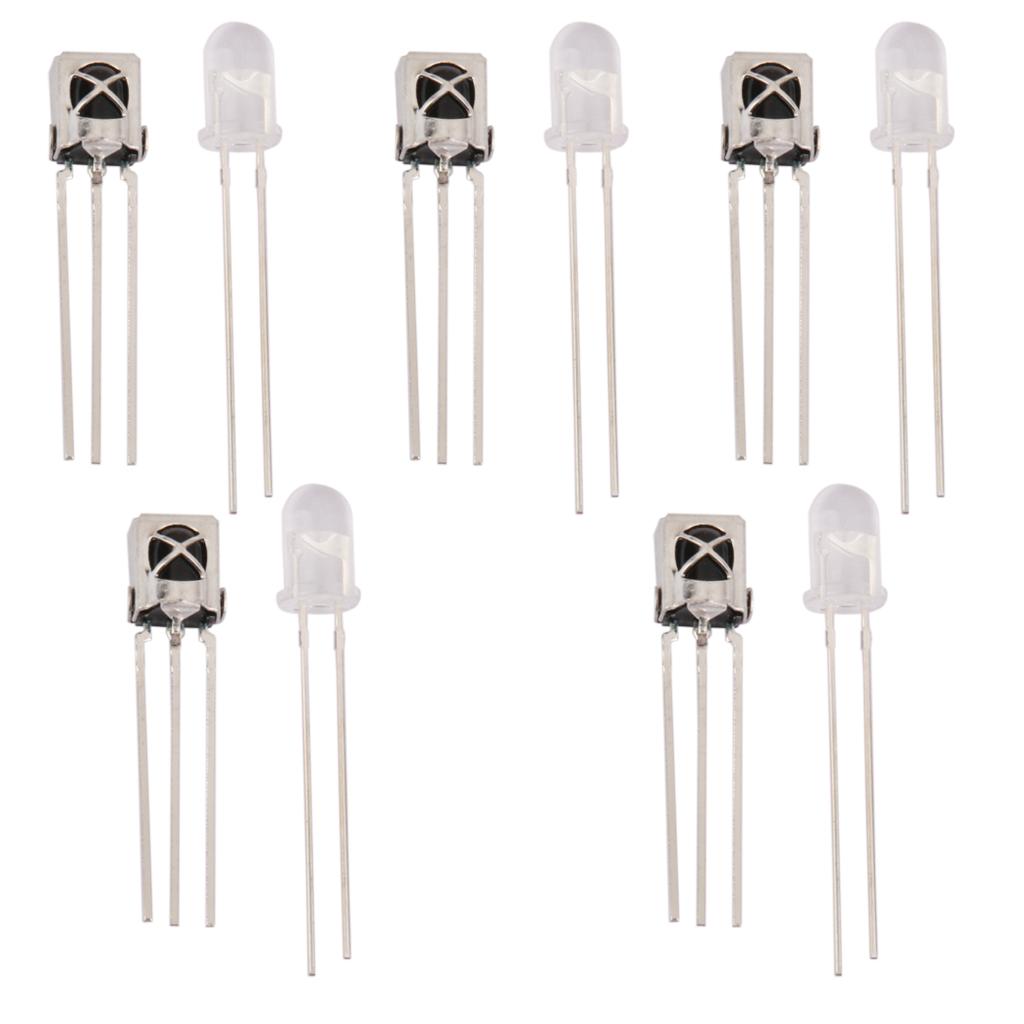

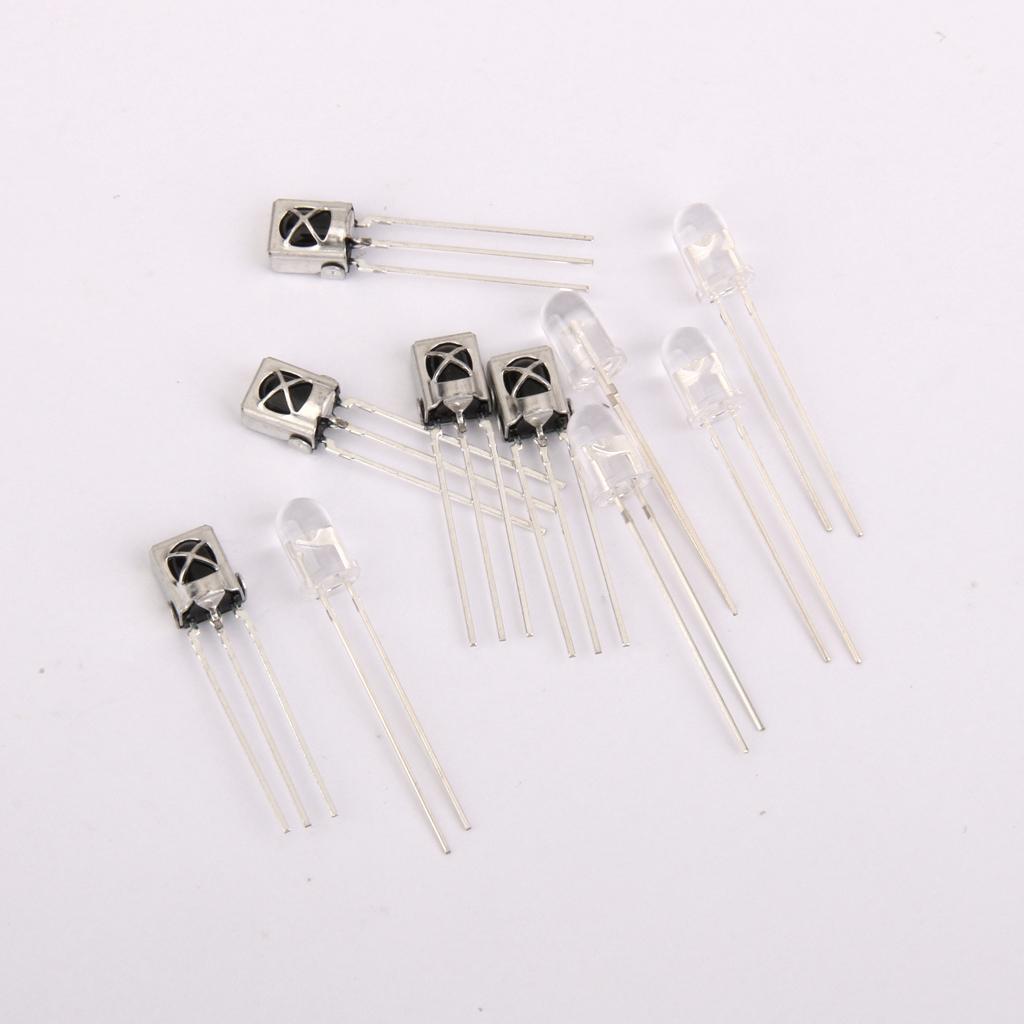

5 Pairs Infrared Receiver Transmitting Tubes
