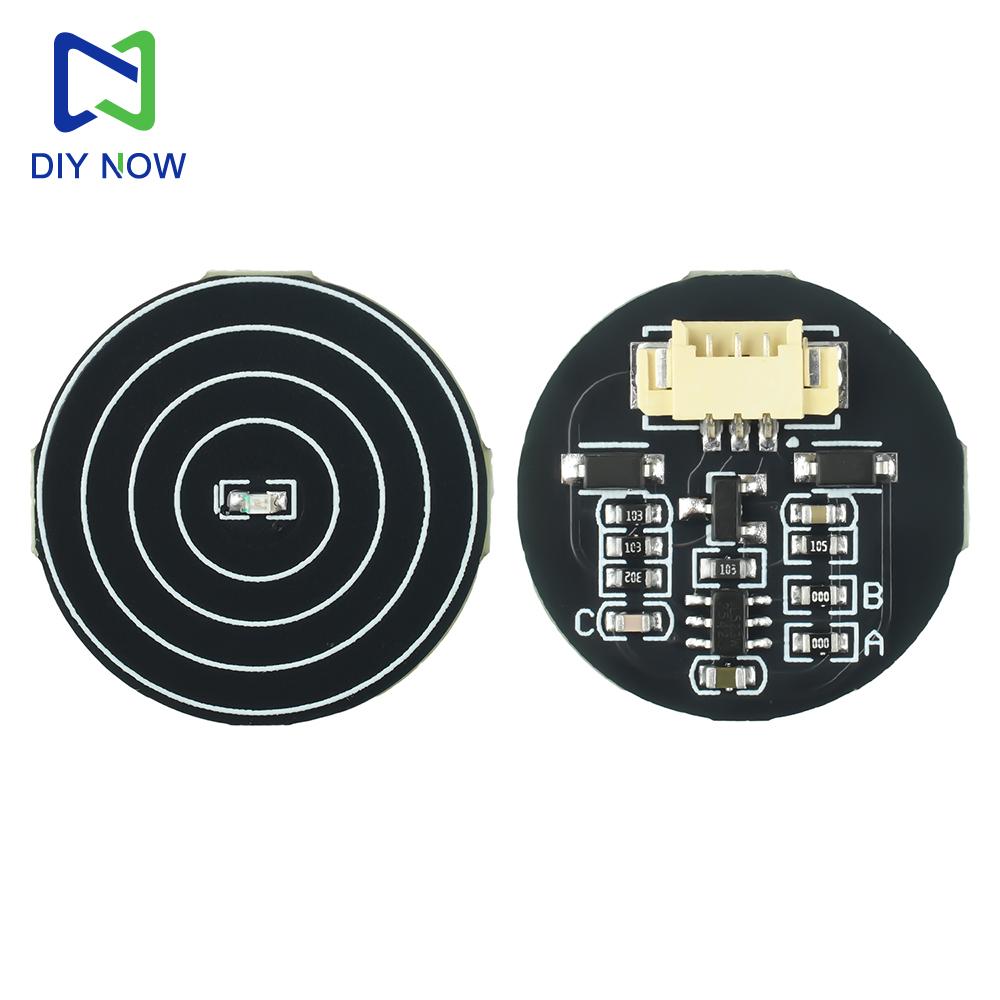

Touch Button Switch Sensor Module DC 3-30V Jog/Latch for Driving Low-Power Household Appliances and LED Lights

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 3-30V Type : Switch Brand Name : DIY NOW Origin : Mainland China Condition : New

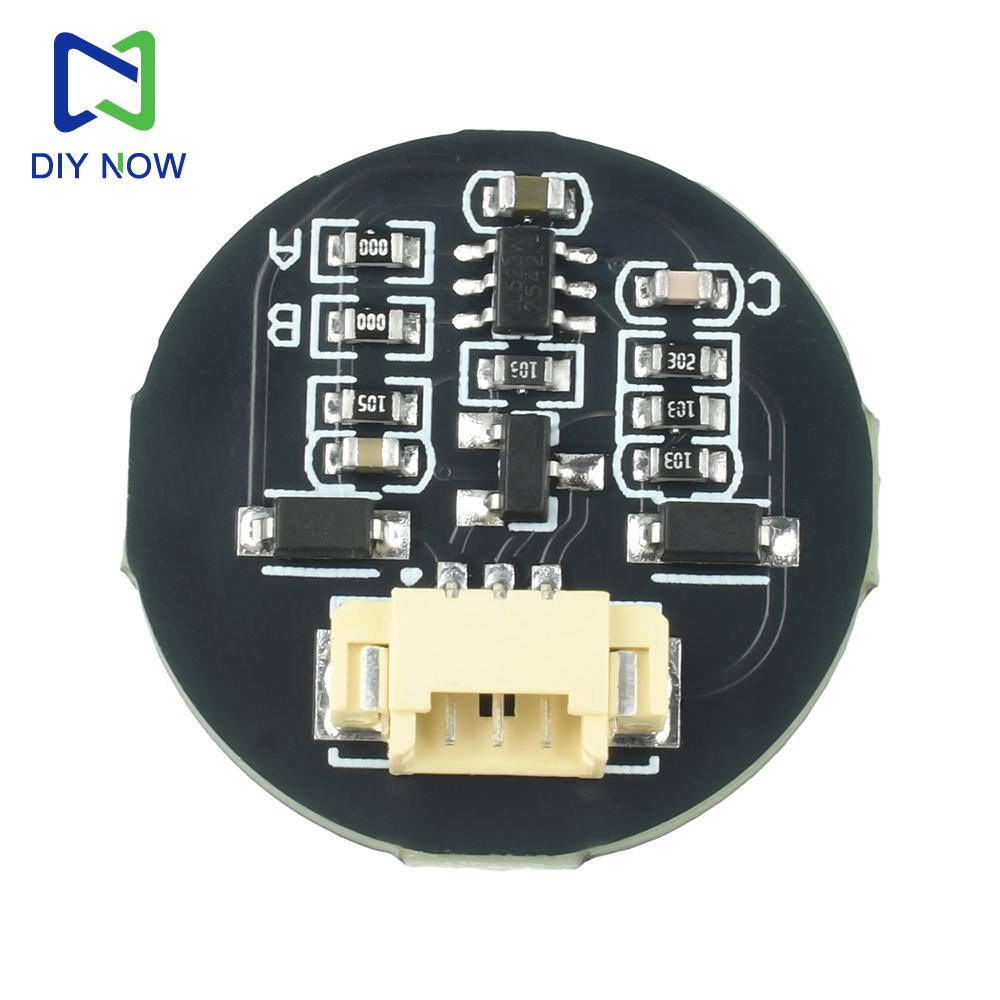

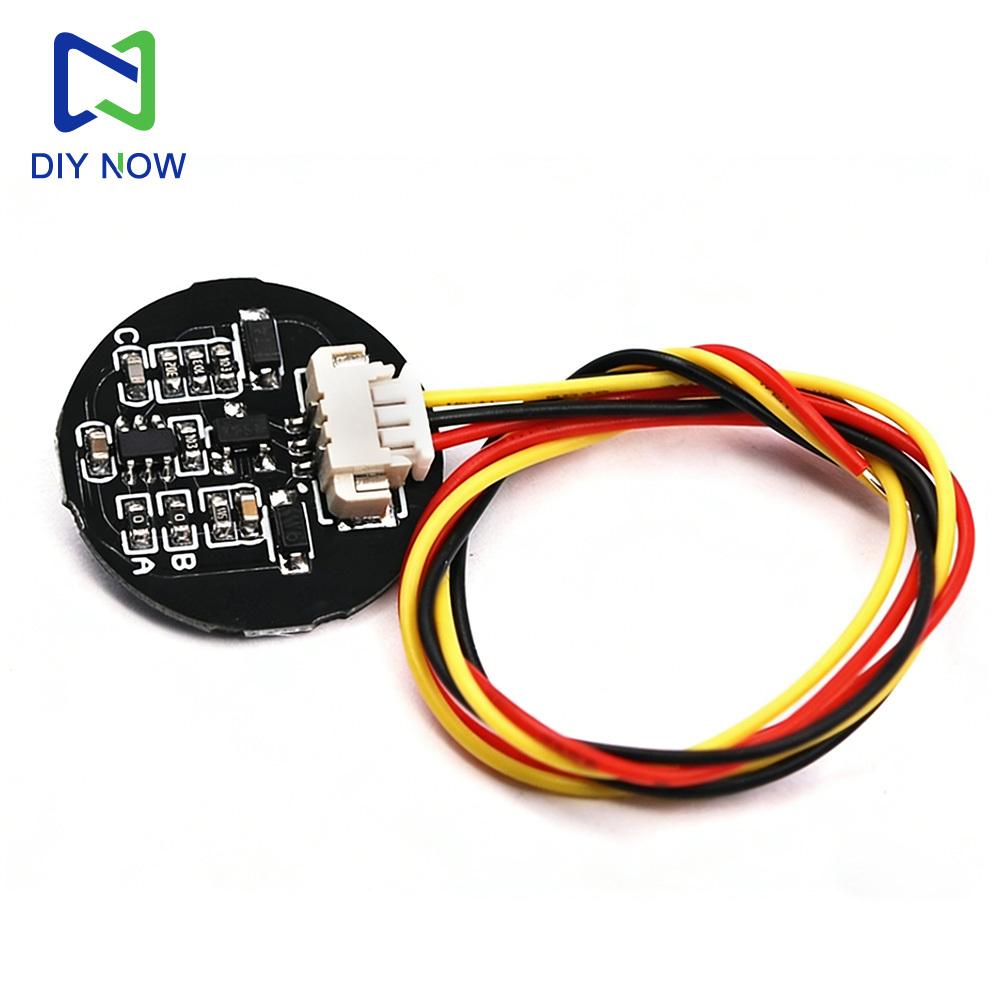

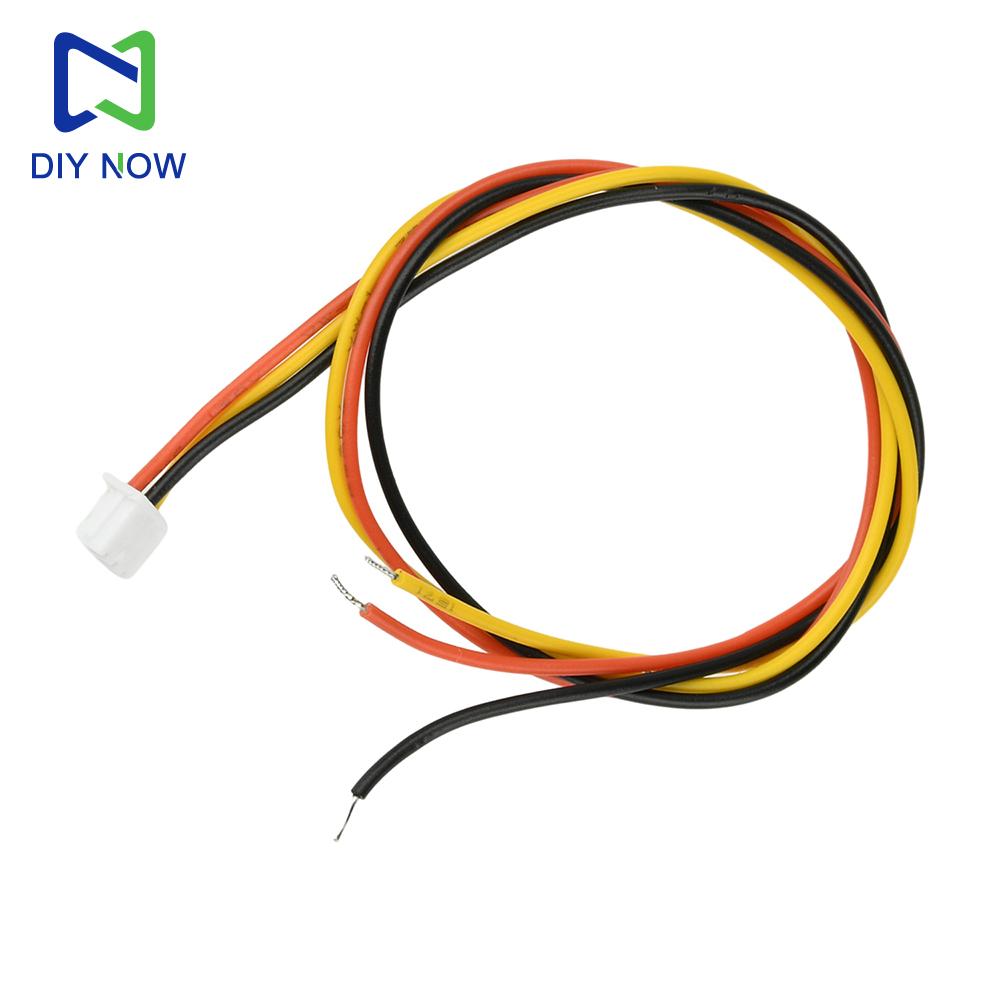

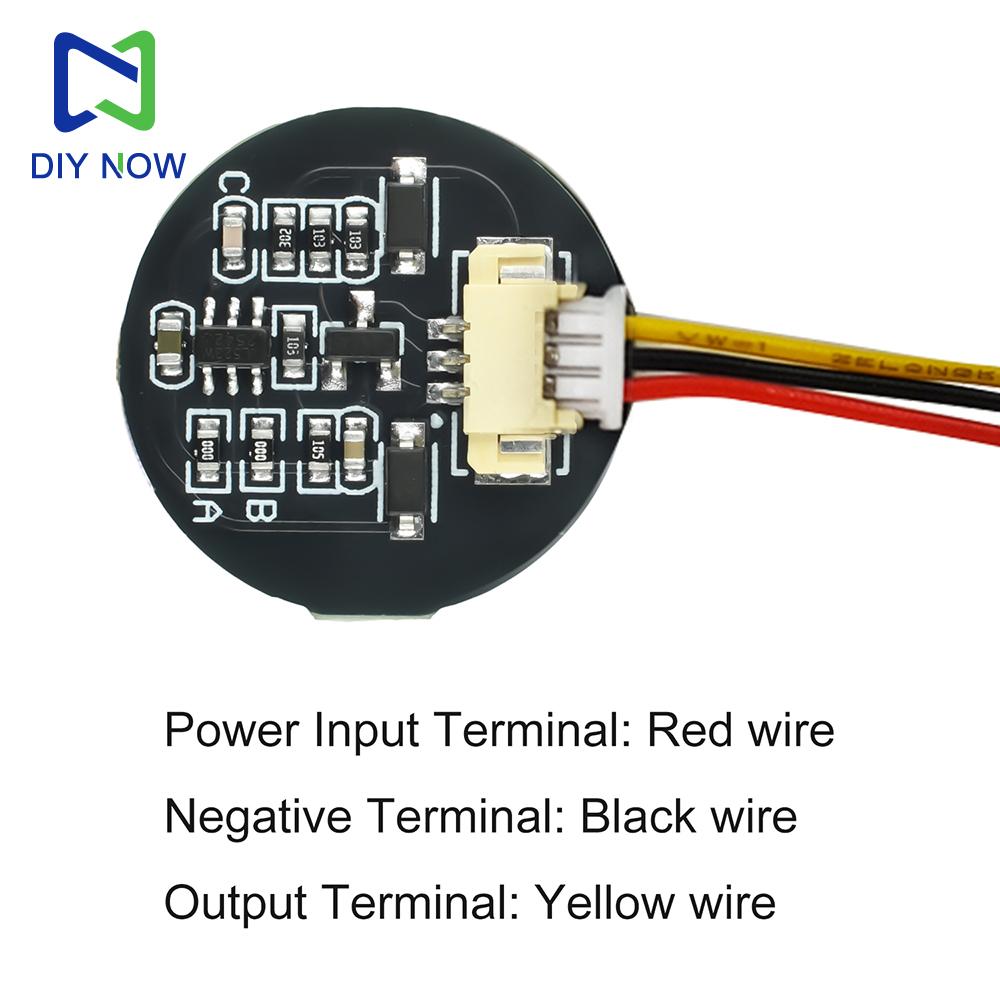

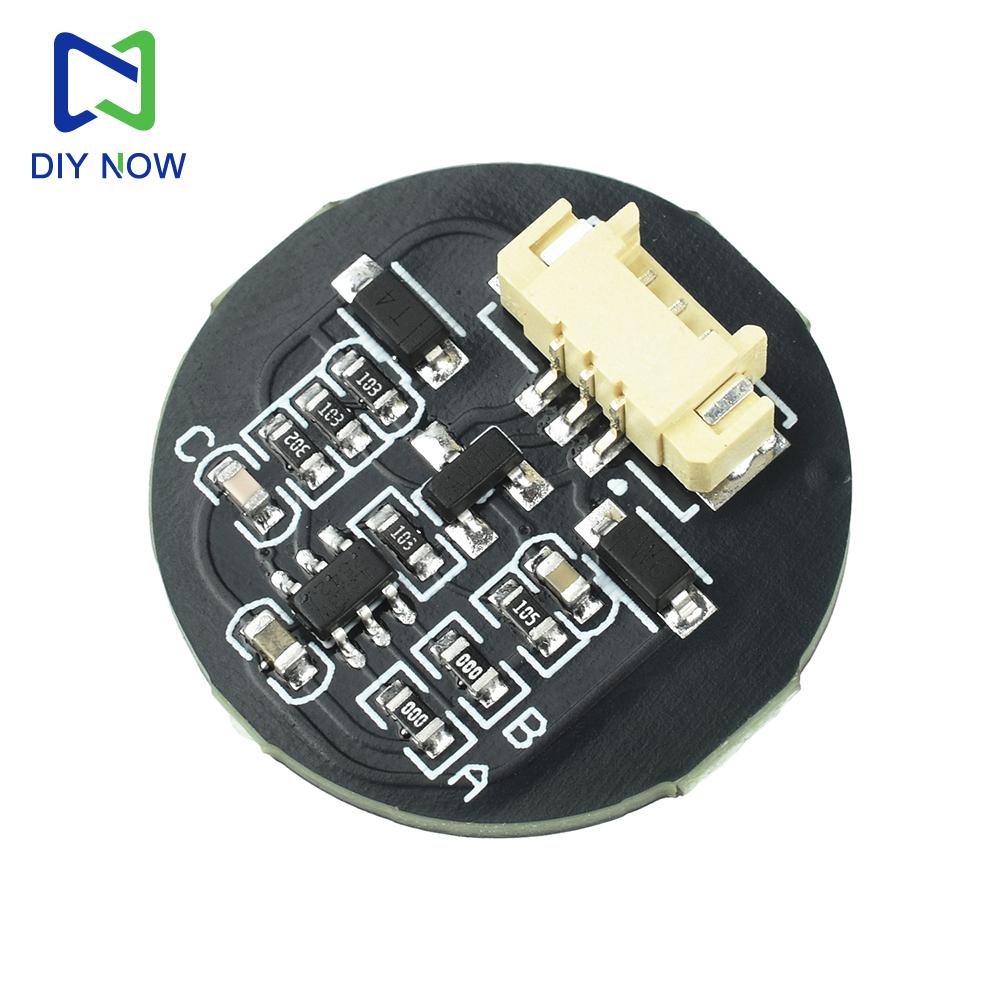

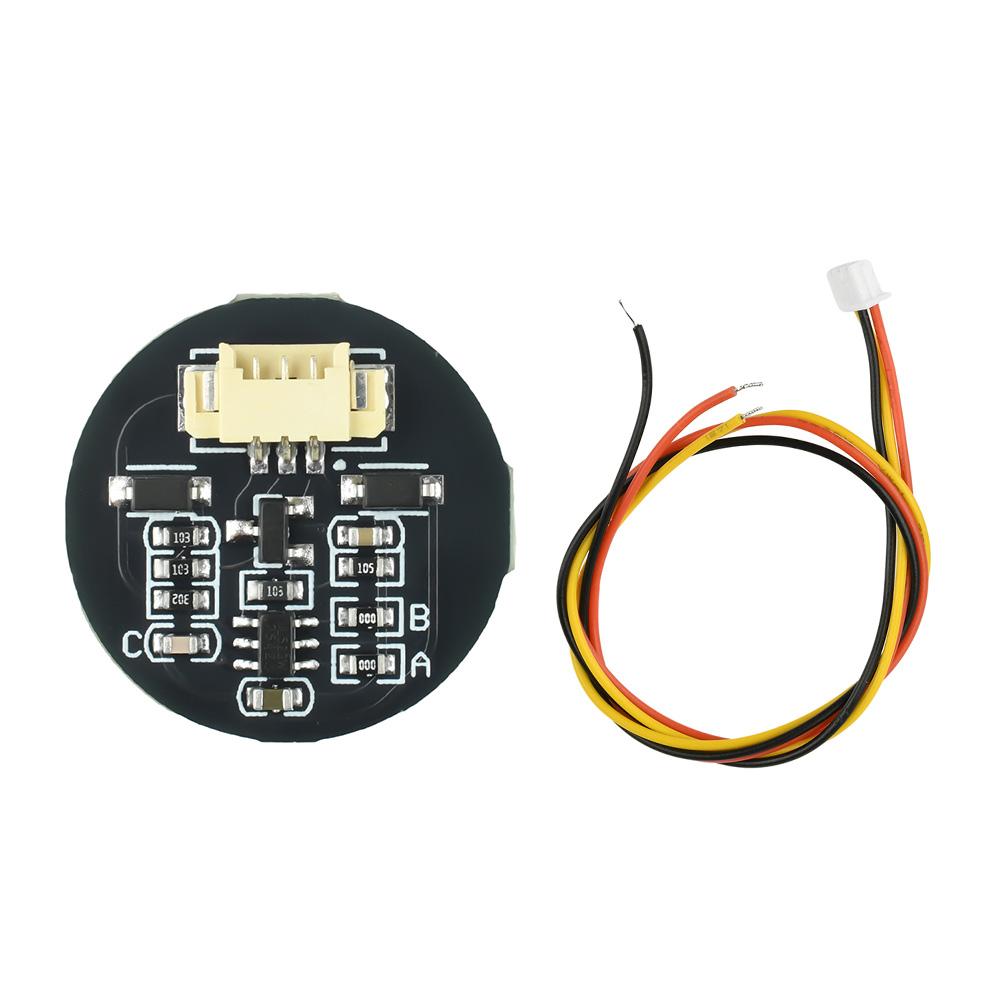

Features 1. Supports 3-30V wide voltage input, compatible with various device power requirements 2. Maximum 2A output current, reliably drives low-power appliances like LED strips 3. Blue indicator light illuminates/extinguishes with switch status, providing real-time device operation feedback 4. 3P standard connector for quick wiring, no complex debugging required 5. Precisely senses different panel materials including acrylic, metal, and thin wood panels Parameter Input Voltage: 3-30V Output Current: 0-2A Sensing Distance: 6-8mm Power-On Output Voltage: = Power Supply Voltage Standby Output Voltage: 0V LED Color: Blue Power-On Status: LED On Standby Status: LED Off Power Input: Red Wire Negative Terminal: Black Wire Output Terminal: Yellow Wire Port: 3P 1.25mm Product Description The module supports 3-30V input voltage control with a maximum output current of 2A. Commonly used for touch switch control in various acrylic panels, enclosures, and thin wood panels, it can directly drive low-power appliances, light strips, LED lights, and similar devices. ABC Three-Point Description A (Default: No 0R Resistor): Output state selection after power-on - Without 0R resistor at Point A: Output is off after power-up - With 0R resistor at Point A: Outputs voltage immediately after power-up B (Default with 0R resistor): Latch Mode / Momentary Mode - With 0R resistor at Point B: Latch Mode (Press once to turn on/off) - Without 0R resistor at Point B: Momentary Mode (Output when touched, no output when released) C: Sensitivity Adjustment Adjusts touch sensing distance. Default is maximum distance (7-8mm). To reduce sensitivity, install a 1~50 pF capacitor based on actual conditions. Smaller capacitors increase sensitivity; larger capacitors decrease sensitivity. PCB default capacitor is 6 pF. Package include Module*1 Wire*1 label:yes
