Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Application : Computer
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
ESP32 : ESP32-CAM
CH340 : CH340G
ESP32-CAM-MB : Development Board
OV2640 Camera : OV2640 21MM
CH340G 1 Set : FT232 1 Set

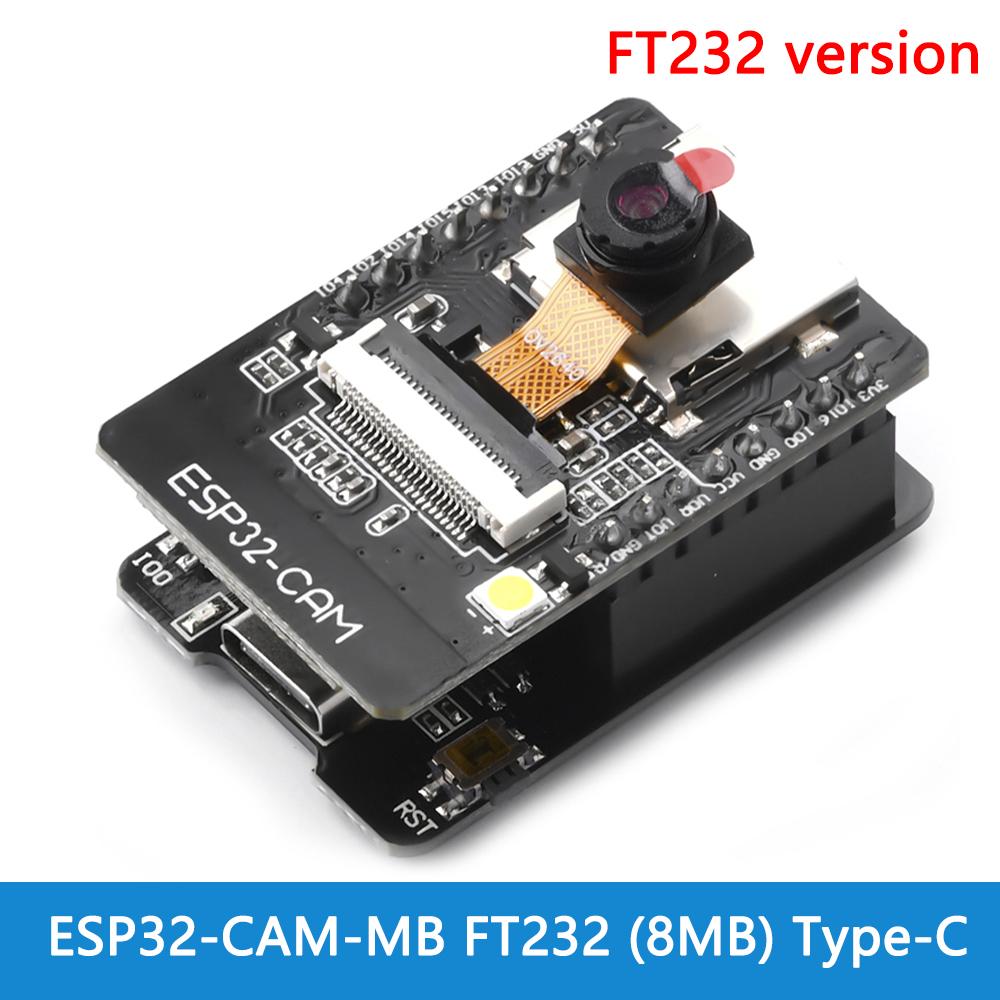

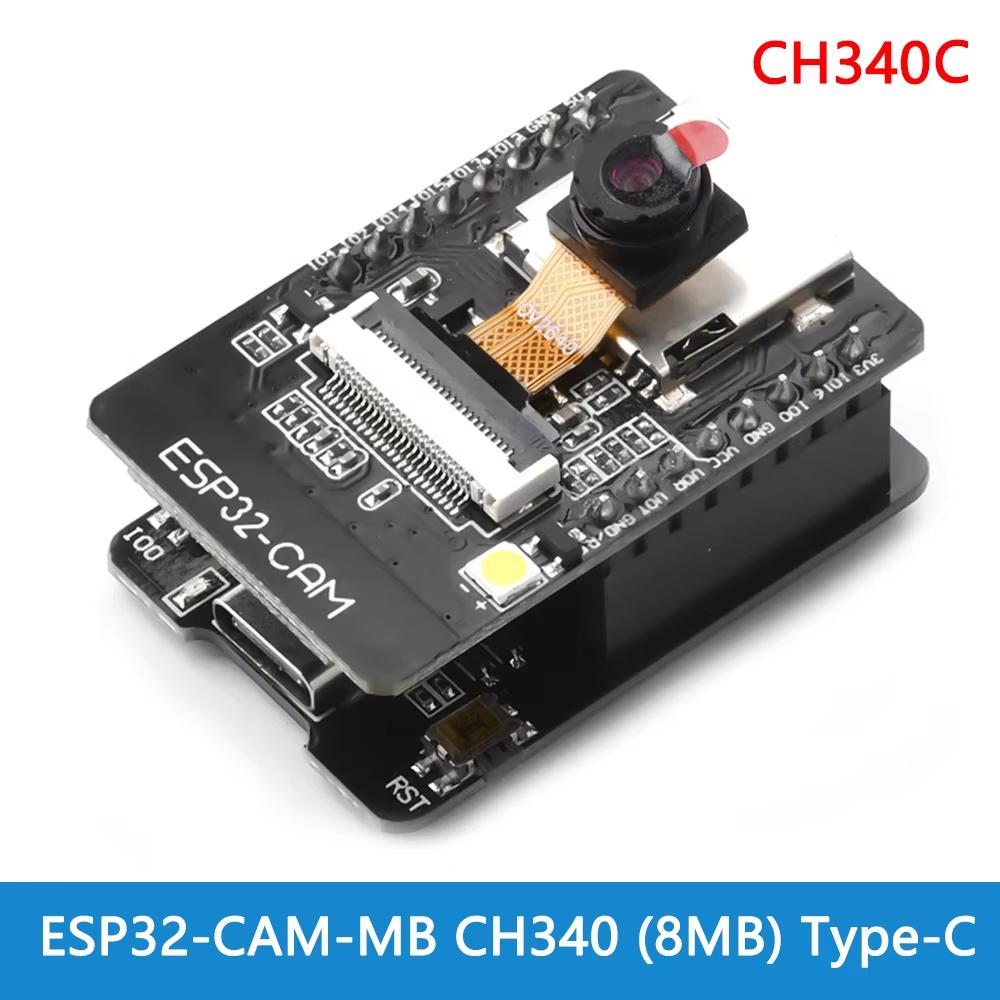

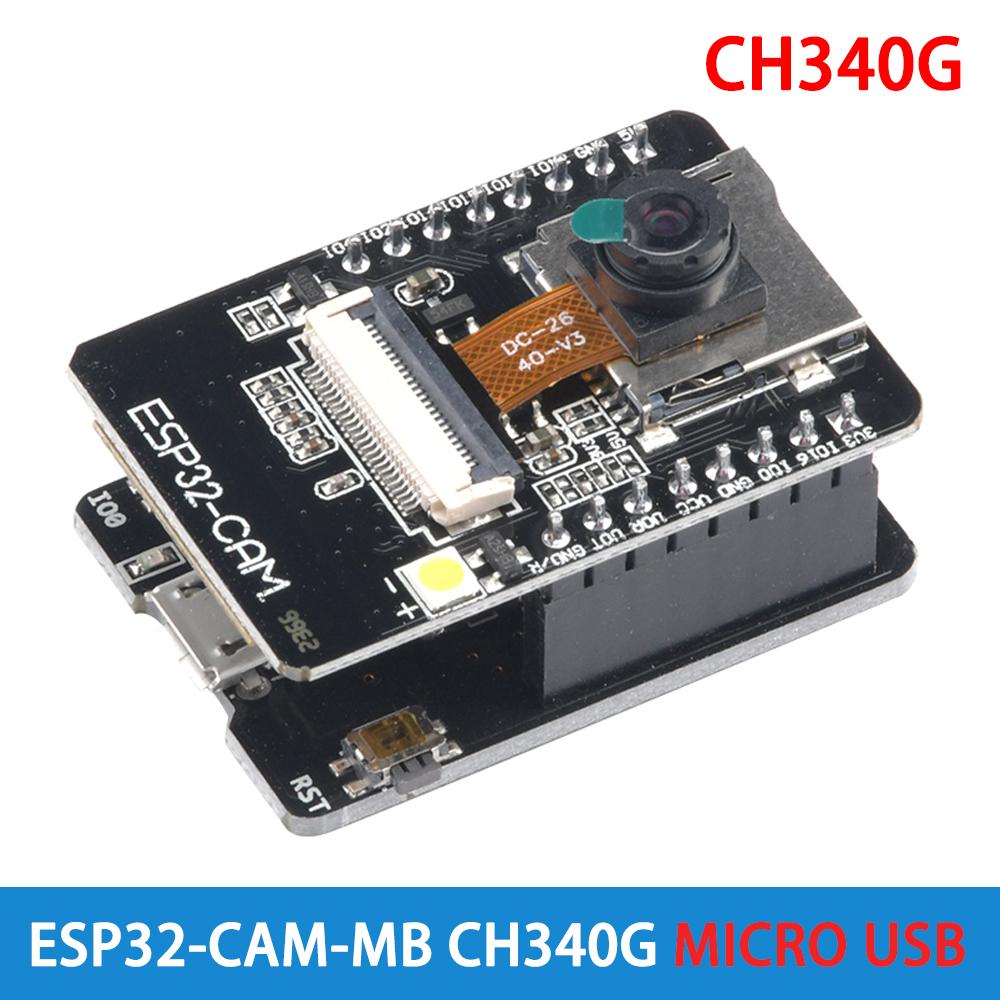

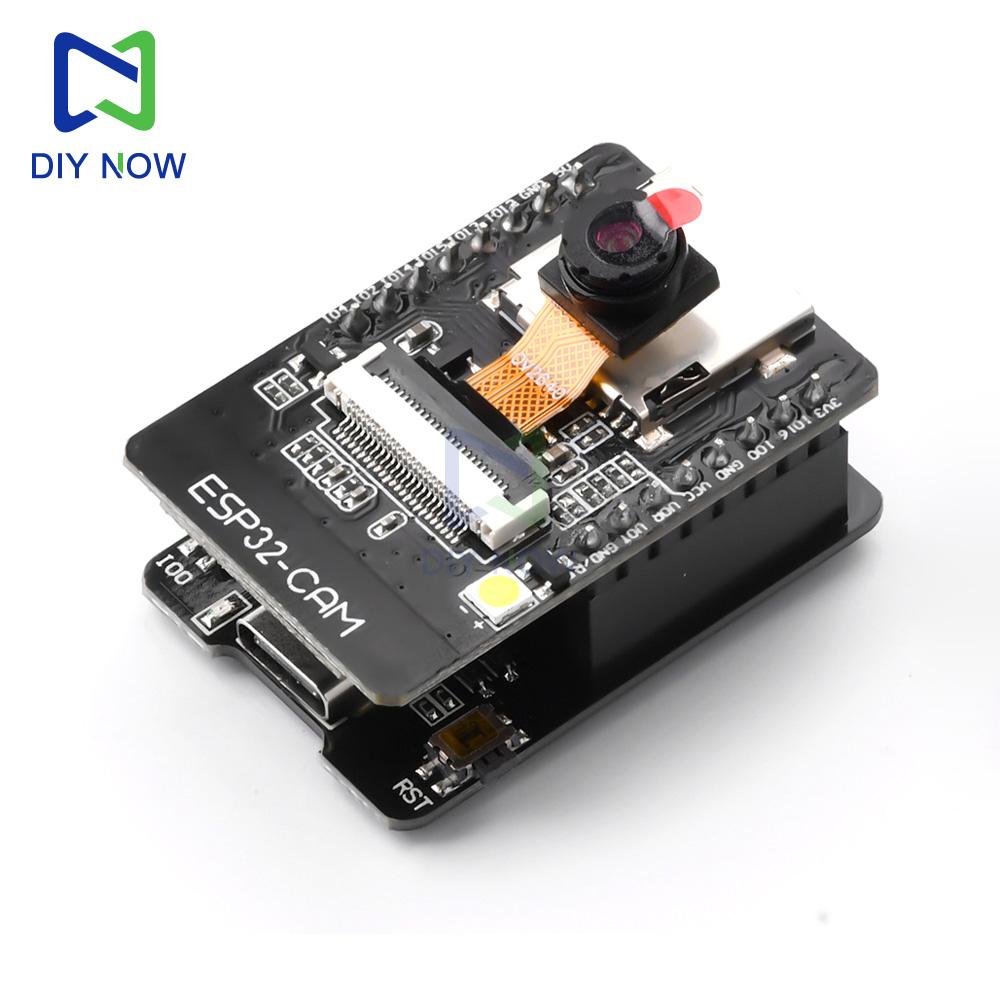

ESP32-CAM WIFI Bluetooth development board OV2640 camera module 2.0MP ESP32-S module CH340 CH340G FT232 Type-C ESP32-CAM-MBFeatures:

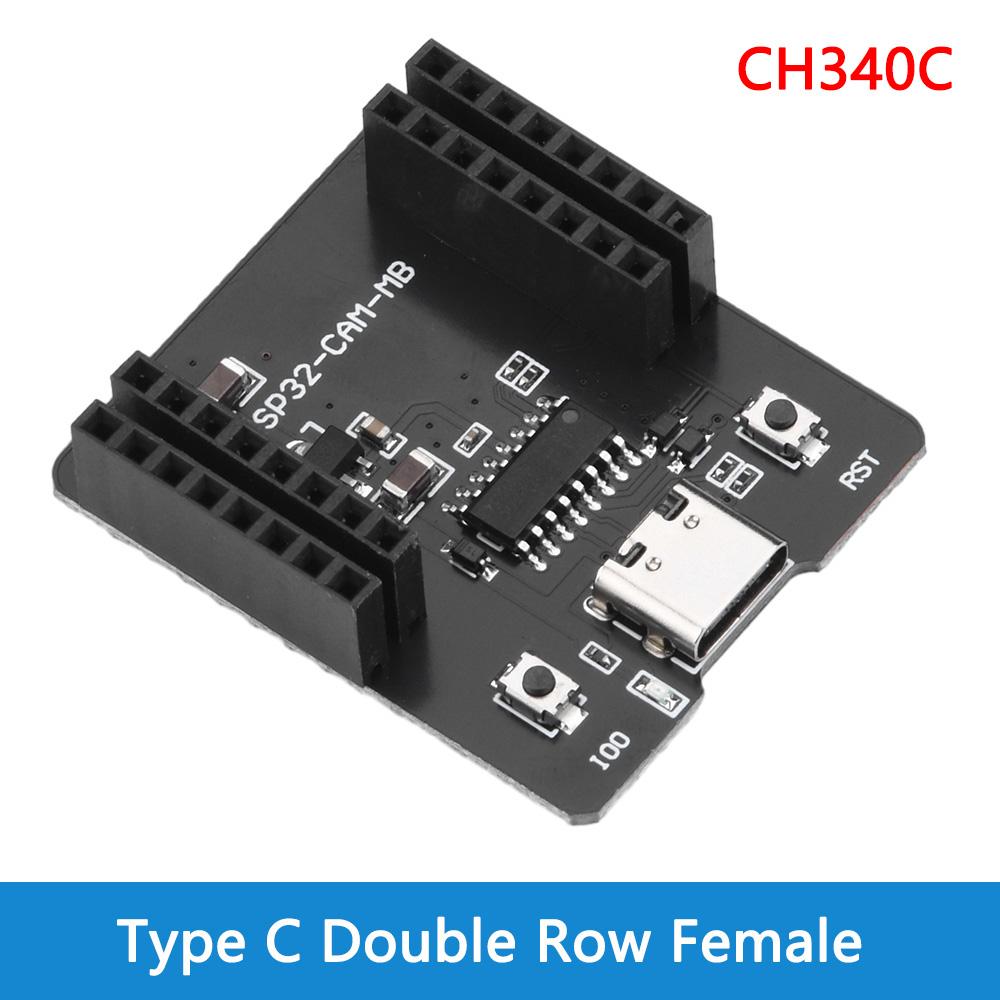

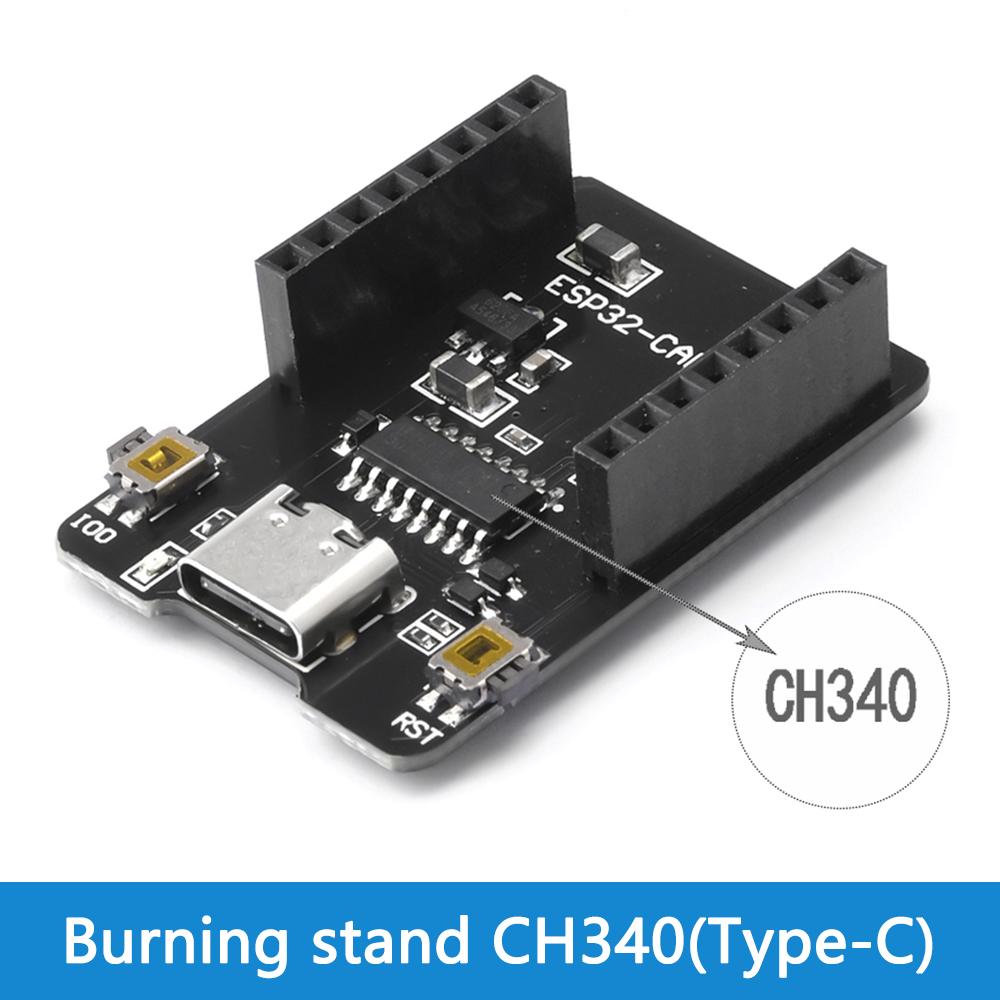

1. This module serves as the program download base for the ESP32-CAM WIFI camera module, eliminating the hassle of wiring;
2. Simply plug the ESP32-CAM into the motherboard and connect the USB Type-C cable to use it;
3. The bottom plate leads out all the pins of the ESP32-CAM module, as well as external wires;
4. Multi functional, can also be used as a regular USB to 3.3V TTL serial port tool without inserting ESP32-CAM;
5.Compact in appearance, suitable for various scenarios and does not take up space.
Parameter:
Color: Black
Interface: Type-C
Main chip: CH340C
Size: 40mm * 33mm * 12mm
Product Features:

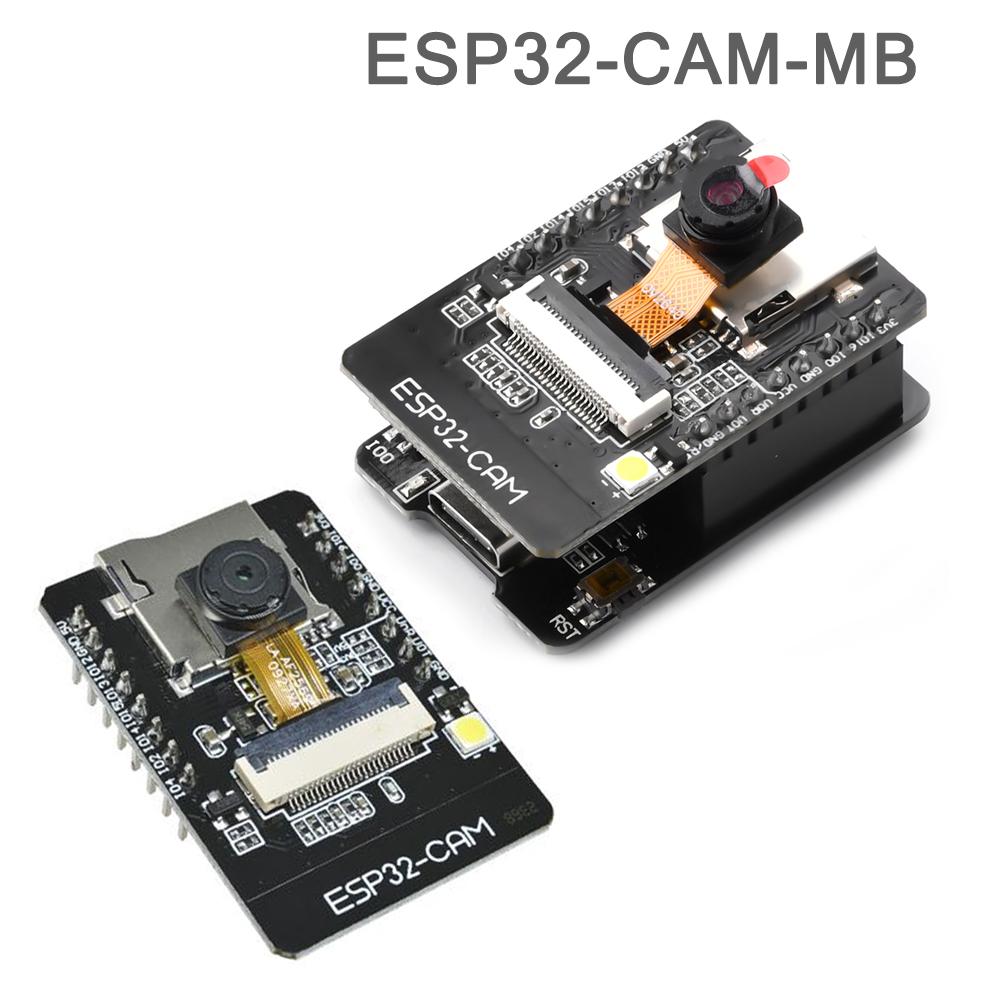

1. This module is a small-sized camera module that can work independently as the smallest system.
2. A new WiFi + Bluetooth dual-mode development board designed based on ESP32, with an onboard PCB antenna, 2 high-performance 32-bit LX6CPUs, a 7-stage pipeline architecture, and a main frequency adjustment range of 80MHz to 240Mhz.
3. ESP32-CAM is an 802.11b/g/n Wi-Fi + BT/BLE SoC module with ultra-low power consumption and a deep sleep current as low as 6mA, so it is suitable for IoT occasions with high power requirements. .
4. Easy to use, ESP32-CAM is a micro module with camera function, equipped with an OV2640 camera, GPIO for connecting peripherals, and a micro-SD card for storing captured images. It can be used by directly plugging into the baseboard.
5. HK-ESP32-CAM-MBEAX uses a Type-C interface, which is convenient and reliable for connection and is used in various IoT hardware terminal occasions.
6.ESP32-CAM can be widely used in various IoT occasions, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
Product parameters:
Working voltage: 4.75-5.25V, 5V recommended
SPIFlash: default 32mbit
RAM: internal 520KB + external 8MB PSRAM
Wi-Fi: 802.11b / G / n / e / i
Bluetooth: Bluetooth 4.2BR/EDR and BLE standards
Support interface (2Mbps): UART, SPI, I2C, PWM
Support TF card: maximum support 4G
IO port: 9
Serial port rate: default 115200bps
Spectrum range: 2400 ~ 2483.5 MHz
Antenna shape: integrated PCB, 2dBi gain
Image output format: JPEG (only supports OV2640), BMP, GRAYSCALE
Transmit power:
802.11b: 17 ± 2dBm (@ 11mbps)
802.11g: 14 ± 2dBm (@ 54mbps)
802.11n: 13 ± 2dBm (@ MCS7)
Receiver sensitivity:
CCK, 1mbps: -90dBm
CCK, 11mbps: -85dBm
6Mbps (1 / 2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2 Mbps): -67dBm
Power consumption:
Flash off: 180mA @ 5V
Flash on and set to maximum brightness: 310mA @ 5V.
Deep sleep: minimum power consumption up to 6mA@5V.
Moderm sleep: minimum power consumption up to 20mA@5V.
Light sleep: minimum power consumption up to 6.7mA@5V.
Security: VPA/VPA2/VPA2-Enterprise/VPS
Operating temperature: -20℃～70℃
Storage environment: -40℃～125℃, <90% RH
Features:
Uses low-power dual-core 32-bit CPU, which can be used as an application processor
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 8MB PSRAM
Supports UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Supports OV2640 and OV7670 cameras, built-in flash
Supports picture WiFI upload
Supports TF card
Supports multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Applications:
Smart home device image transmission
Wireless monitoring
Smart agriculture
Wireless QR code recognition
Wireless positioning system signal
And other IoT applications
