Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Supply Voltage : 5V
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Features:
1. Suitable for teaching and practical training of electronic technology fundamentals and skills.
2. Improve welding level and speed, suitable for DIY enthusiasts.
3. Stable performance, long life, and guaranteed quality of use.
4. Includes a complete set of components and drawings, making it convenient for customers to weld and install on their own.
5. Supports C interface and serial port code burning, with strong scalability.
Product Introduction:

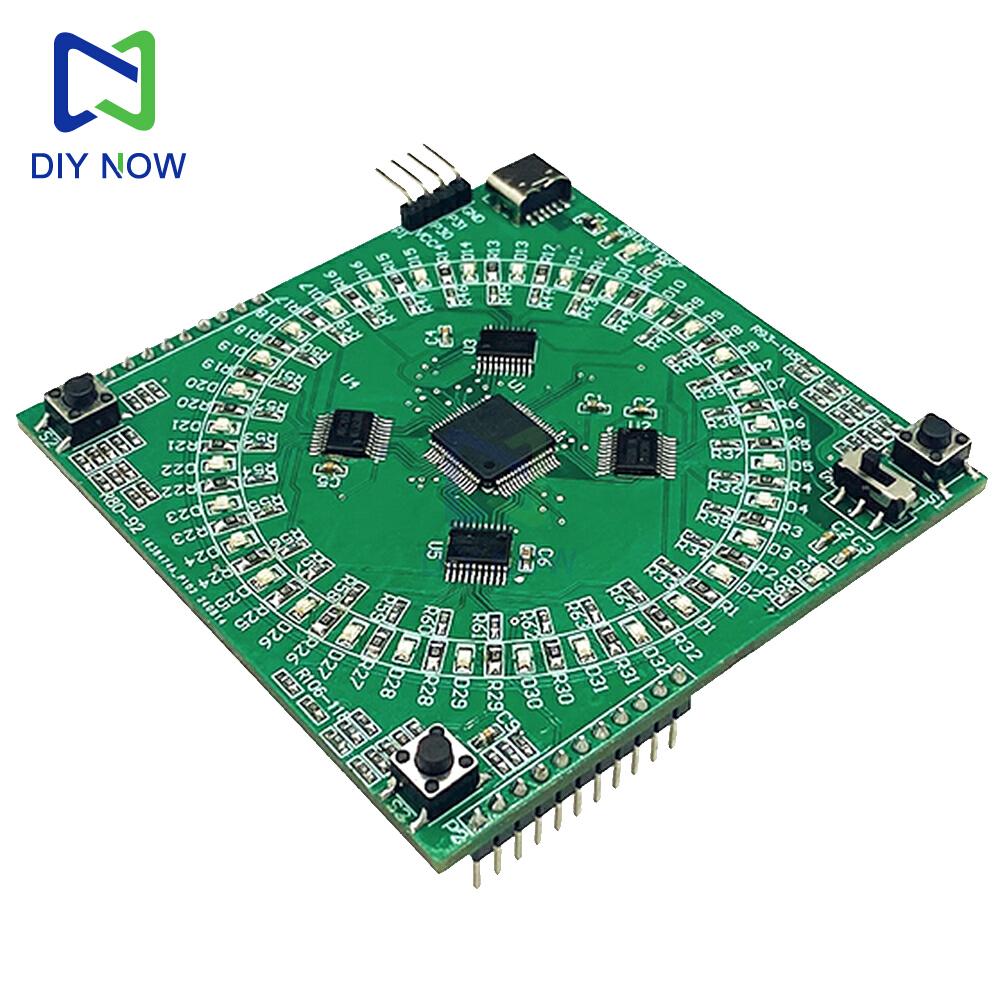

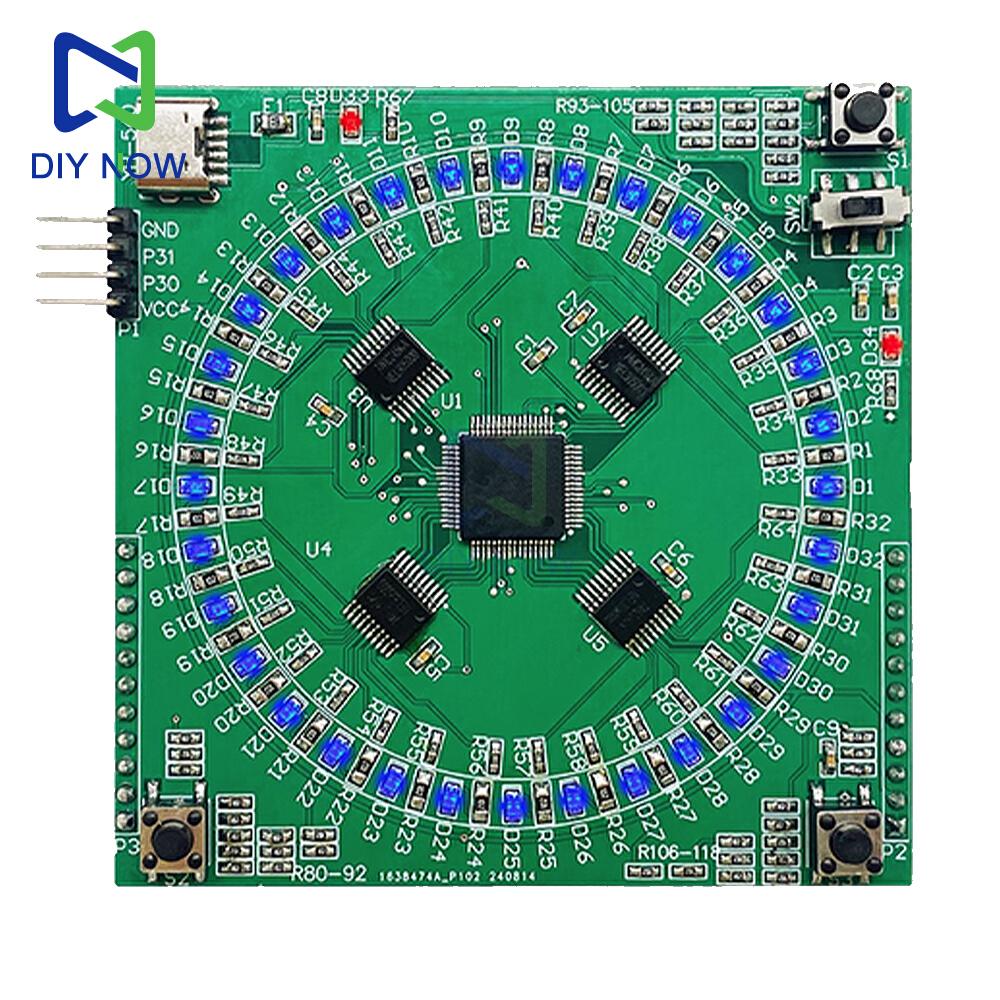

This kit can be used for teaching and training electronic technology fundamentals and skills, electronic skills teaching, electronic technology teaching, digital circuit teaching, and practical training for electronic enthusiasts and beginners. The kit includes a complete set of components, circuit boards, supporting drawings, and component lists. (Note: The kit is not a finished product and needs to be welded and installed by the customer themselves!)
Parameter:
Interface: Type C interface
Supply voltage: 5V

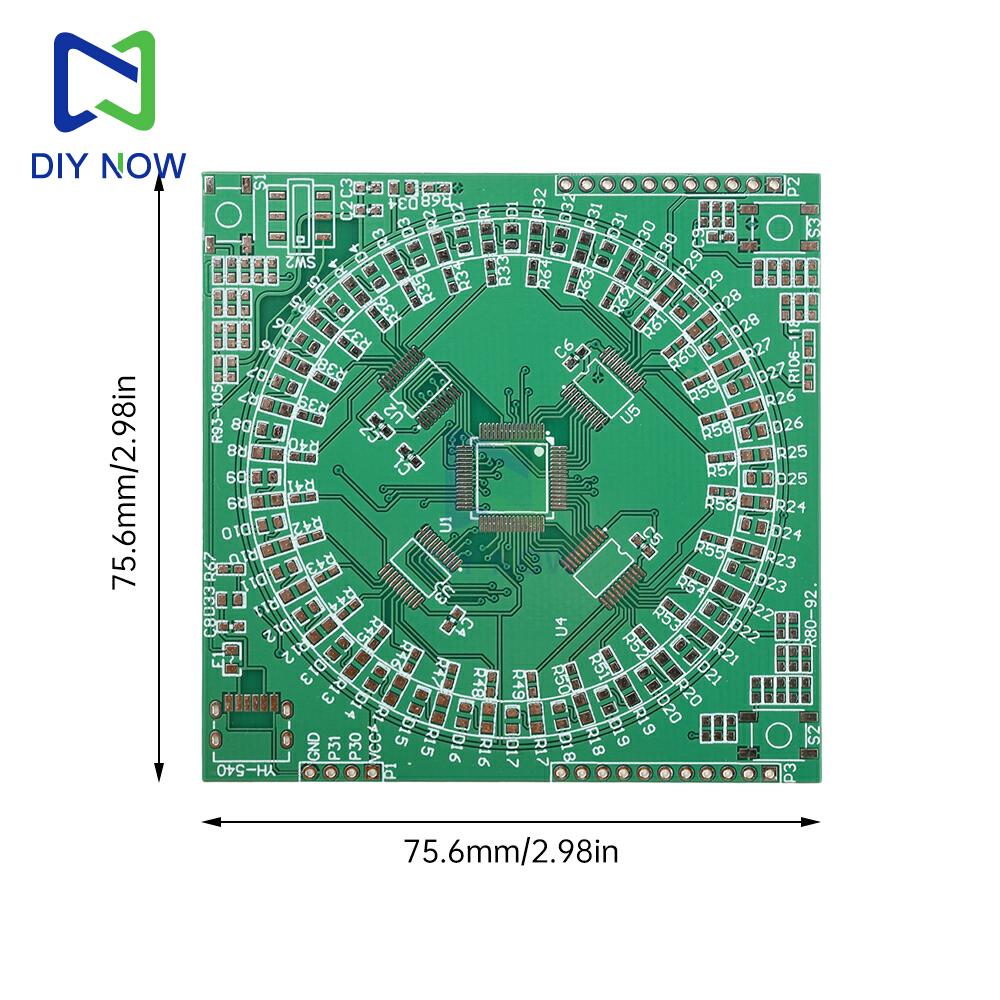

Product size: 75 * 75mm
Welding instructions:
1.LED、 Chips have direction. LED identification cathode, chip identification pin
2. Capacitors, resistors, fuses, and switches have no direction. Pay attention to distinguishing parameters and avoid errors
3. Type-C port soldering is somewhat difficult, and a pin bank can be used to supply 5V power. First, check other parts of the circuit
The holes on both sides are for the later expansion of the LED dot matrix module,
5. If you burn code yourself, you can use the C interface or the serial port to complete it, pay attention to the operating procedures

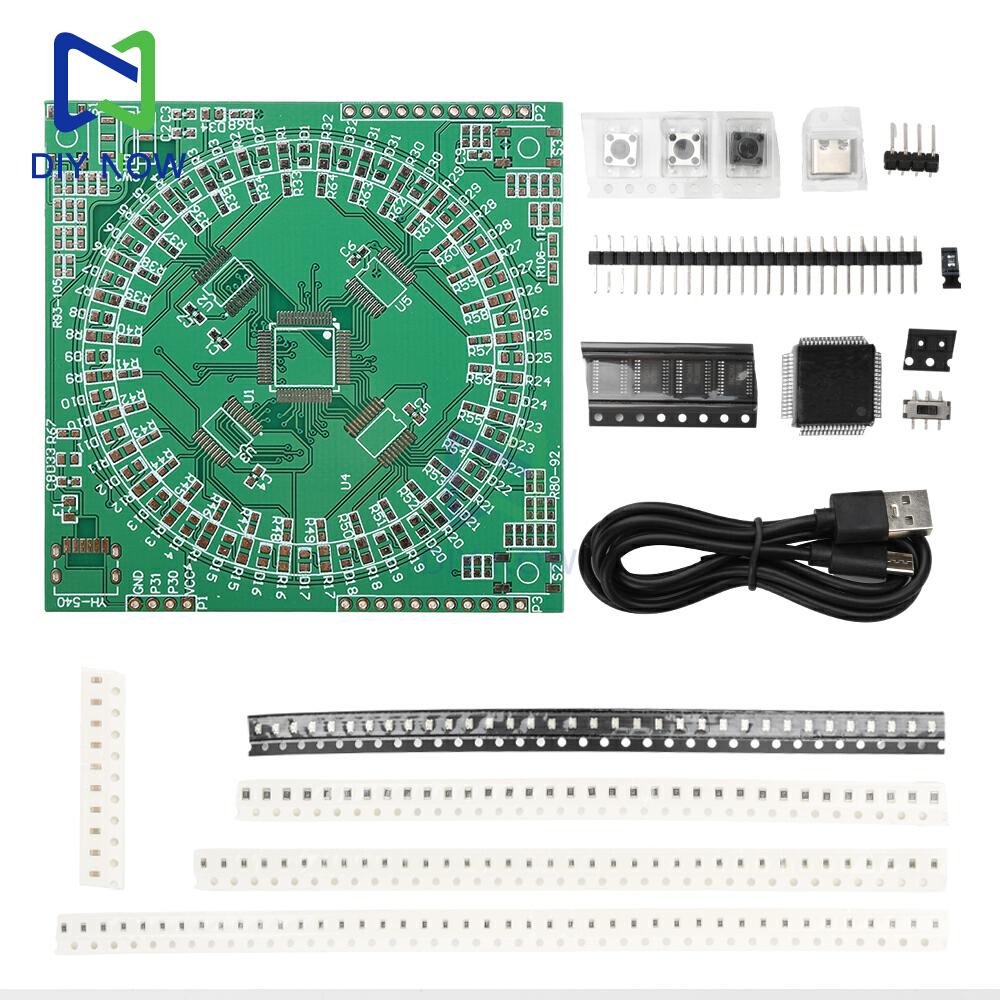

Package Include:
DIY kit parts X1
label:yes
