Charger included : N
Battery Included : no
High-concerned chemical : none
Accessory Type : Charger Accessories
Brand Name : occkic
Origin : Mainland China
Features:
1. Multi-protocol compatibility: Supports mainstream fast charging protocols such as PD and QC series, with intelligent automatic identification and matching
2. Flexible switching design: Type-C interface + shorting pad, allowing easy adjustment of output voltage
3. Multi-scenario applications: Suitable for professional fields such as automotive, energy storage, and industrial testing
4. Automatic handshake stability: Protocol priority adaptive, ensuring efficient fast charging output for devices
5. High Current Support: Maximum 5A current, requires a compatible power supply to ensure efficient power delivery
Parameter:
Product Name: Fast Charging Module
Interface: Type-C interface
Output Voltage:

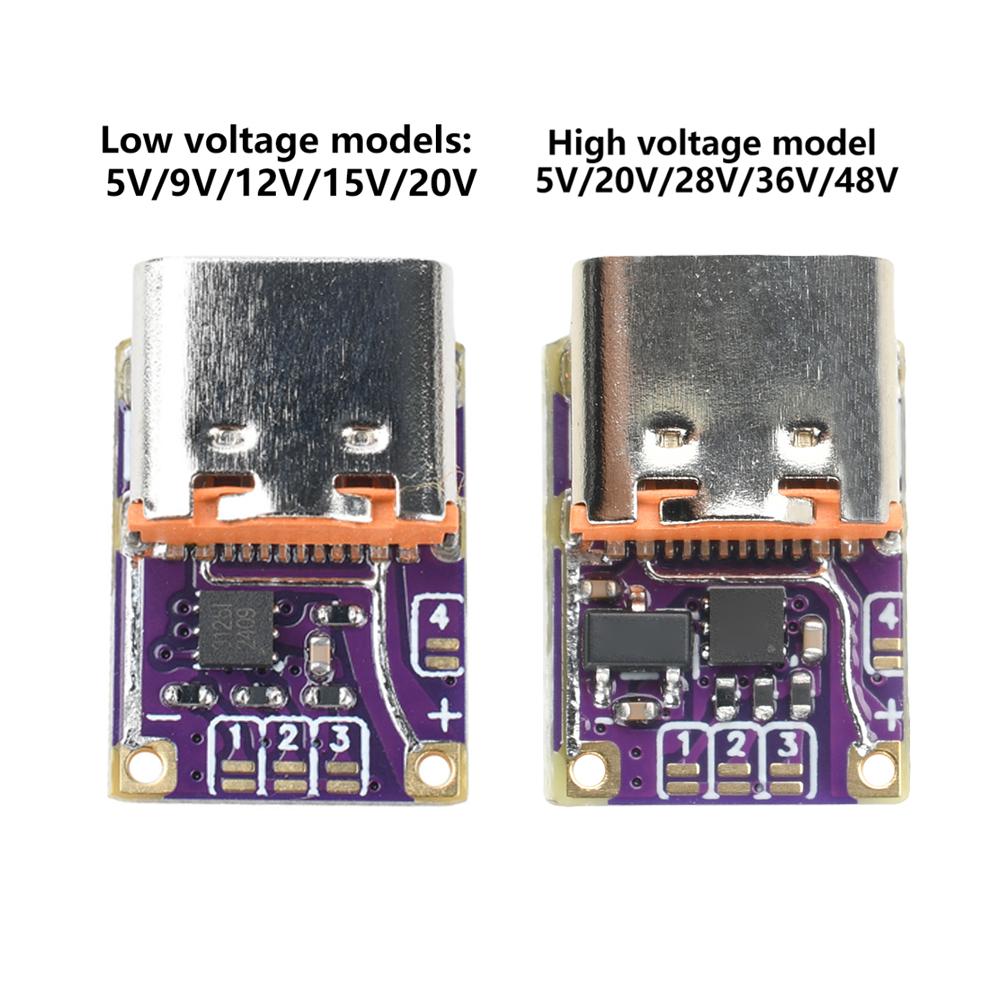

Low-Voltage Model: DC 5V/9V/12V/15V/20V (default 5V output, other voltages can be switched via the shorting pad)
High-voltage version: DC 5V/20V/28V/36V/48V (default 5V output, other voltages can be switched via shorting pads)
Current: 5A (maximum), requires a power adapter or a power bank supporting the corresponding protocol
Supported Protocols: PD 2.0, PD 3.0, PD 3.1, QC 2.0, QC 3.0, QC 4, QC 5
Application Scope: Easy to use, widely applicable for wireless charging, Bluetooth speakers, in-vehicle devices, energy storage, industrial testing, and other applications
Description:

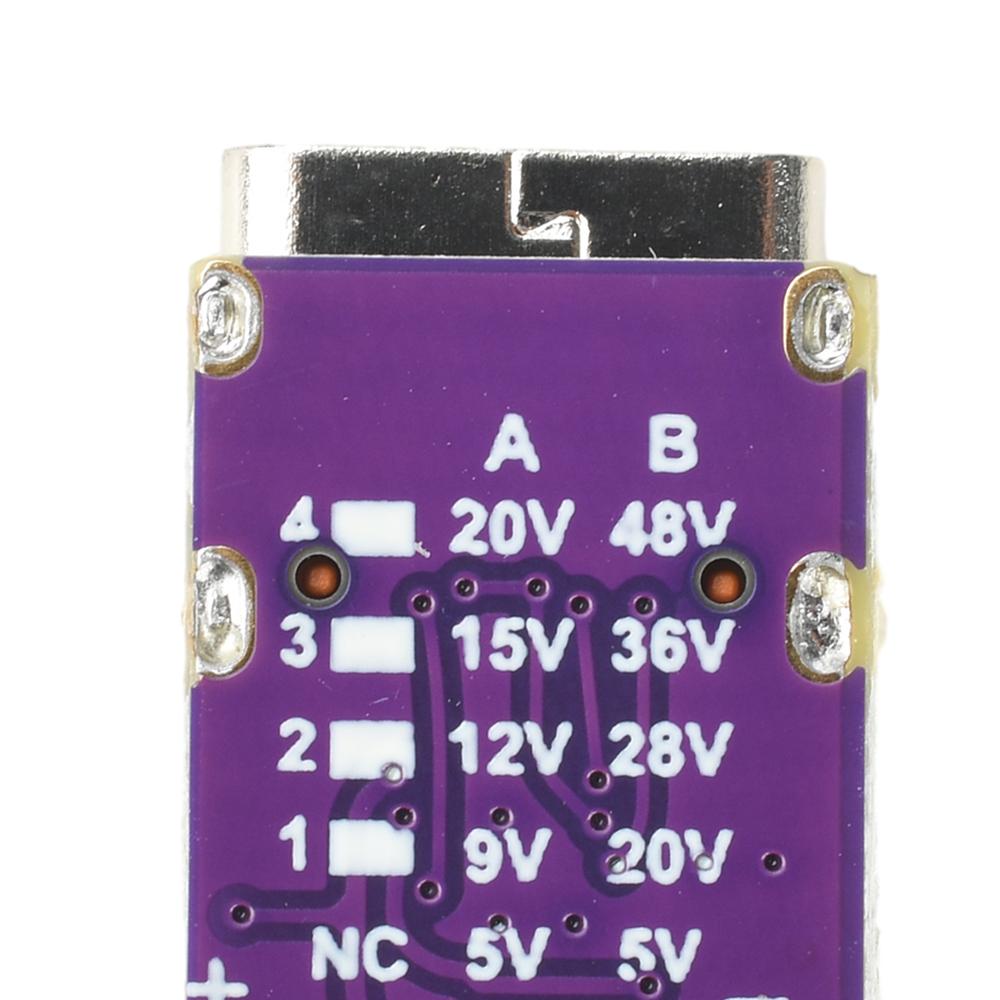

The module features a high-current design, capable of delivering up to 5A output current, and offers robust compatibility with fast-charging protocols such as PD 3.1 and QC 2.0. It can easily trick the charger into outputting the corresponding voltage and supports output voltages of 5V/9V/12V/15V/20V/28V/36V/48V. The module defaults to standard 5V output and uses a short-circuit switch for voltage selection. Users can manually short-circuit the switch to select the desired voltage. The module has downward compatibility; if the power supply device does not support the set voltage, it will output the closest available voltage.
It adheres to protocol priority, automatically establishes a connection with the charger, and outputs the pre-set voltage. The decoder output cannot directly charge a phone. Please confirm that the output voltage matches the charging device's voltage requirements before charging.
Explanation:
For example, when the customer selects a 9V output fish bait, the front power head must comply with the PD9V or QC9V protocol; when the customer selects a 20V output fish bait, the front power head must comply with the PD9V or QC20V protocol.
Note:
The module does not have a step-up/step-down function. The power supply equipment must support the corresponding voltage in order to induce the corresponding voltage.
Package include:
Module x1
label:yes
Connector type: type-c
GaN support: no
Plug type: European socket
Number of ports: 1 port
