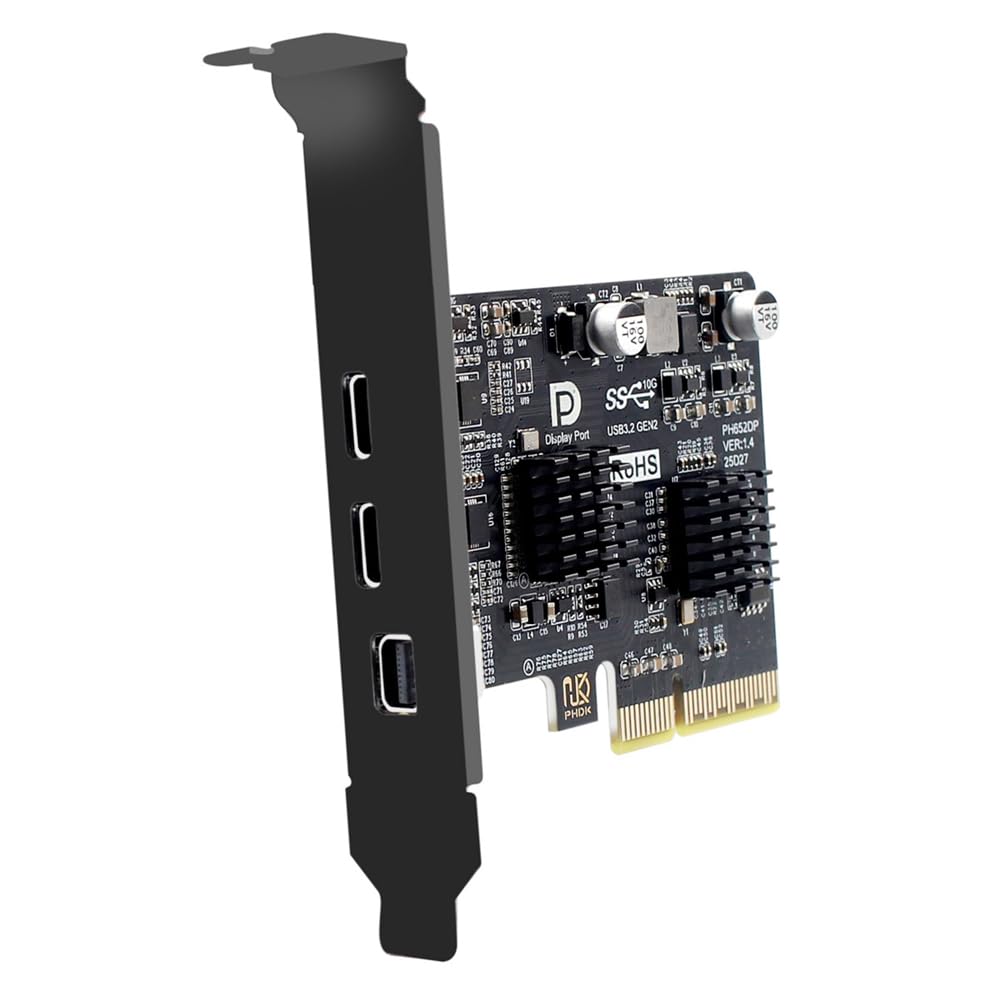

NFHK Express 4x Mini DisplayPort Input to Dual 10Gbps USB 4K 60Hz Output Desktop Graphics Expansion Card Adapter ASM3142 PCI-E & 1.4 3.1 Type-C &

------------------------------------------------------------------------------------------------------------------ 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ------------------------------------------------------------------------------------------------------------------

1) Chipset: The ASM3142 supports Multiple IN, a new feature of USB 3.1 Gen2, and fully utilizes the available bandwidth of the USB 3.1 Gen2 bus to achieve a 10Gbps data rate, providing a highly integrated, application-specific design. 2) By connecting a Mini DisplayPort 4K input (Mini-DP) from a graphics card, 4K video output can be obtained from the Type-C card. It supports connections from DisplayPort DP, Mini DP, or Thunderbolt 2 video sources to the Type-C USB-C sink output. 3) 10Gbps Data Transfer: Supports 10Gbps data transfer speed and 5V power supply. Complies with USB Base Spec. 3.1/3.0 and features a USB 3.0 output interface and Type-C/Type-E interfaces. Supports USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), and USB 1.1 Low-Speed (1.5Mbps). 4) It has a built-in self-powered IC, so no additional power supply is required. It is compatible with Windows 7, 8, 10, 11, and Mac OS 10.8.2 or later. No drivers are required for Windows 10, 11, Mac OS, and Linux. Driver installation is required when running on Windows 7. 5) This connector can transfer data and power via USB 3.1/3.0, and can also connect to USB-C video devices. The Type C connector is a new design for USB 3.1, features a reversible design, and allows you to freely choose the orientation of the plug and cable, and supports 5V/3A power charging. A desktop graphics expansion card adapter with dual 10Gbps USB 3.1 Type-C and 4K 60Hz output from PCI-E Express 4x and Mini DisplayPort 1.4 inputs, featuring the ASM3142 chipset: The ASM3142 supports Multiple IN, a new feature of USB 3.1 Gen2, fully utilizing the available bandwidth of the USB 3.1 Gen2 bus to achieve a 10Gbps data rate and providing a highly integrated, application-specific design. You need to connect a Mini DisplayPort Mini-DP 4K input from your graphics card. You can then obtain 4K video from the Type-C card output. Compatible with DisplayPort DP or Mini DP or Thunderbolt 2 video sources to Type-C USB-C sink output. Compliant with 10Gbps USB Base Spec. 3.1/3.0, with output USB 3.0 interface and Type-C/Type-E input. It features a USB-C interface. It complies with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), and USB 1.1 Low-Speed (1.5Mbps). It has a built-in self-powered IC, eliminating the need for an additional power supply. It is compatible with Windows 7, 8, 10, 11, and Mac OS 10.8.2 and above. No drivers are required for Win 10, 11, Mac OS, and Linux. Driver installation is required for operation with Windows 7. The connector can transfer USB 3.1/3.0 data and power, and can also connect USB-C video devices. The Type-C connector is a new design for USB 3.1, featuring a reversible design for the Type-C connector, reversible plug direction and cable direction, and supporting 5V/3A power charging. Input 1: Compatible slots: PCIe x4, PCIe x8, PCIe x16 input 2: Mini DisplayPort 4K output 1: 10Gbps Type-C connector female output 2: 10Gbps and 4K 60Hz Video Type-C connector female
