Type : Power Supply
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
Rated Capacity : ＜40VA
High-concerned chemical : none
Output Power : 1 - 50W
is_d : Yes
Output Current : 0-5A
Model Number : AC-DC 3.3V/5V/12V Precision Buck Converter AC220v toDC 3.3V/5V/12V DC
Brand Name : Stlxy
Output Type : SINGLE
Origin : Mainland China
Certification : NONE

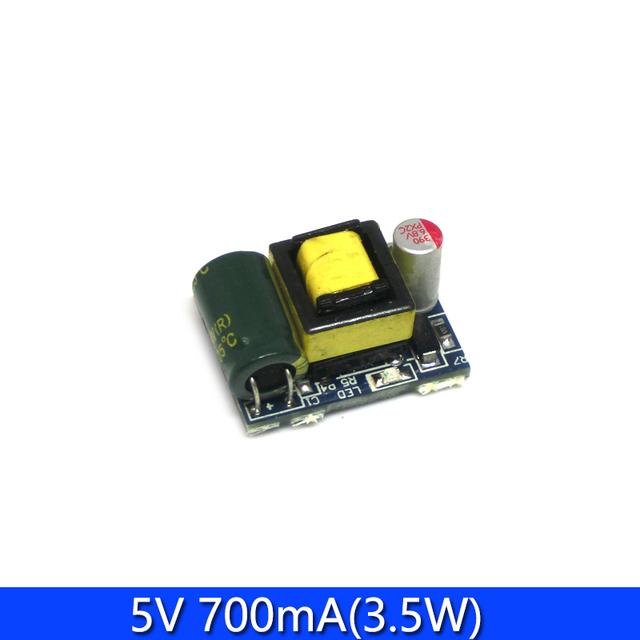

5V700mA
Product Features
1. Output indicator: green2. Full load power: <4W3. No-load power: <0.05W4. Working temperature: -20~705. Test resistance: 7 ohms (4.9V) for 5V6. Output power: 3.5W,efficiency is about 80%7. Input voltage range: AC50V-277V DC70V-390V8. Output current: 5VmA-700mA,enters constant current mode when fully loaded9. Output protection: overvoltage,overcurrent,overtemperature,short circuit protection,etc.10. Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of small current and large current11. Output voltage: 5V+-0.15v no load and full load,light load minus 0.1V,rebound when heavy load,50% load ripple 60mV12. Capacitance temperature is 105° 10,000 hours,more than 5 years at 70°,and about 20-50 years at room temperature (not recommended for use above 70°).Product Size12V300mAProduct Features1. Output indicator: green2. No-load power: <0.05W3. Full load power: <4W4. Working temperature: -20~705. Test resistance: 40 ohms (12V) for 12V6. Output power: 3.5W,efficiency is about 80%7. Input voltage range: AC50V-277V DC70V-390V8. Output current: 12VmA-300mA,enters constant current mode when fully loaded9. Output protection: overvoltage,overcurrent,overtemperature,short circuit protection,etc.10. Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of small current and large current11. Output voltage: 12V-0.05v+0.3v no load and full load,light load minus 0.1V,rebound when heavy load,50% load ripple 100mV12. Capacitance temperature is 105° 10,000 hours,more than 5 years at 70°,and about 20-50 years at room temperature (not recommended for use above 70°). Product Size

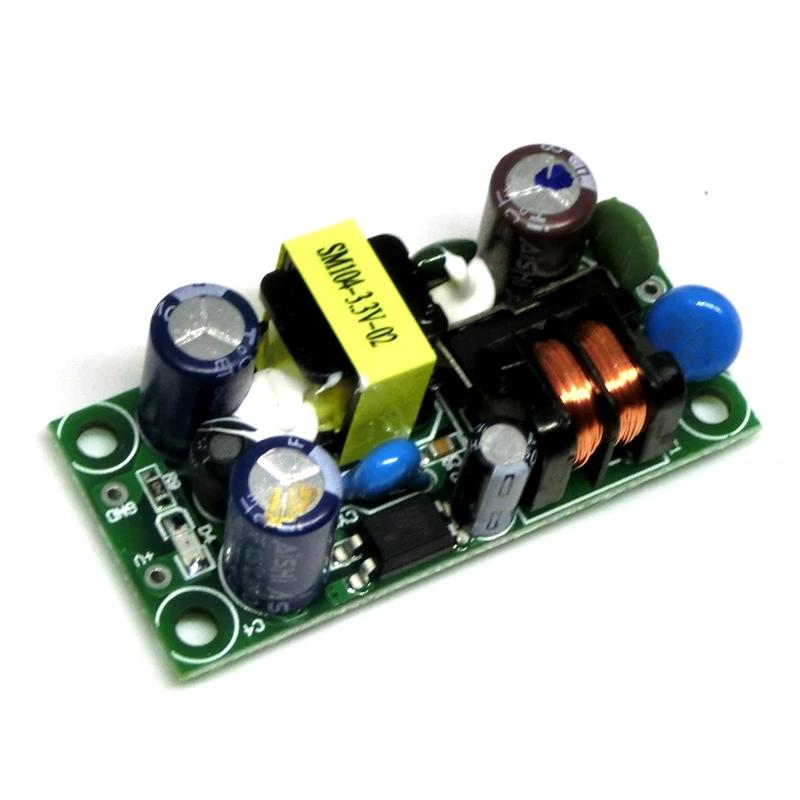

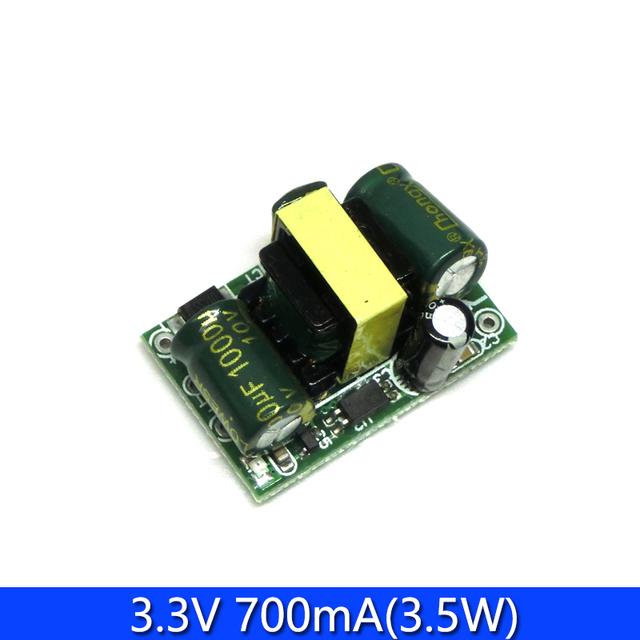

3.3V 700MAInput voltage: Ac85-265V 50/60HZ or DC100v-370vOutput voltage: Dc3.3V (+0.2V)Output current: 700 mAPower: 3.5WSmall Current: Limit 0 AHigh Current: Limit 700 mAPeak current: 800 mAOutput Voltage Range 3.1-3.5VRipple: 60mV5V 700mA:Step Down ModuleCondition: NewWith temperature protection,over current protection and short circuit protection,high and low voltage isolation,AC85 ~ 265 v wide voltage input,ac/dc current,431 precision voltage stability DC5V outputInput voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 vImput current: 0.0273A(AC110V) 0.014A(AC220V)Input Inrush Current: 20AOutput voltage: DC 5V (+ / - 0.2 V)Output current 700 mAPower 3.5 WOperating temperature -20~60°Relative humidity 40-90%RHOutput 5V,min current 0a,max current 700mA,peak current: 800mA,output range: 4.8~5.2v,ripple wave: 60mVOutput power:0-4W(DC current)Output efficiency: 80%Switch machine overshoot: MAX 10%Output voltage rise time: MAX 100MSOutput over voltage: 4.8-5.2V,recovery:Lock,restart after recoveryOutput over power protection:YES,recovery:Lock,restart after recoveryShort-circuit protection: YES,automatic recovery after problem solvedTemperature protection: YES,recovery:Lock,restart after recoveryOvercurrent protection: YES,recovery:Lock,restart after recoverySize: 29.89 x 20.57 x18mm-The power supply for whole isolation type industrial-grade built-in power supply module,temperature protection,over current protection and short circuit protection,AC 85 ~ 265v wide voltage input,431 precision voltage,DC12V output,small size,stable performance,cost-effective-input voltage of AC85 ~ 265v 50/60 HZ-Output voltage DC12V (±0.1V)-Output current 450MA-Power 5W
label:yes
