Hign-concerned Chemical : None
Package : SOP

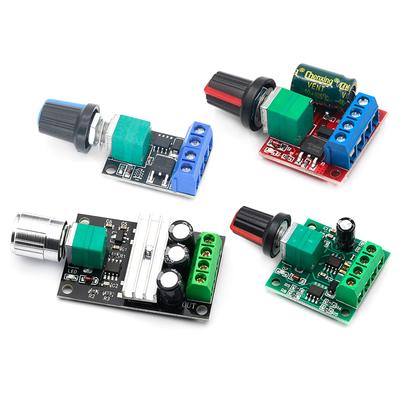

Model Number : 2 Pack 6V 12V 24V 28V 3A 80W 1203BB DC Motor Speed Controller
Dissipation Power : 80W
Supply Voltage : 6V 12V 24V 28V
Application : Electric Toy
Type : Voltage Regulator
Origin : China
Condition : New
DC Motor Speed Controller : You can control the forward or reverse direction and stop of the DC motor by the switch. DC6V-28V; Current range: within 3A; Maximum output power: 80W.
Feature : Potentiometer with switch function；The switch cable length 15cm/5.9in;Never connect directly to household 220V AC power supply.
Efficient Motor Speed Adjustment : The PWM Speed Controller offers efficient motor speed adjustment, allowing you to control the speed of motors and fans with ease. Its pulse-width modulation (PWM) technique ensures smooth and accurate speed control.
High-Quality Design : Built with high-quality components, the Motor speed control module delivers reliable and consistent performance. It provides precise speed adjustments, helping you achieve optimal performance for your motors and fans.
Versatile Applications : This Motor speed regulator is versatile and suitable for various applications, including DC motor, fan, fish tank oxygen pump and other product.
Before you attempting to wire the controller, make sure that the power is off.
1. Connect wires refer to the wiring diagram.
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
Warning: Do not reverse positive and negative power loads. This will damage the controller!
Package Including:
2 x 1203BB DC Motor Speed Regulator controls with/ without switch
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
