Feature:
1. Adopts PBT anti?flame?resistance, high?low temperature and environmental protection materials, which fully meets the requirements of the fuse holder.
2. Features with good mechanical strength, insulation, heat resistance and flame retardancy. Will not cause breakage, deformation, combustion and short circuit during use.
3. All busbars and fuse clips are nickel plated copper for corrosion resistance and optimum conductivity. The fuse holder with LED indicator can quickly identify the fault.
4. All fasteners are made of stainless steel, the fuse box is input, and the output end is fixed by tightening screws, which can be installed more quickly.
5. This safety box is fixed by self?tapping screws, which makes installation easier and safer.
6. Equipped with transparent splash?proof dust cover and stickers, easy to identify and operate.
7. Transparent plastic cover with push lock system, easy to open and very stable.
8. The fuse box is suitable for various automotive and marine applications, including 12V and 24V systems (maximum voltage 32V).
Specification:
Condition: 100percent brand new
Item Type: Fuse box
Color: As pictures shown
Product Model: CS664A1
Product Size: Approx.87.75x85x36.5mm3.5x3.3x1.4in
Product Material: PBT body, PC waterproof and dustproof cover, nickelplated copper connection terminal
Fuse Holder Type: 6 way
Fuse Type: Standard blade fuse (ATOATC)
Rated Voltage: 12V32V DC
Input Rated Current: 100A
Maximum Output Current: 30A per circuit
Input Line: #46 AWG
Output Line: #1216 AWG
Main Line Terminal: M5 threaded stud
Single Wire Terminal: M4 threaded stud
Indicator Color: Red
Indicator Function: When the red LED light is on, it means that the fuse has been disconnected, and the fuse needs to be replaced in time to continue operation

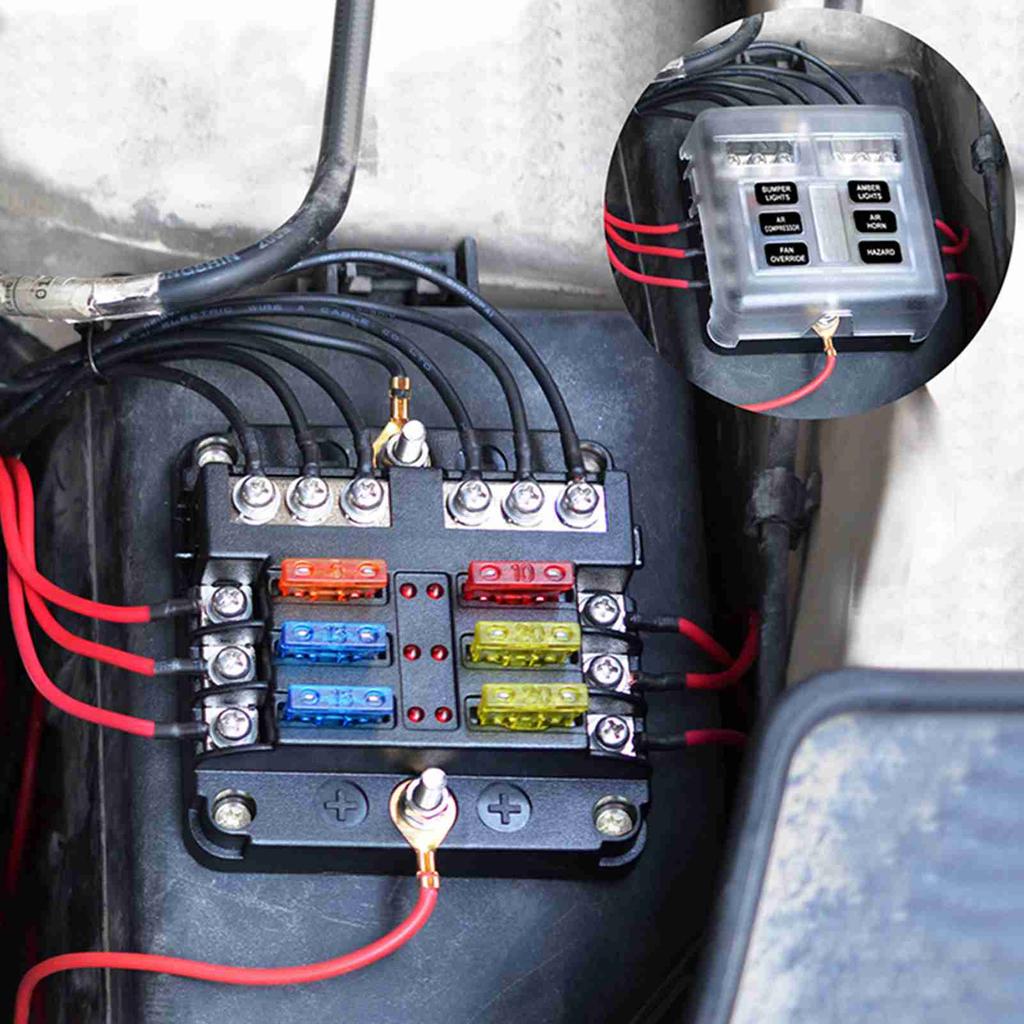

Installation Scope: Can be installed on cars, offroad vehicles, RVs, buses, yachts, boats, etc.
Scope of Product Use: Can be directly connected to the line of any electrical appliances on the carship
Different Colors of Fuses:
Yellow Fuses: 20A rated current
Blue Fuses: 15A rated current
Red Fuses: 10A rated current
Orange Fuses: 5A rated current
.

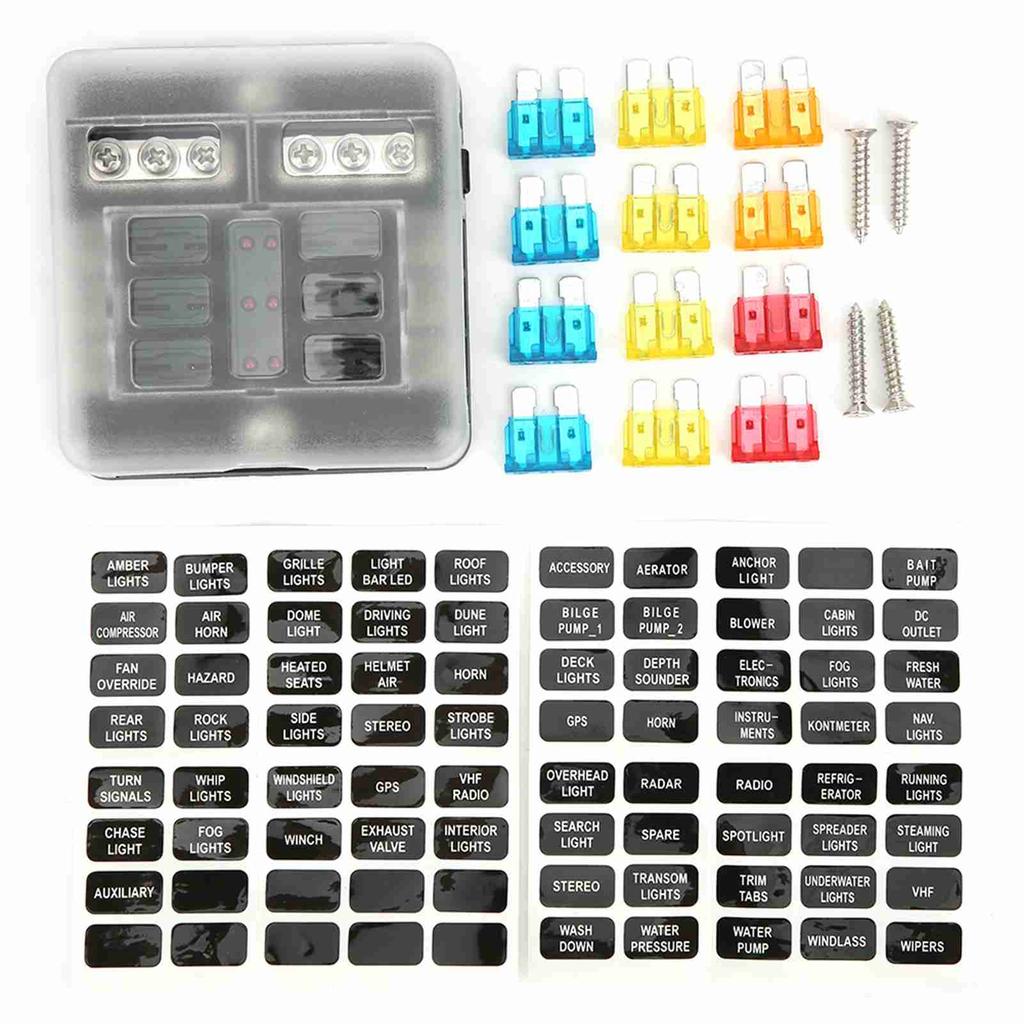

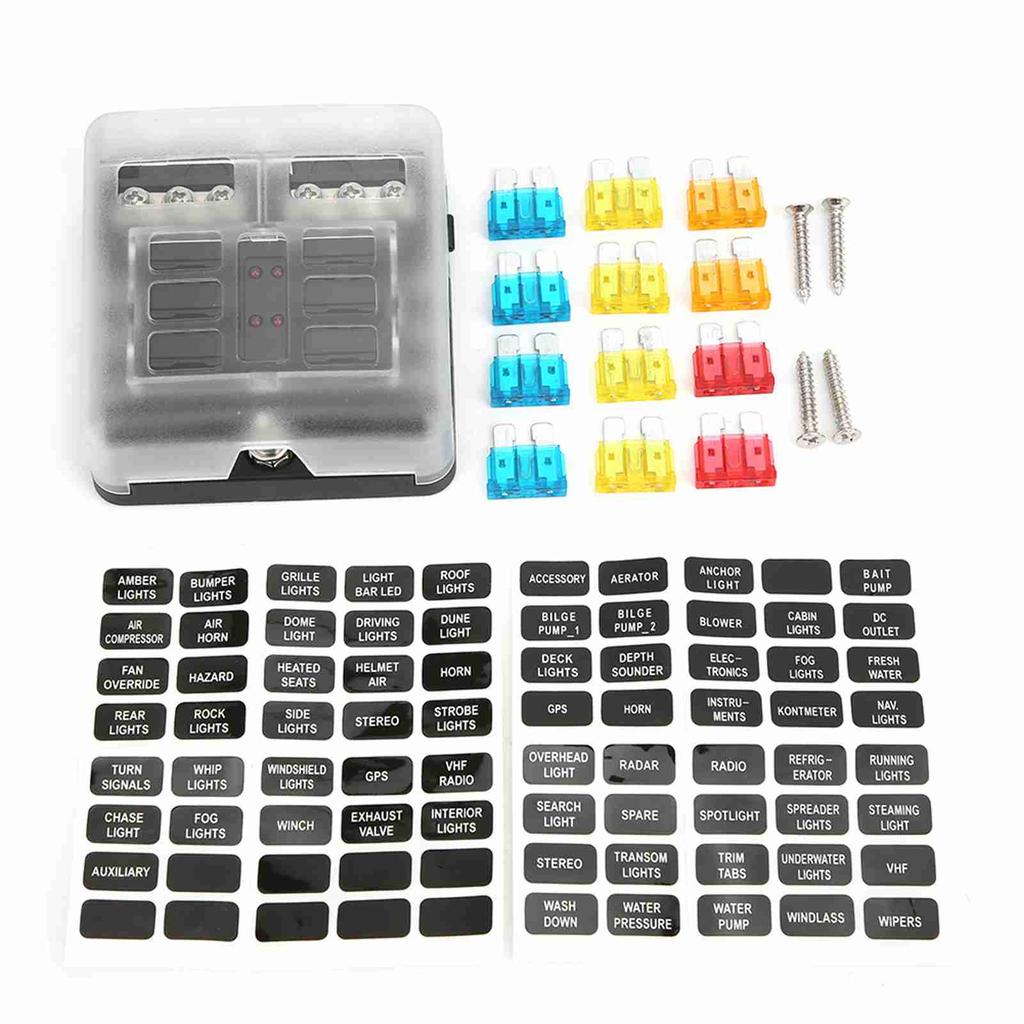

Package List:
1 x Fuse Box 2 x Sticker4 x 20A Fuse4 x 15A Fuse2 x 10A Fuse2 x 5A Fuse4 x ScrewAdopts PBT anti?flame?resistance, high?low temperature and environmental protection materials, which fully meets the requirements of the fuse holder.
Features with good mechanical strength, insulation, heat resistance and flame retardancy. Will not cause breakage, deformation, combustion and short circuit during use.
All busbars and fuse clips are nickel plated copper for corrosion resistance and optimum conductivity. The fuse holder with LED indicator can quickly identify the fault.
All fasteners are made of stainless steel, the fuse box is input, and the output end is fixed by tightening screws, which can be installed more quickly.
This safety box is fixed by self?tapping screws, which makes installation easier and safer.
