Feature:

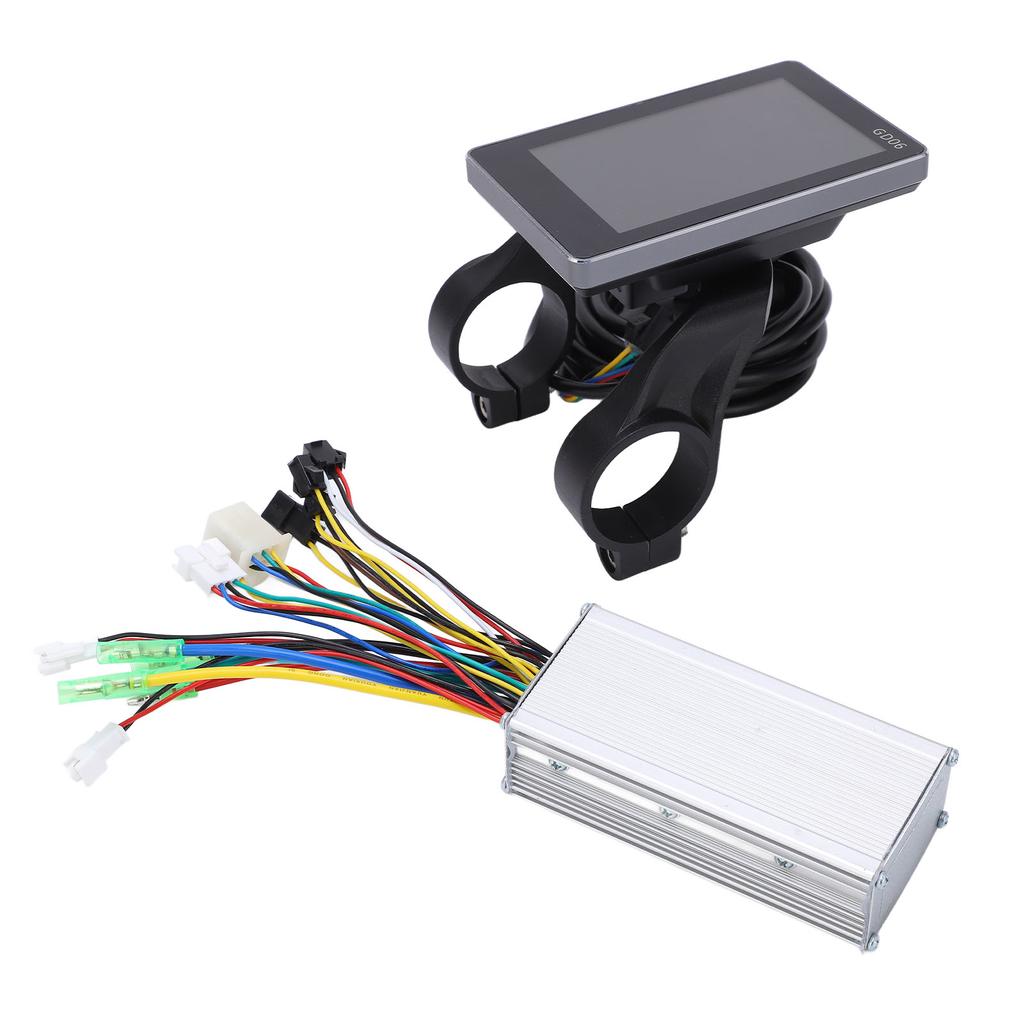

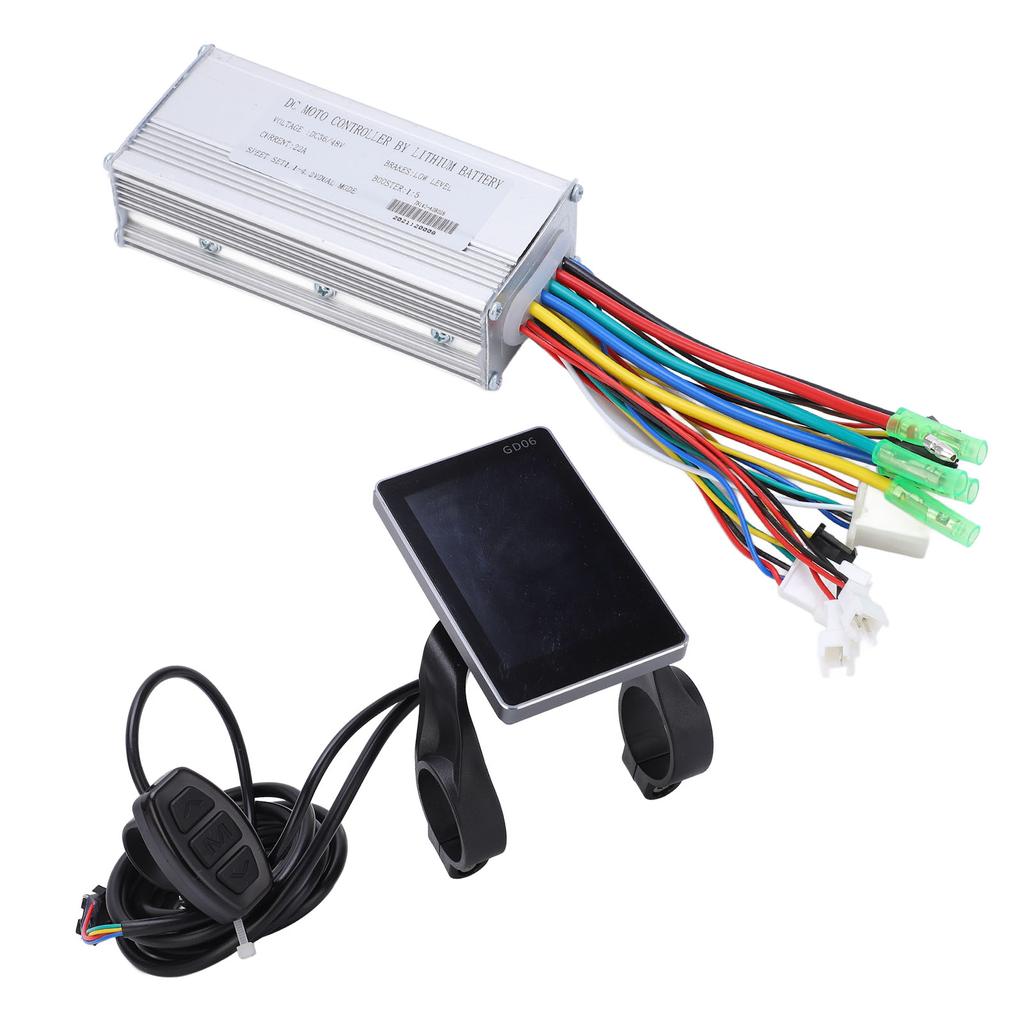

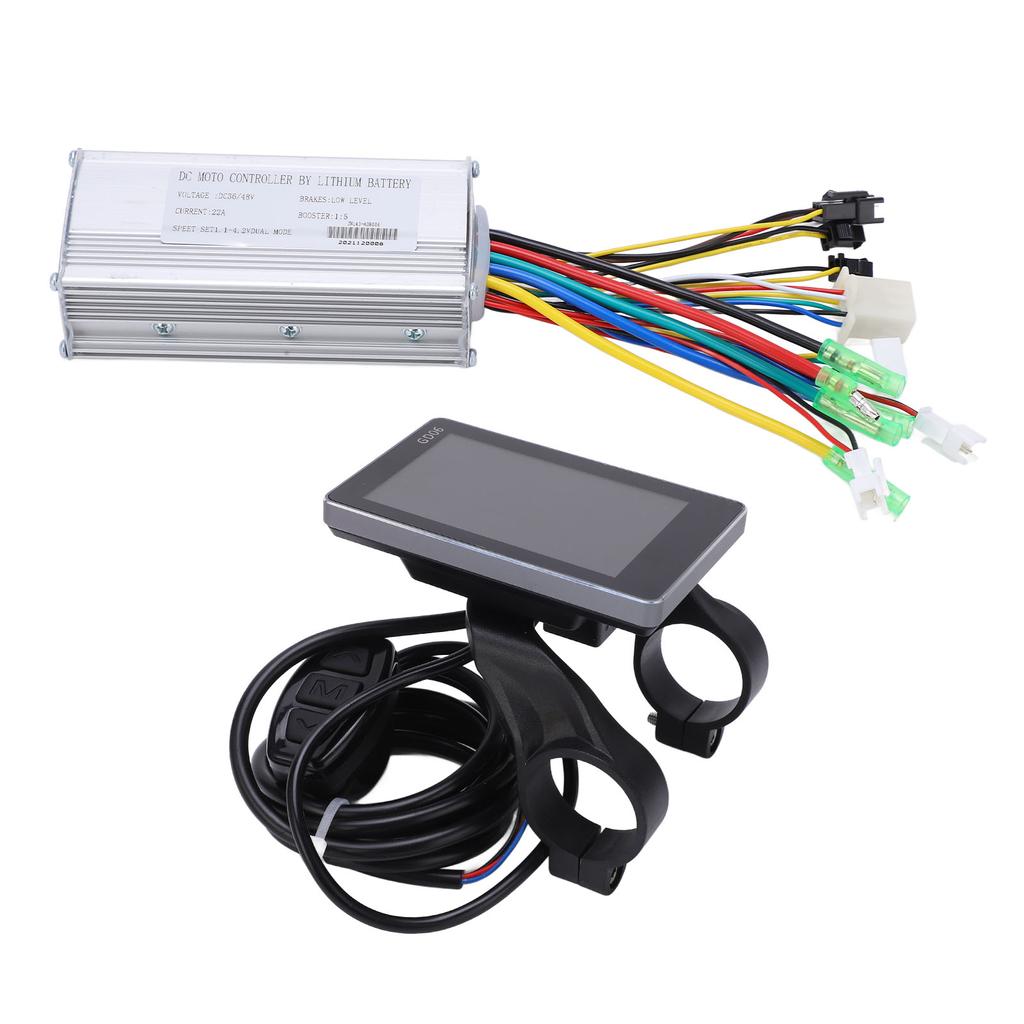

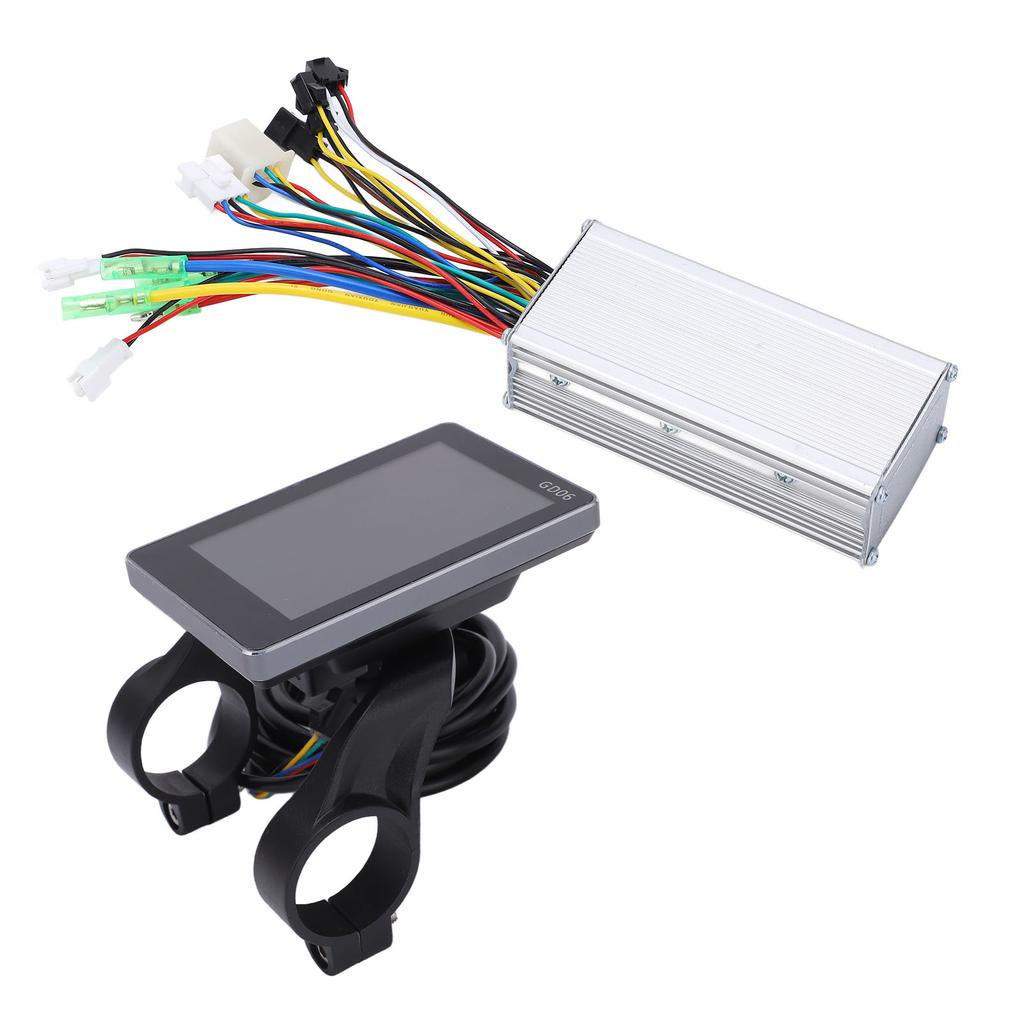

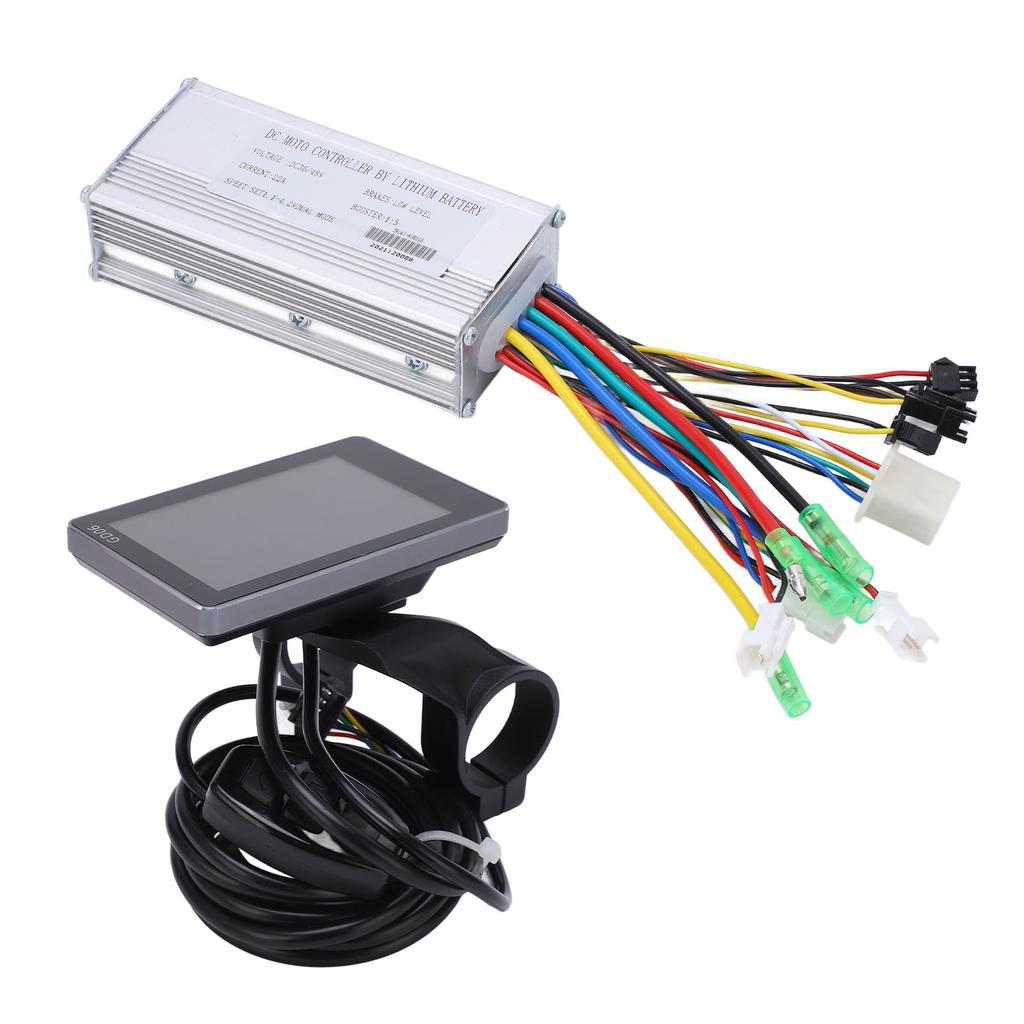

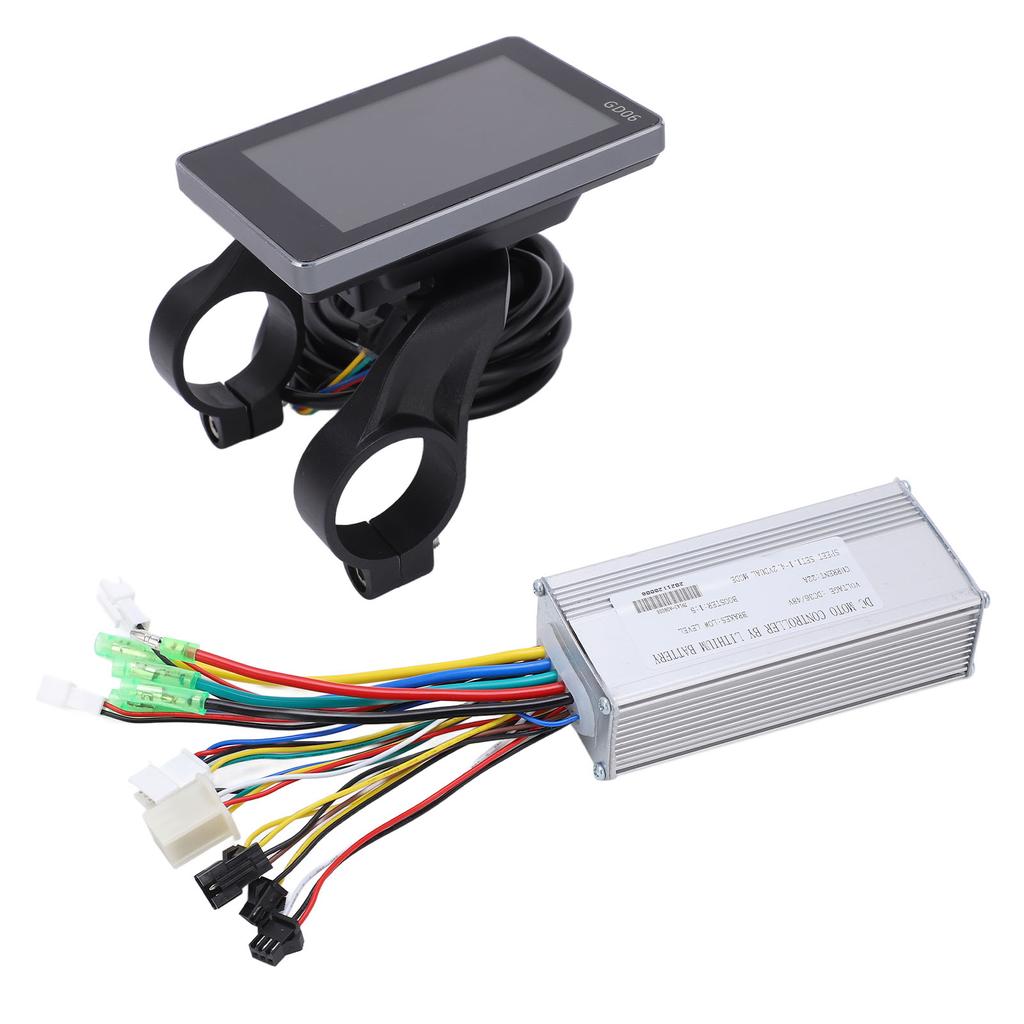

1. Packing List: Electric bike conversion kit include 22A controller, LCD GD06 instrument, 130X thumb throttle, 8C speed assist sensor.
2. Widely Used: Suitable for 500W motor, DIY electric bicycle, electric vehicle, electric scooter, folding bike, etc. Easy to maintain, electric bicycle greatly improves riding fun, for cyclists who like challenge.
3. GD06 Instrument Material: Using ABS material, it is light, strong and durable, with good toughness and waterproof performance, providing better protection for the internal circuit.
4. Controller Housing: Made of high quality metal with groove design, it can protect the internal circuit due to good heat dissipation, thus avoiding thermal overload.
5. GD06 Meter: Compatible with 36V and 48V voltage, intelligent power display, true reflection of battery power, real time recording of power consumption, guaranteed riding mileage, headlight control, 3 level adjustment of backlight brightness, five speed gear control, mileage display, fault word display, boost mode 6km h, etc, external three way button, easy to operate.
Specification:
Item Type: Electric Bicycle Controller GD06 Instrument Kit
Color: As Pictures Shown
Material: Aluminum Alloy + ABS Plastic
Weight: Approx.728g 25.6oz
Controller Box Size: Approx. 111x53x33mm 4.4x2.1x1.3in, Meter Size: Approx. 96x62mm 3.8x2.4in
Controller Rated Voltage: DC 36V 48V
Controller Maximum Current: 22A
Controller Speed Setting: 1 4.2V
Controller Brake Input: Low Level
Booster: 1:5
Applicable Motor Power: 500W

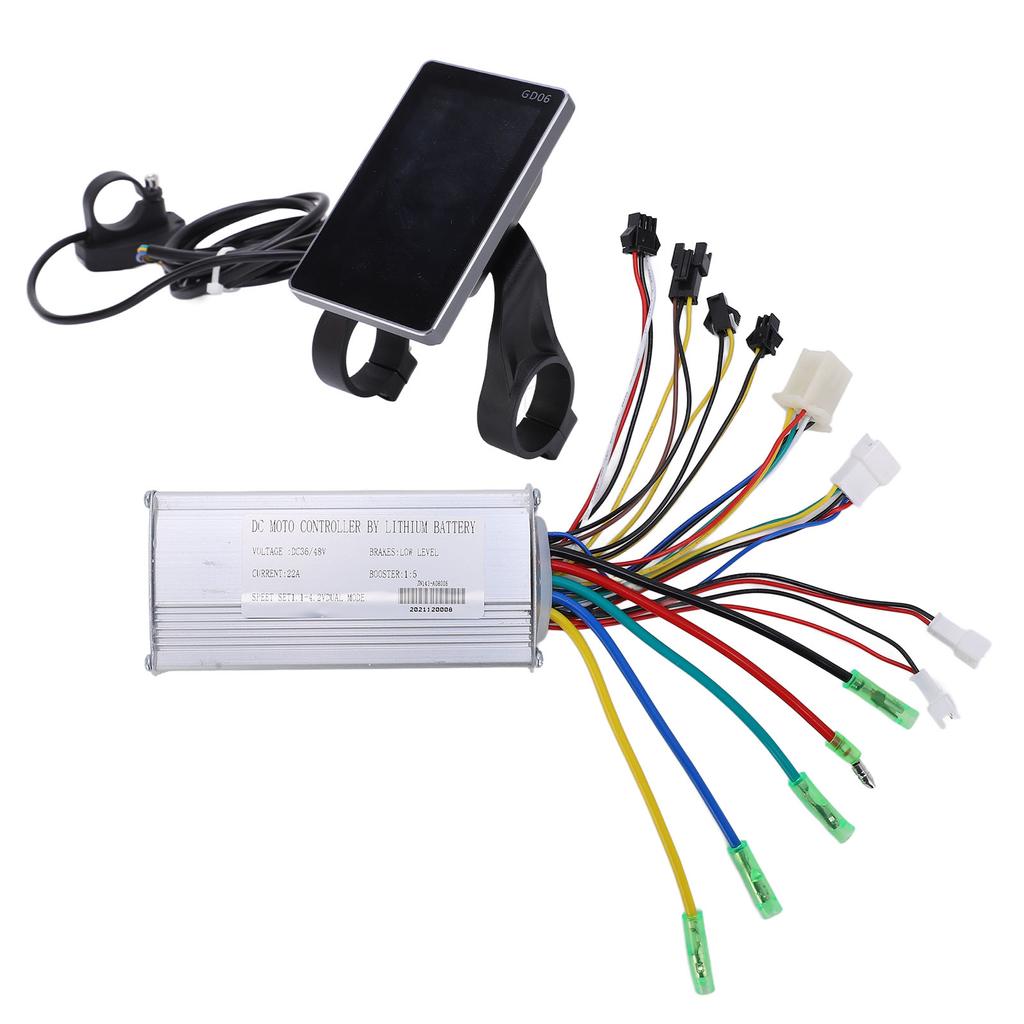

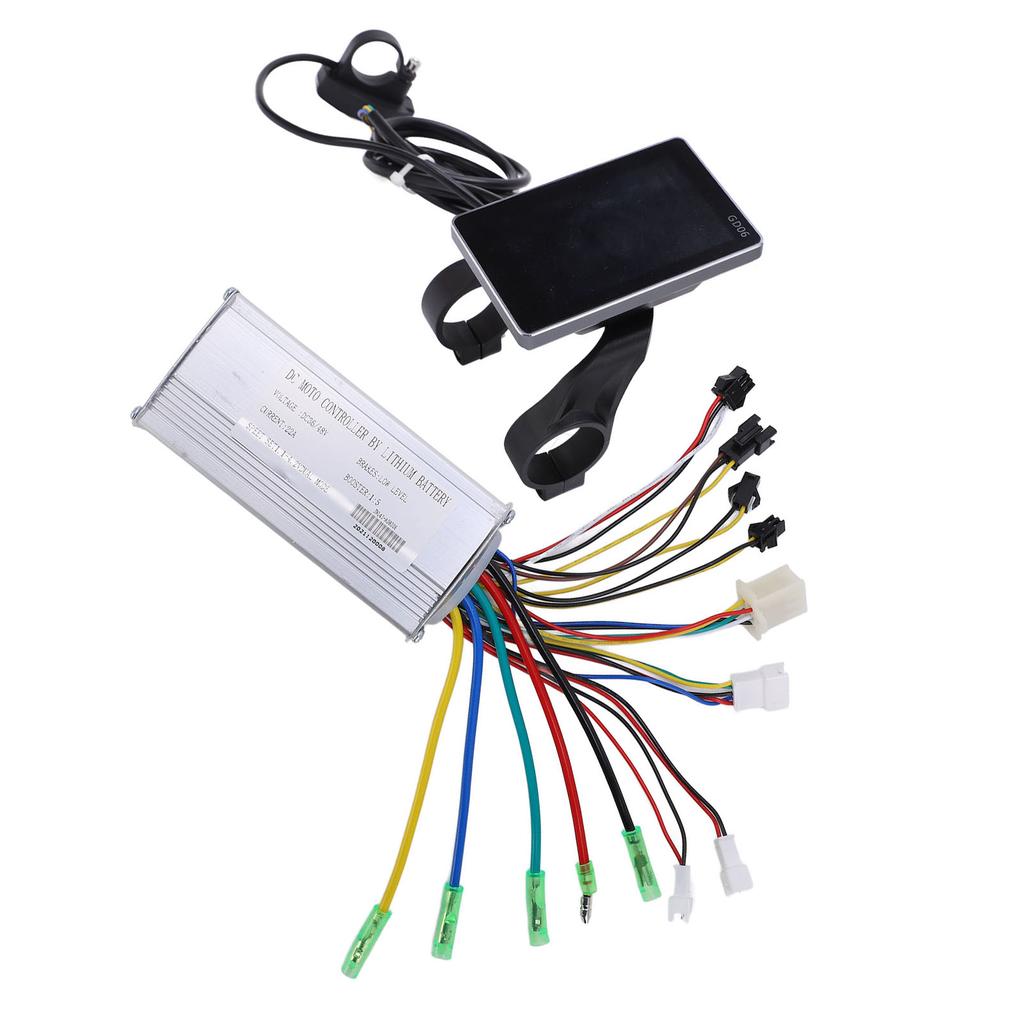

Controller Wire Color Definition:
1. Yellow, Green, Blue Single Big Head Line: Motor Phase Line
2. Red white black blue green yellow Double Row Six wire Port: Motor Hall Wire
3. Red and Black Single Big Head Line: Power Line
4. Red, Blue, Black, Green and Yellow Single row Five wire Port: Instrument Line (5pin)
5. Black and Yellow Lines (two): Power off Brake Handle Line
6. Red and Black White Lines: Throttle Dial Line (3pin)
7. Brown, Black and Yellow Wire: Power Sensor Wire (3pin)
8. Black and Red Lines (two): Headlight Lines
GD06 Function Description:
1. Using Two Way Communication Protocol, the External Three Way Button is Easy to Operate; 2. Real Tme Speed Display; 3. Km mile Display; 4. Intelligent Power Display; 5. Headlight Control; 6. 3 Level Adjustment of Backlight Brightness; 7. Five Gear Gear Control; 8. Mileage Display; 9. Fault Word Display; 10. Power Assisted Push Mode 6km h, 11. Parameter Setting..
Package List:

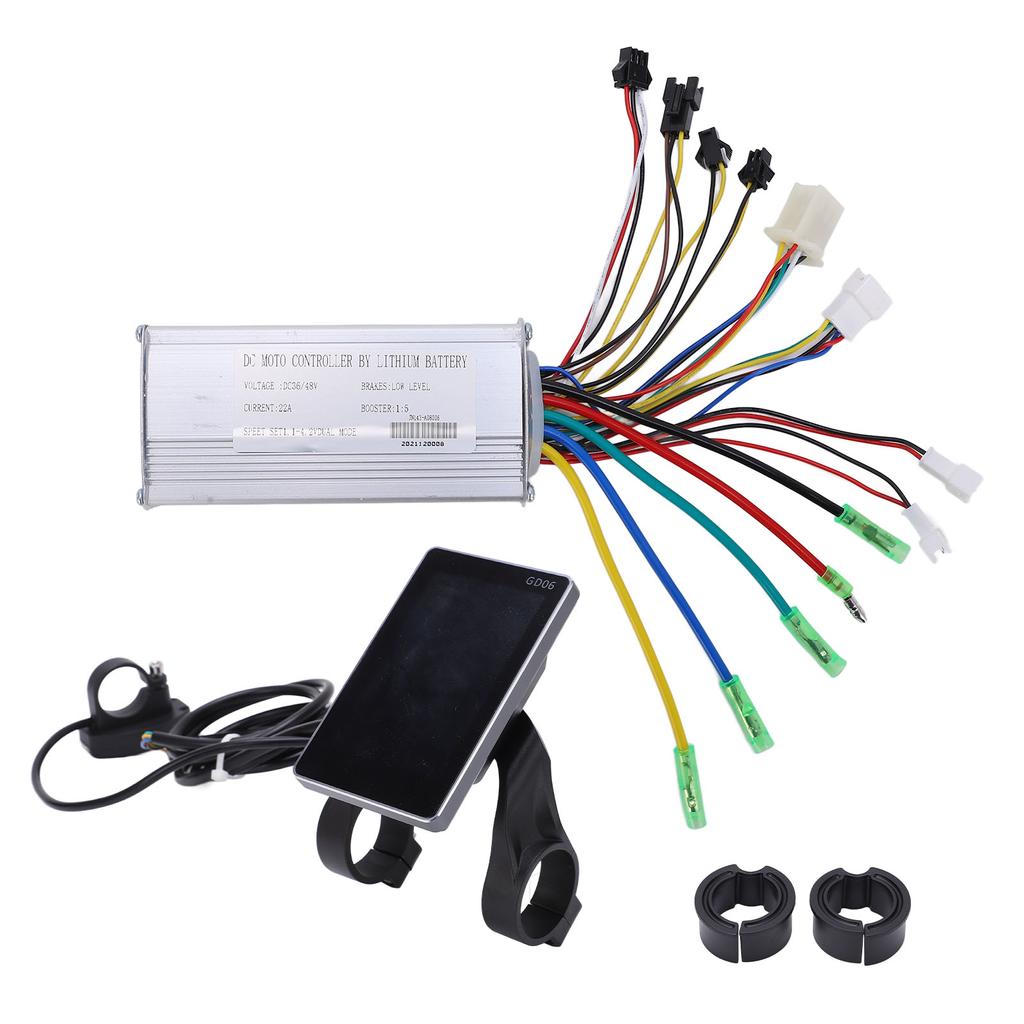

1 x Controller
1 x Instrument 2 x Instrument Gasket 1 x Thumb Throttle 1 x Speed Assist Sensor1 x Controller Wiring Manual
Note:
Note that the size of the motor is consistent with the controller kit.
