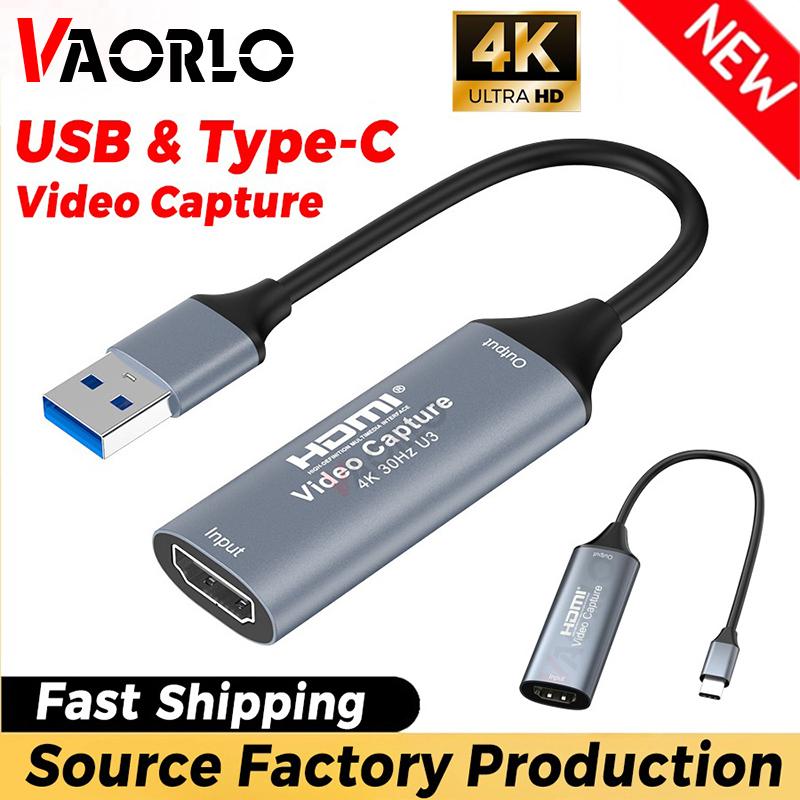

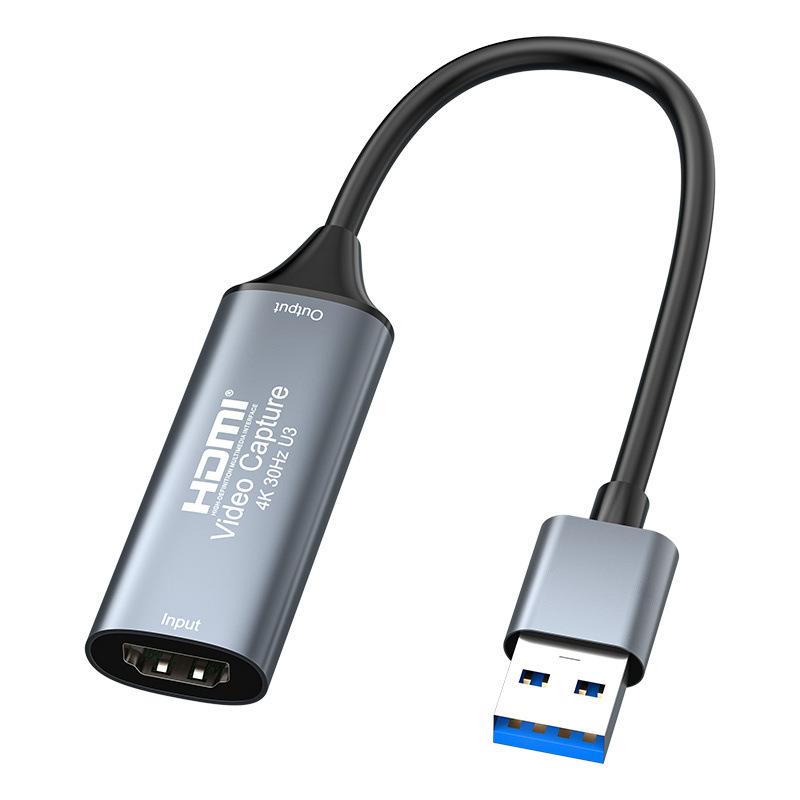

Introduction :

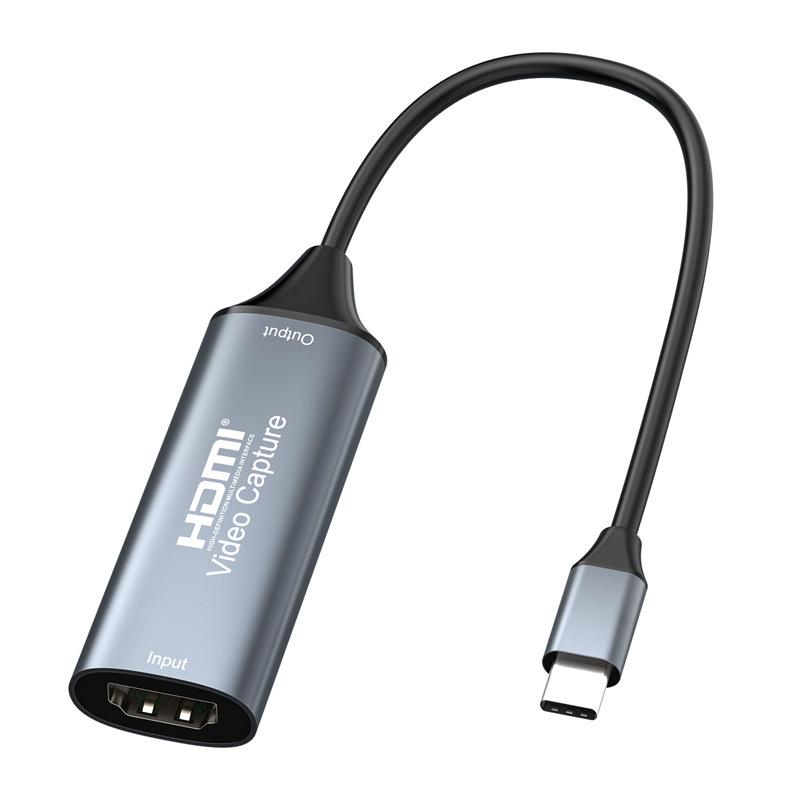

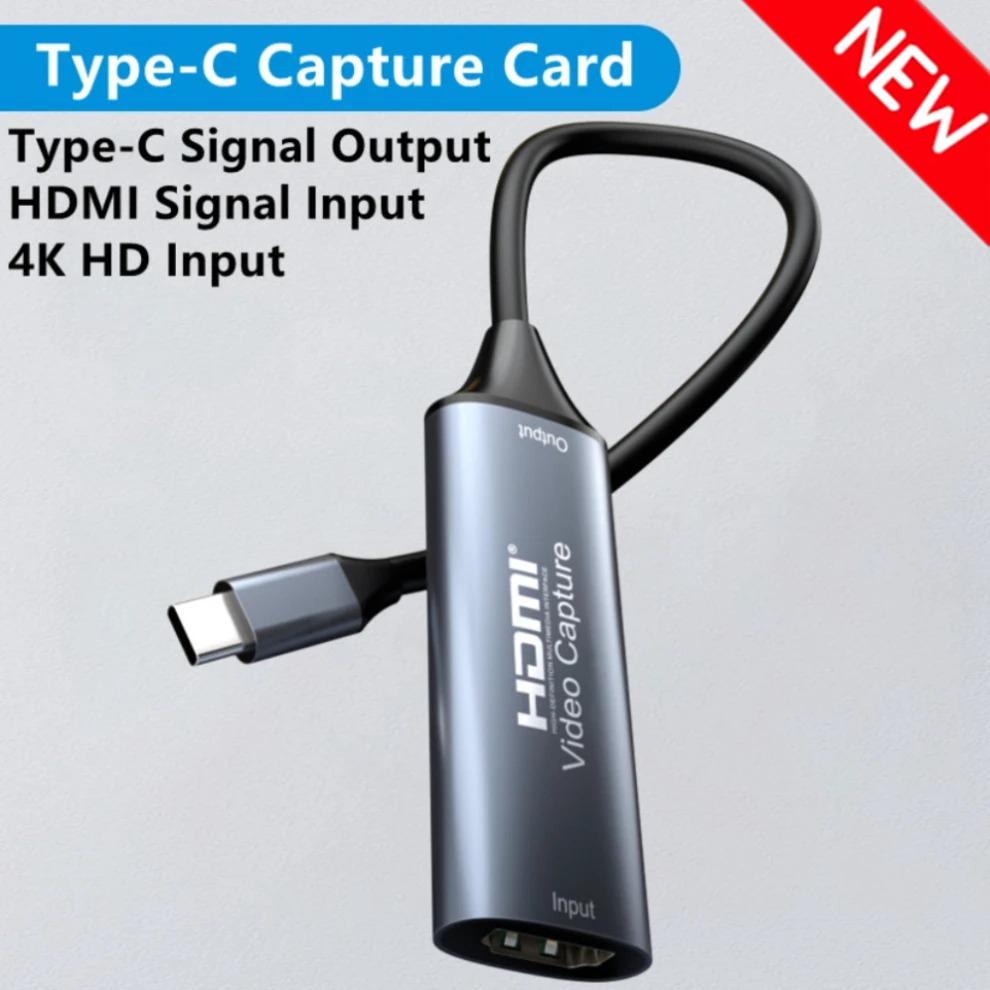

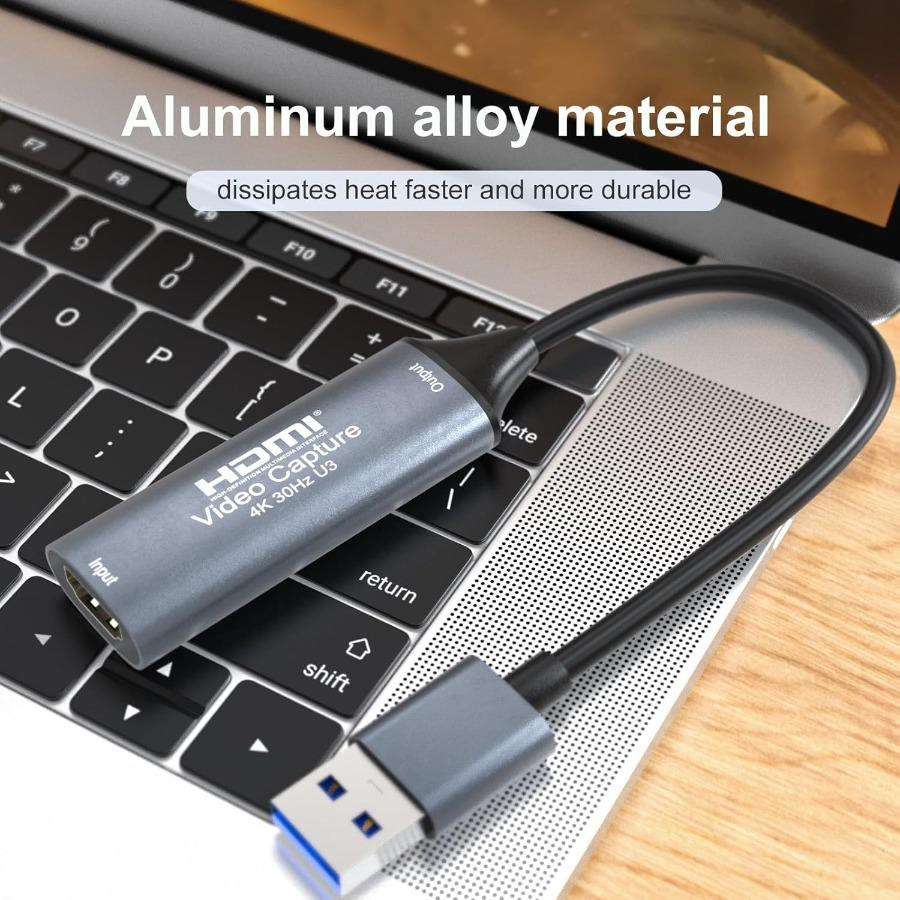

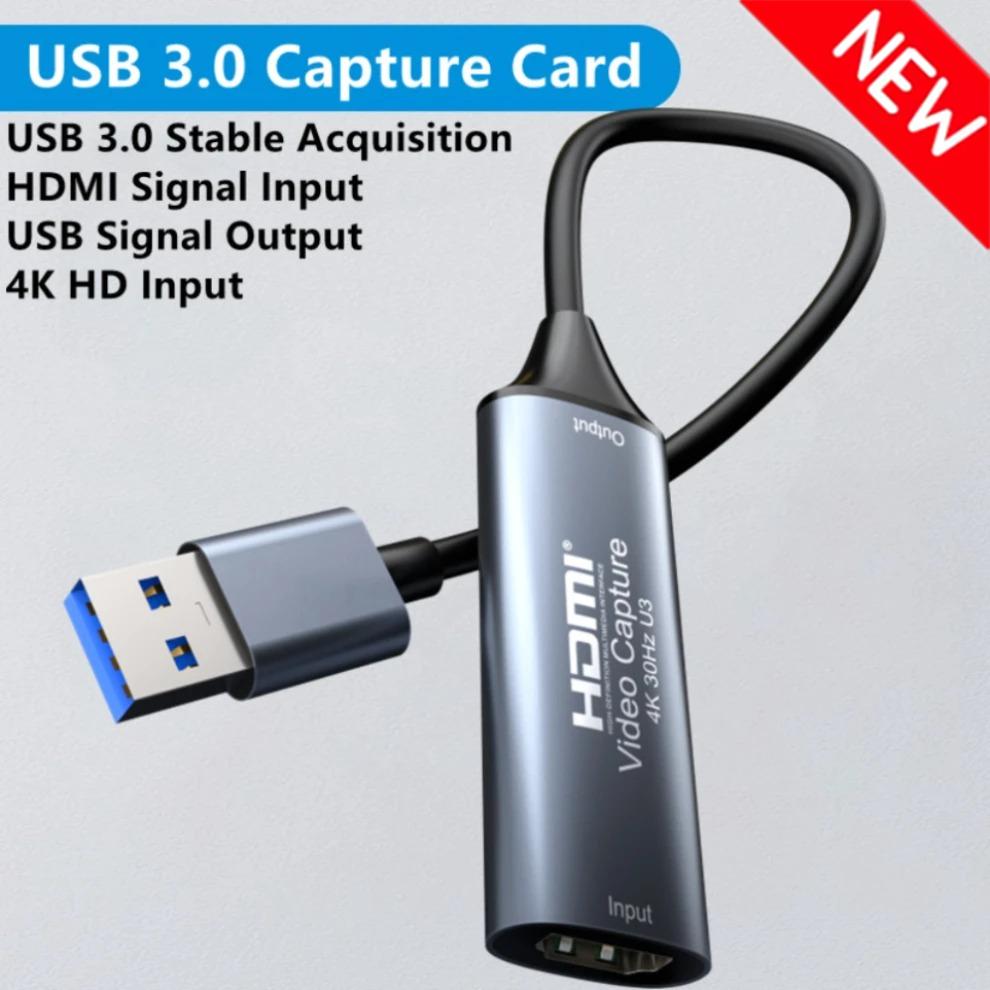

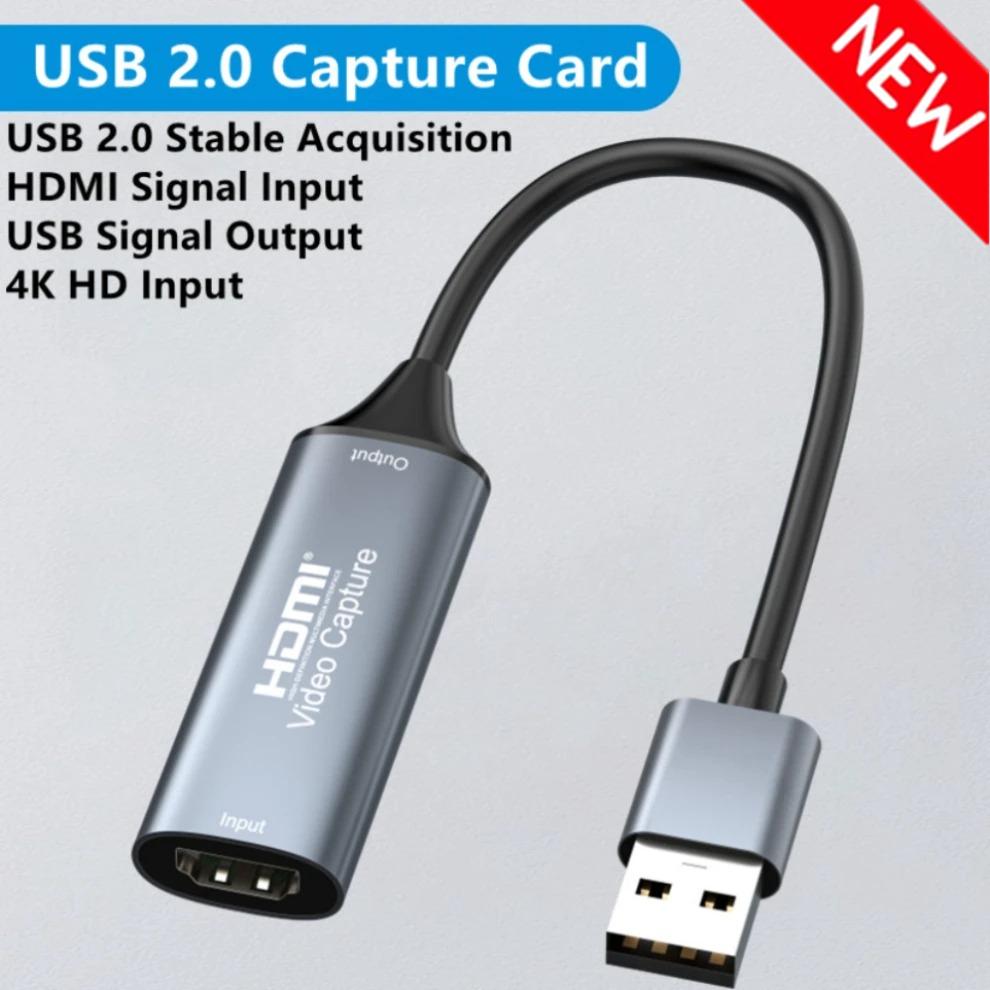

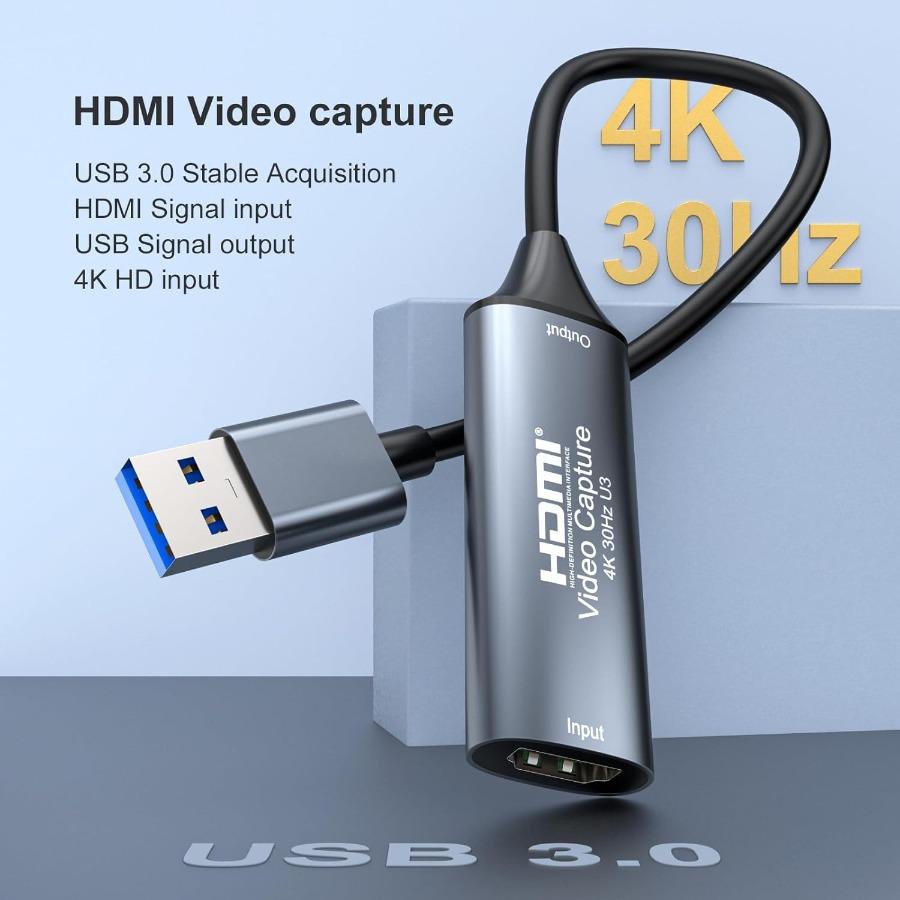

The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for previews and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.

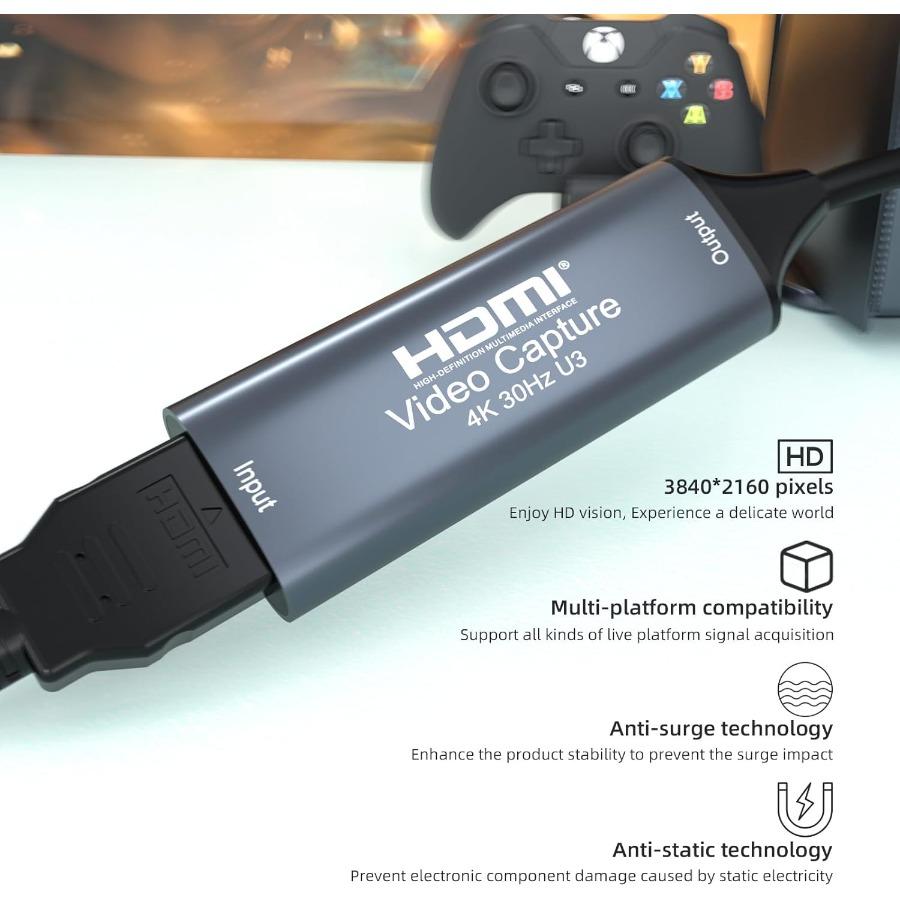

Features:
* Support input max resolution 4K@30Hz;
* Support output max resolution 1080P@60Hz;
* Support 24/30/36bit deep color;
* Support AWG26 HDMI standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLC、OBS 、Amcap, etc;
* Support Windows、Android and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Support uncompressed(YUY2 1080P@60Hz) acquisition (USB3.0);
* No need external power supply, compact and portable.
Specifications:
HDMI resolution:Max input can be 4K
Support video format:24/30/36bit Deep color
Video output format:YUY2、MJPEG
Video output resolution:Max output can be 1080P
Support audio format:L-PCM
Input cable distance:≤15m,AWG26 HDMI standard cable
Max working current :0.2A/5VDC
Operating Temperature range:(-10 to +55℃)
Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above ；NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above；NC NVIDIA GT735M or above
Run memory: 4G RAM

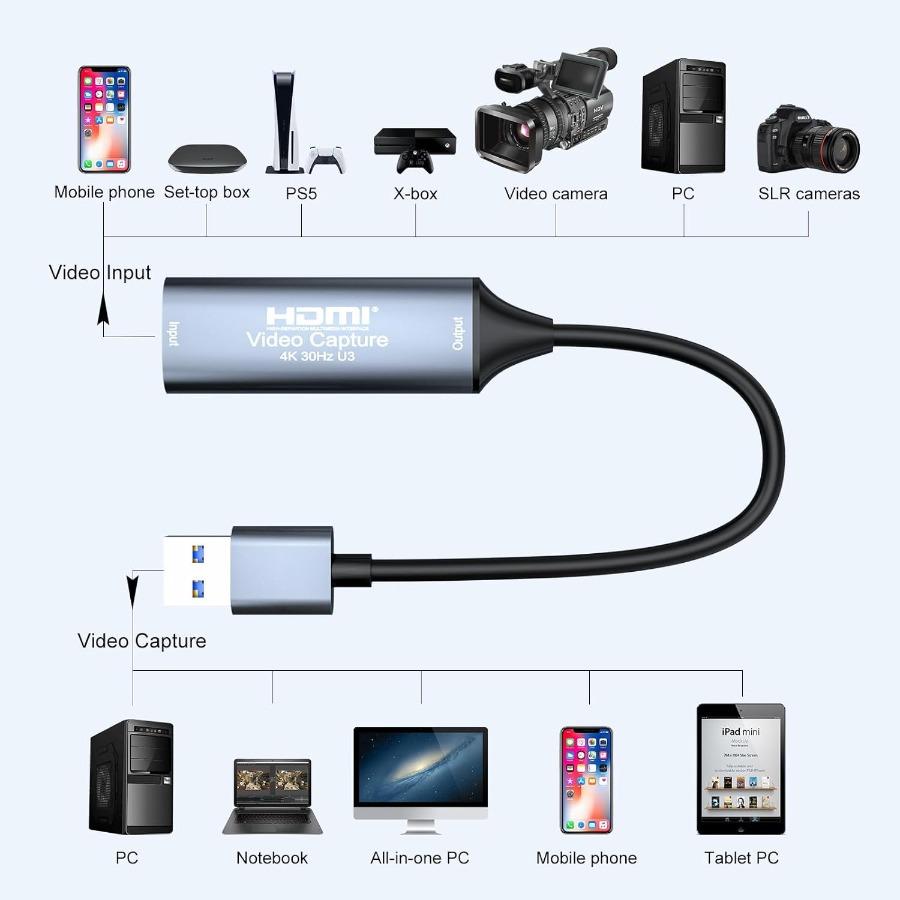

Connection and Operation
1: Connect the UHD signal source to the HDMI input of the video capture with
one HDMI cable.

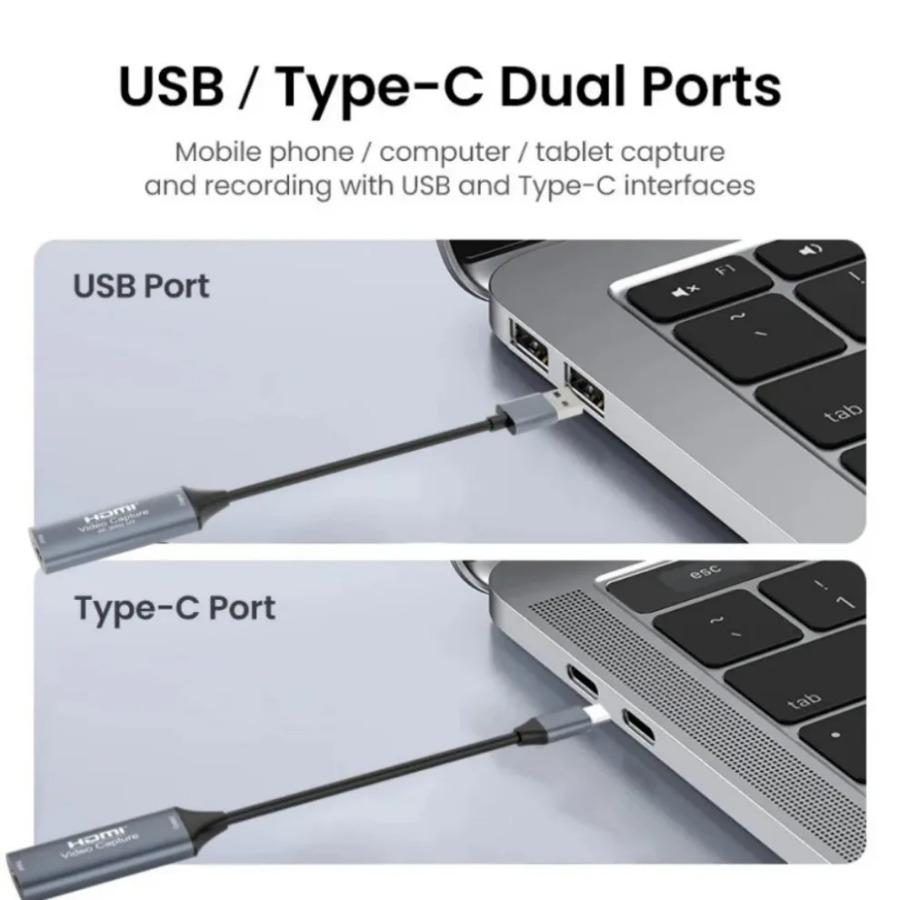

2: Connect the computer to the usb port of the video capture with usb cable.
3: Operation steps for USB video capture(OBS): Open the software→Choose sources of
“Video capture Device”→Set the size of image→Choose “Studio Mode”(double window)
→Choose “Start Recording”.
Operation Example as below
1. Add new sources, choose “ Video Capture Device ”/ “Audio Input Capture”
2. Set the size of the image.
3. Choose “Studio Mode”(double window).
4. Click “ Start Recording”
