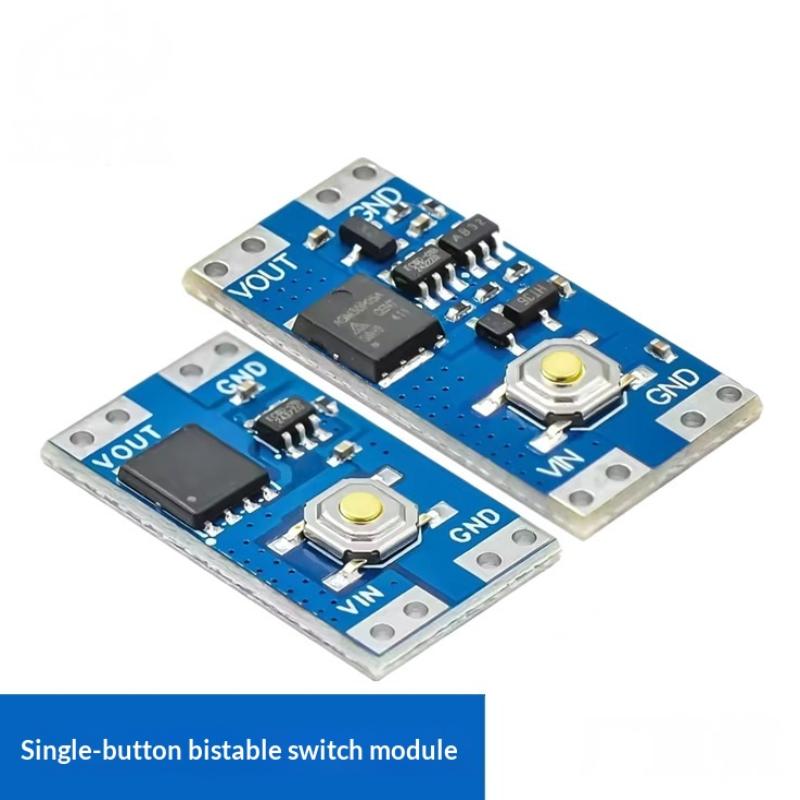

1Pcs 3.5- 5.4V 4.5-26V 300Na 1.3Ua Load 10A Low Power Xl-10Al Xl-10Ah Single Bond Button Bistable Micro One Key Switch Module

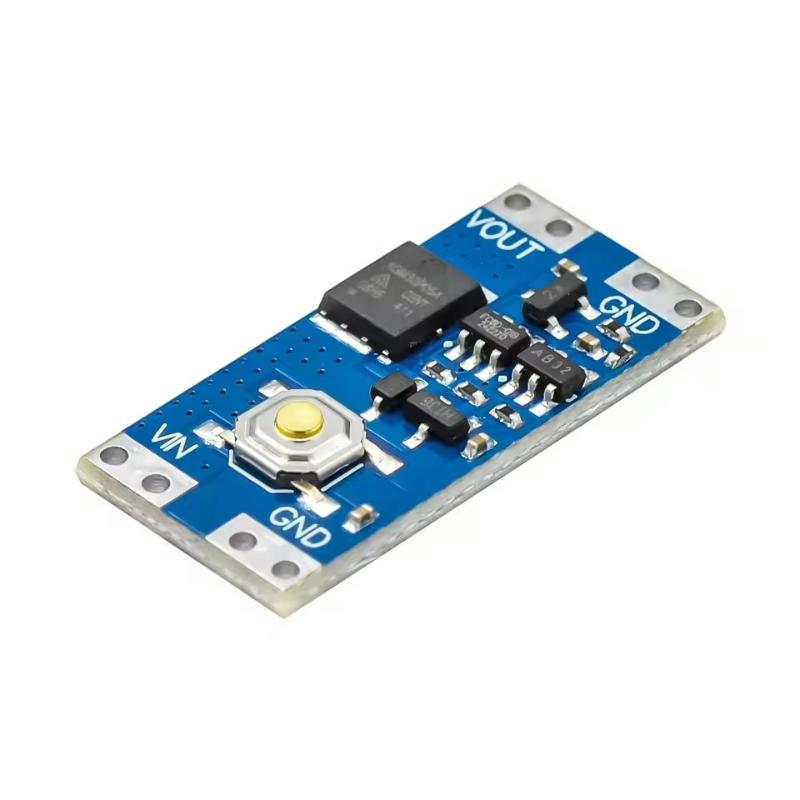

Description: XL-10AL XL-10AH Single Bond Button Bistable Micro One Key Switch Module 3.5-5.4V 4.5-26V 300nA 1.3uA Load 10A Low Power Module Introduction: The XL-10AH and XL-10AL are both wide voltage and low power versions, respectively. This series of modules can achieve the same function as self-locking switches by lightly touching the switch to turn on and off the power. They can support a load with a maximum switch current of 10A, and their power consumption is extremely low when turned off. The XL-10AL power consumption version can support 3.5-5 Working at a voltage of 5V, the static power consumption in the off state is about 300na, while the XL-10AH wide voltage version can support a wide range voltage of 4.5-26V, and the static power consumption in the off state is about 1.3ua. The excellent performance of the module covers the working voltage and operation required for most DC loads. The small size design also does not take up too much space on your device. For the button part, if you want to use styles of buttons, you can also connect various styles of touch buttons to our switch control board through wires. Specifications: Parameter Introduction: Model: XL-10AL/XL-10AH Working voltage: XL-10AL: 3 5-5.4V XL-10AH: 4 5-26V Static power consumption: (sampling test has deviation but is not significant) XL-10AL: 300na (5V voltage measurement) XL-10AH: 1 3ua (12V voltage measurement) Load current: XL-10AL: 10A (5V voltage test for 30 minutes) XL-10AH: 10A (12V voltage test for 30 minutes) Pressure drop: XL-10AL: 130mv (5V 10A measurement) XL-10AH: 120mv (12V 10A voltage measurement) Material: Plastic+Metal Color: blue Packing: 1pcs Precautions 1. Regarding the load current, XL-10AL can run for a long time at 5V and can be very hot. However, after a 30 minute long run test at room temperature of around 25 Celsius, it is not recommended to run for a voltage lower than 4V with a large current of 10A. Under low voltage, heating will be too high and it is easy to burn the module. XL-10AH 10A current is not recommended to run for a voltage below 7V. 2. In the case of low current, the input voltage of the module is basically equal to the output voltage. At a high current of 10A, the MAX can reach 170mv, which is difficult to avoid, so you have to accept this phenomenon. 3. When using the module, do not touch the input and output ports of the module with your hands or objects with static electricity or low resistance, as this may cause unstable operation of the module. Note: The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
